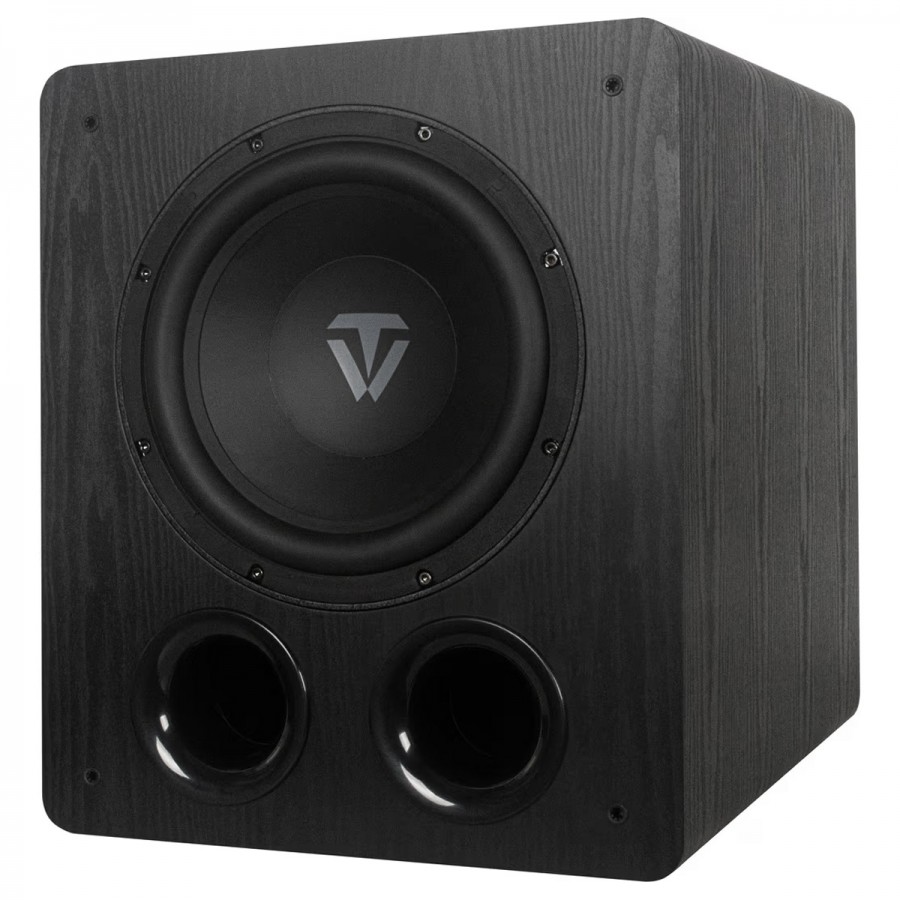

Tonewinner SW-D4000 Active Subwoofer 800W 3 Ohm 16Hz - 240Hz Ø30cm
The Tonewinner SW-D4000 is a bass-reflex-loaded active subwoofer. This model features a large 30cm driver, powered by a 800W amplification stage. It also features a DSP for fine-tuning the subwoofer's settings to perfectly match your system and listening room. This SW-D4000 is ideal for a home-cinema installation, delivering deep, punchy bass for total immersion.
Tonewinner SW-D4000: 30cm diameter loudspeaker
The Tonewinner SW-D4000's large 30cm-diameter driver is capable of descending very low and without distortion, to reproduce the bass of your music and films more than convincingly. It features a rigid diaphragm, limiting distortion even when the driver is subjected to considerable deflection..
The 800W amplifier stage ensures powerful, dynamic bass reproduction, enabling the subwoofer to respond effectively to the signal supplied. The SW-D4000 is thus capable of descending without difficulty to a frequency of 16Hz.
Tonewinner SW-D4000: DSP and EQ
To perfectly match your audio system and listening room, the SW-D4000 comes with its own DSP and EQ directly accessible from the back of the cabinet. An LCD screen displays your settings in real time. These settings can also be accessed remotely via Tonewinner's free mobile application. Several predefined DSP modes are available, but you can also go further by customizing the subwoofer's equalization yourself.
Tonewinner SW-D4000: XLR & RCA
The rear of the Tonewinner SW-D4000 features a dual LFE input in unbalanced RCA and balanced XLR formats, as well as an RCA line input and an RCA LFE output. The SW-D4000 is thus capable of integrating into the majority of home-cinema or even HiFi audio systems. What's more, its output allows the association of a second subwoofer.
| 1 | Input voltage selection |
| 2 | Power button |
| 3 | Power input |
| 4 | Fuse |
| 5 | Balanced LFE input |
| 6 | Single-ended LFE input |
| 7 | LFE output |
| 8 | RCA line input |
| 9 | Volume + / Volume - |
| 10 | Mute / OK |
| 11 | Menu |
| 12 | LCD screen |
| 13 | ON/OFF LED |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Active subwoofer |
| Loudspeaker diameter | Ø30cm |
| Amplification type | Class D |
| Power output | 800W |
| Frequency response | 16Hz - 240Hz |
| Phase setting | 0 - 180° |
| Impedance | 3Ω |
| Cabinet material | MDF |
| DSP / EQ | |
| Inputs | 1x LFE XLR 1x LFE RCA 1x RCA line in |
| Output | 1x LFE RCA |
| General | |
|---|---|
| Dimensions | 440 x 533 x 558mm |
| Weight | 33kg |
| Color | Black |
