AIYIMA B2D1496 Class A/B Amplifier Board SanKen1494/3858 2x220W 4 Ohm

AIYIMA B2D1496 Class A/B Amplifier Board SanKen1494/3858 2x220W 4 Ohm

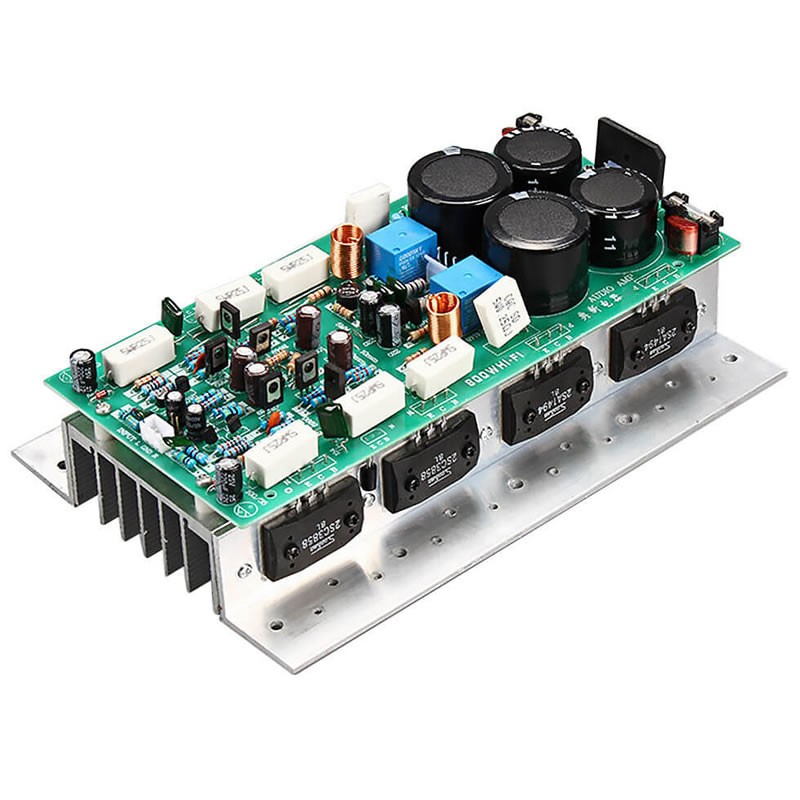

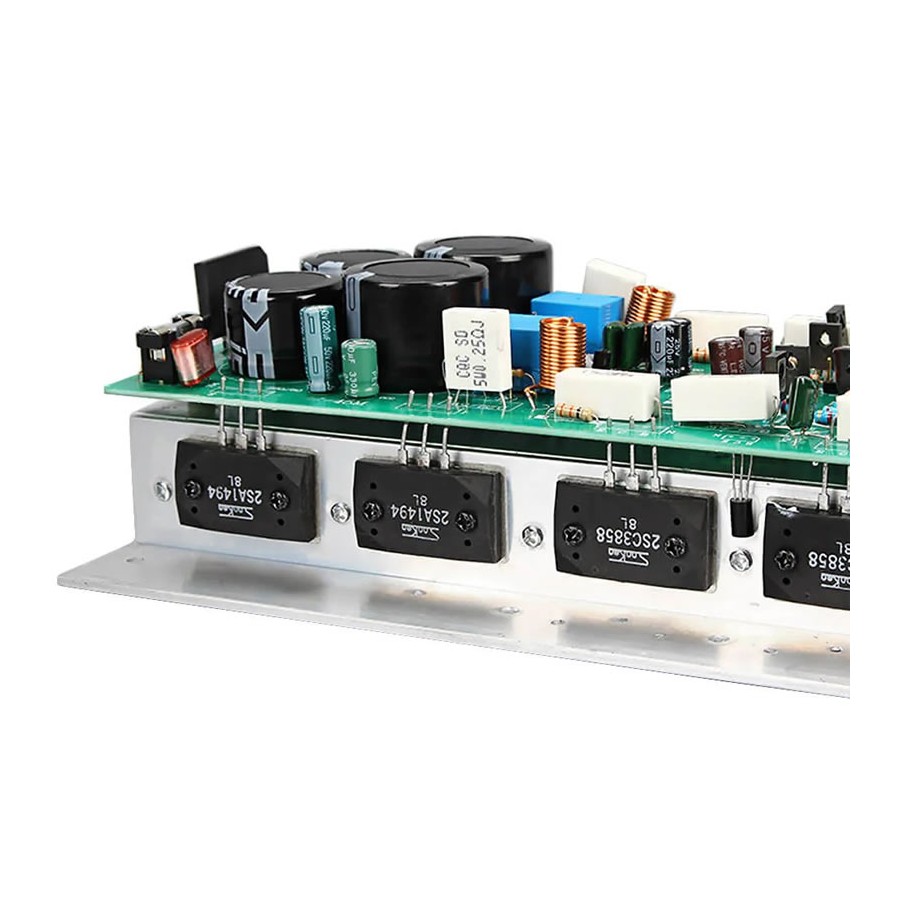

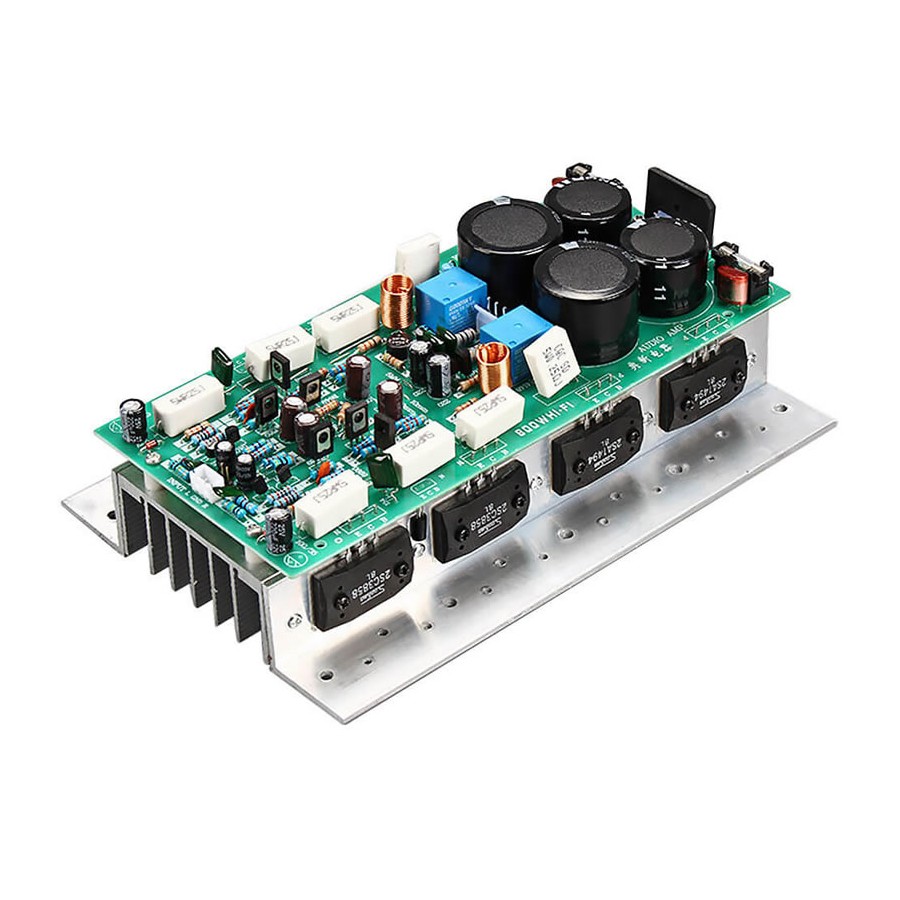

The AIYIMA B2D1496 is a Class A/B amplifier module. It is based on 8 SANKEN transistors, 4x 2SA1494 and 4x 2SC3858, to deliver a comfortable power of 2x220W under 4Ω or 1x400W 4 Ohm in mono mode.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 7 loyalty points


Reference : 17146
New product

75,00 €tax incl.

62,50 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

AIYIMA B2D1496

Class A/B Amplifier SanKen1494/3858 2x220W 4Ω

AIYIMA B2D1496 SanKen1494/3858

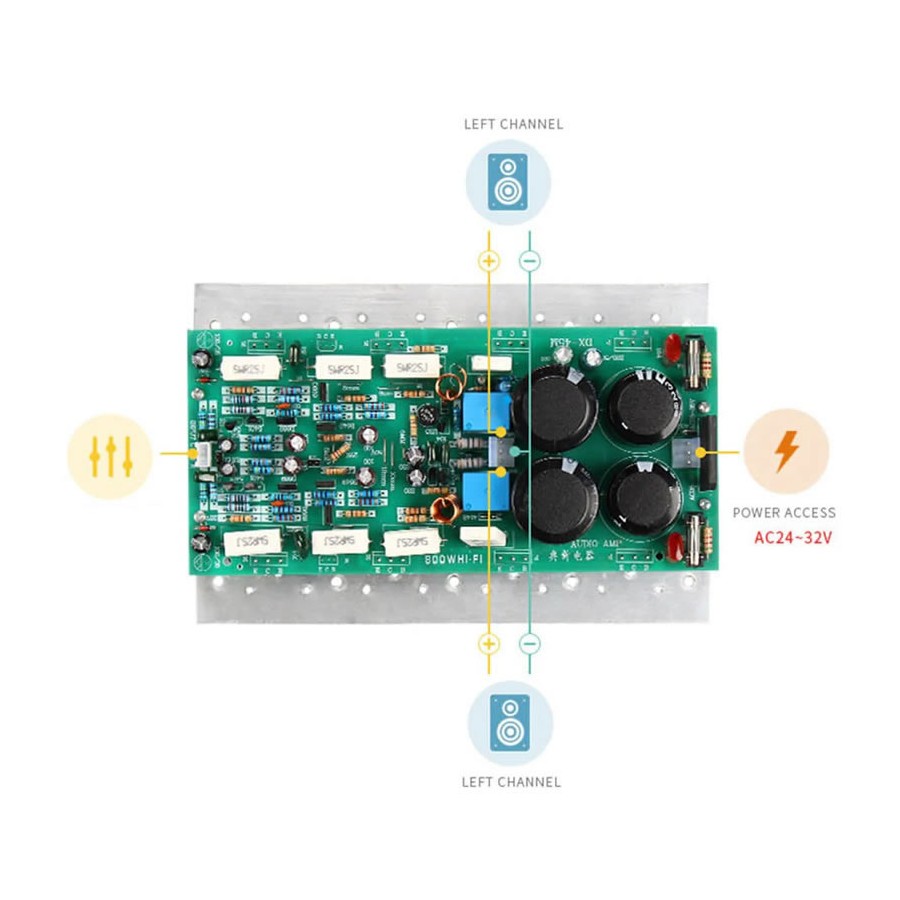

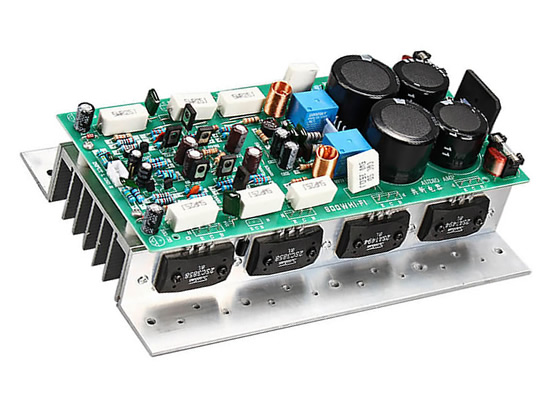

The AIYIMA B2D1496 is a Class A/B amplifier module. It is based on 8 SANKEN transistors, 4x 2SA1494 and 4x 2SC3858, to deliver a comfortable power of 2x220W under 4Ω or 1x400W 4 Ohm in mono mode. It can be powered by 2x AC 24 - 32V, with a toroidal transformer or a power supply offering at least 400W.

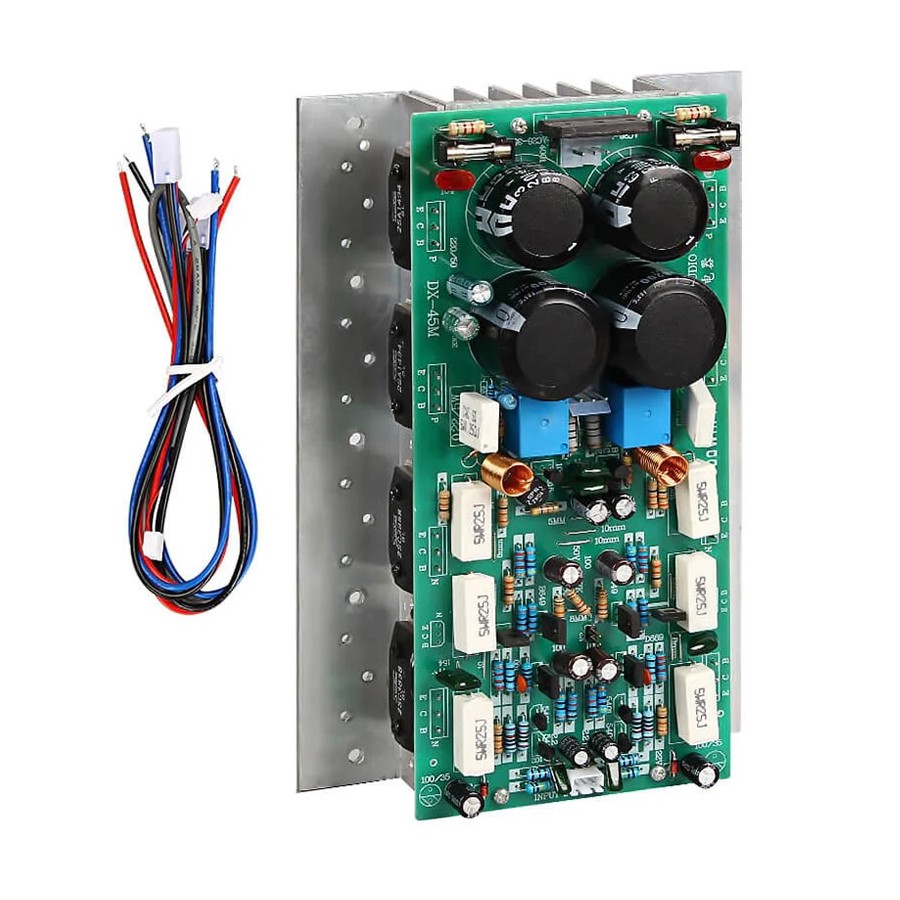

This B2D1496 amplifier module of only 220x145x80mm allows to design a compact and very powerful audio system.

In order to use this amplifier module in mono mode, the K1 and K2 jumpers must be connected.

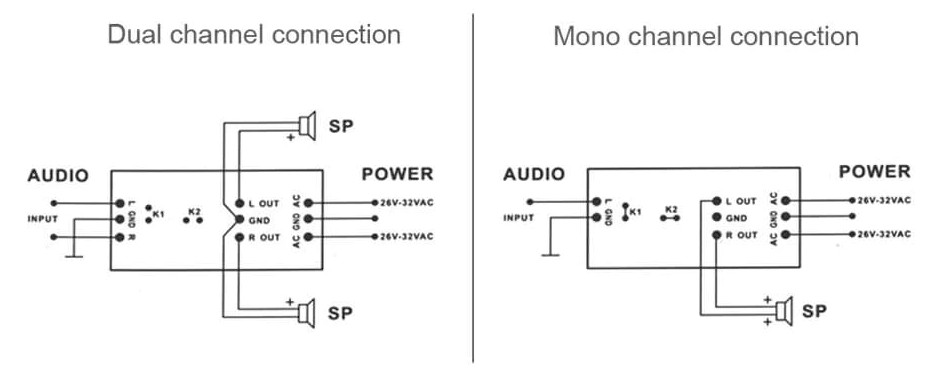

AIYIMA B2D1496 connection diagram

In order to function properly, this amplifier module needs very good heat dissipation with suitable heat sinks.

Technical specifications

Specifications
Type of productAmplifier module
Amplification chips4x SANKEN 2SA1494 / 4x SANKEN 2SC3858
Type of amplifierClass A/B
Power2x 220W / 4 Ohm (with 2x AC 32V)
1x 400W / 4 Ohm (with 2x AC 32V)
Frequency response20Hz - 20kHz
THD0.05%
Input sensitivity800mV
Accepted impedances4 Ohm / 8 Ohm / 16 Ohm
general
Power supply2x AC 24 - 32V
Dimensions220x145x80mm
Package1x AIYIMA B2D1496

Data sheet
InputPCB Connector
OutputPCB Connector
Channel2 (Stereo)
ClassClass A / AB
Amplifier chip2SA1494 - 2SC3858
Power (W)220.0
