Amplifier Module Class D TDA8954 2x 160W 4 Ohm
Viewed products
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

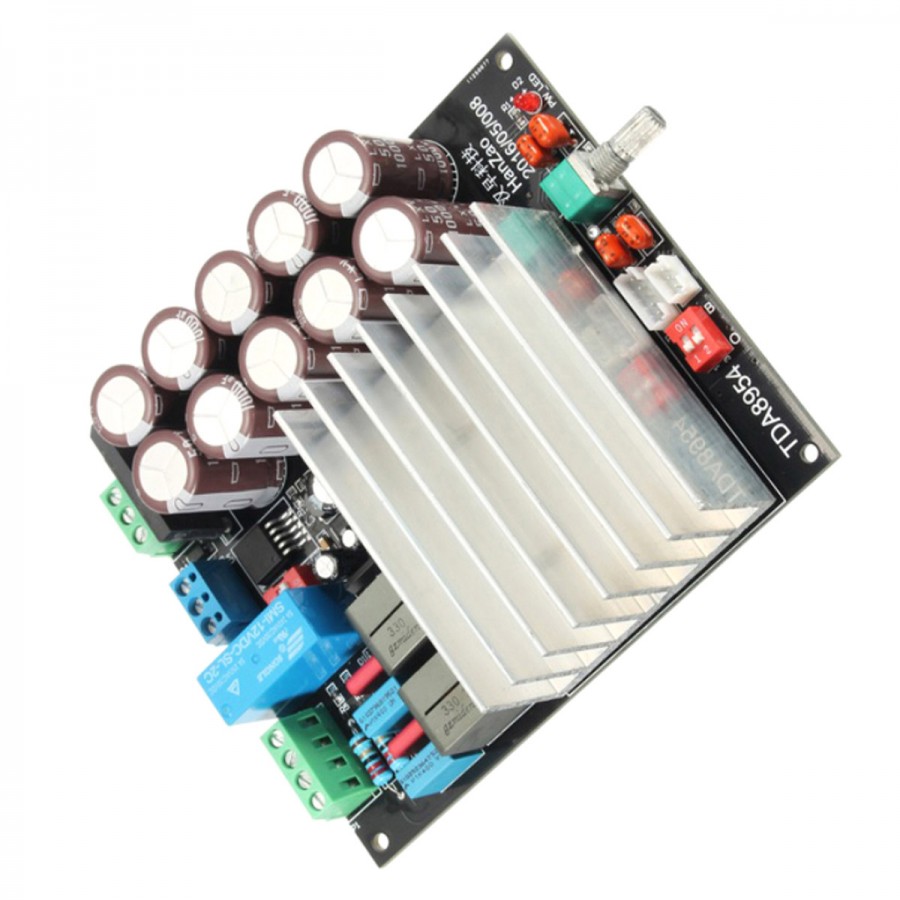

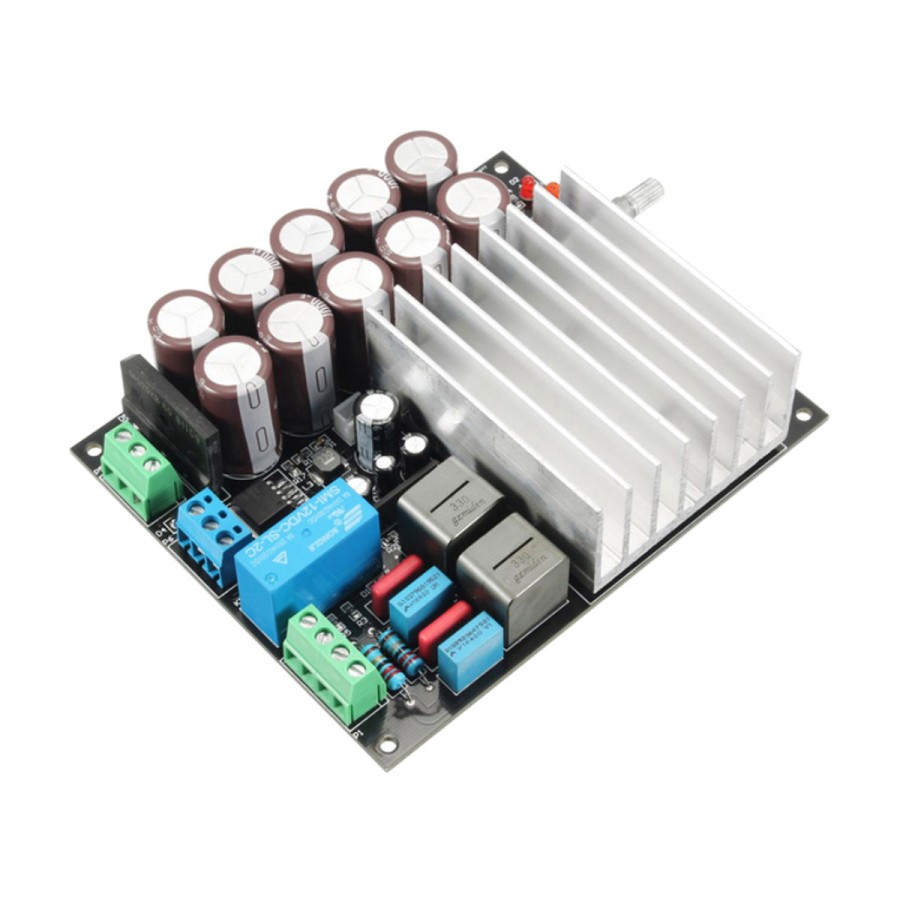

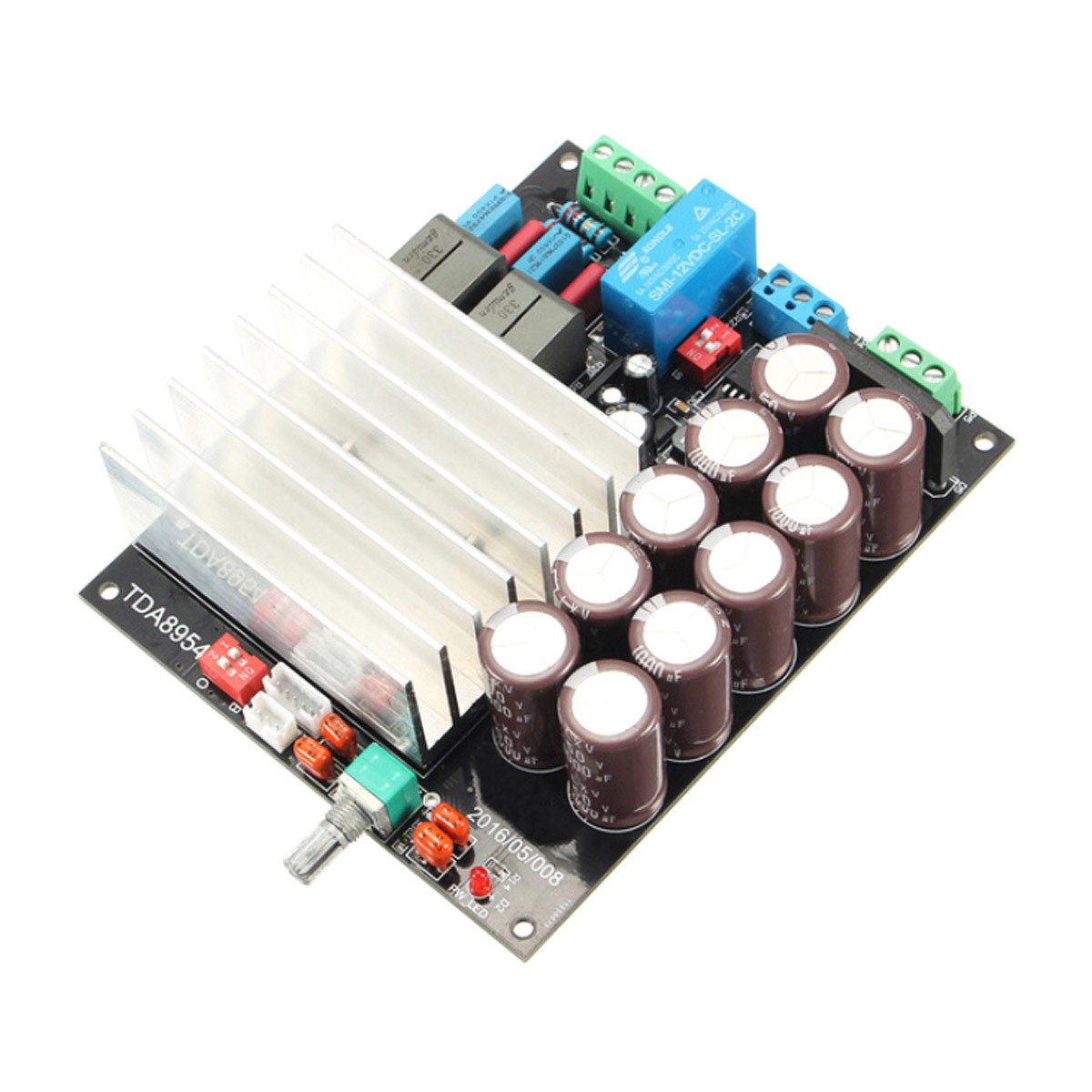

Amplifier Module TDA8954
Class D 2x160W 4Ω
This Class D amplifier module is based on a TDA8954 chip, allowing it to develop a power of 2x160W under 4Ω (THD 0.5%), and this with a high efficiency. This amplifier has the particularity of being able to be powered either in DC or in AC, the selection being made via a DIP switch on the PCB. Another DIP switch allows it to use the module in BTL mode and to deliver a power of 420W (10% THD). A 12VDC output is also present, allowing to supply another audio module.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier module |
| Amplification type | Class D |
| Amplification chip | NXP TDA8954 |
| Output power | 2x 160W @ 4Ω, 0.5% THD BTL : 1x420W @ 10% THD |
| Input | 1x audio input on 3 pins connector |
| Outputs | Speaker terminals 1x 12VDC output |
| Frequency response | 20Hz - 20kHz |
| General | |
|---|---|
| Power supply | 12.5-42.5V DC (35VDC recommended) OR 16-28V AC (24V-0-24V AC recommended) |
| Dimensions | 128 x 105mm |
| Package | 1x TDA8954 Amplifier module 1x 3 pins XH cable to bare wires Spacers and screws |
| Input | PCB Connector |
| Output | Speaker terminal |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TDA8954 |
| Power (W) | 160.0 |
