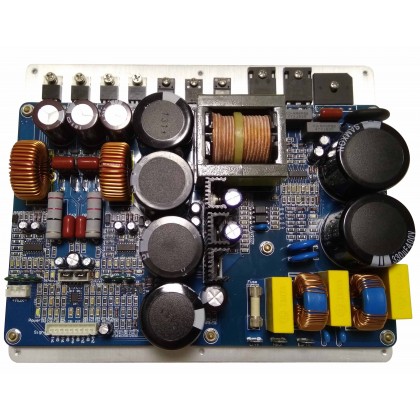

CONNEX IRS2600SMPS Amplifier Module IRS2092S Class D 2x 600W 4Ω
The Connex IRS2600SMPS amplifier module is a powerful Class D stereo module based on the IRS2092S amplifier controller. This high-performance module is capable of delivering 2x 600W at 4 ohms (THD+N<1%) and 2x 350W at 8 ohms (THD+N<1%), all with an efficiency of over 94%.
Additionally, the IRS2600SMPS is equipped with its own SMPS switched-mode power supply, which can be powered by 230V AC (210-245V).
The input stage of this amplifier module features a fully balanced input with 2x 10K impedance, as well as a complete protection package: overcurrent, overvoltage, undervoltage, overtemperature, speaker DC component protection, click/pop-free start and stop.
The IRS2600SMPS benefits from a compact form factor and aluminum base for efficient heat dissipation. This module lets you create a powerful, high-performance DIY project.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier module |
| Amplification class | Class D |
| Amplification controller | IRS2092S |
| Input | 1x Balanced input on PCB connector |
| Outputs | 1x Balanced output on PCB connector 1x AUX output on PCB connector |
| Output power | 2x 600W @ 4 ohm (THD+N<1%) 2x 350W @ 8 ohm (THD+N<1%) |
| Gain | 32.65dB |
| INput sensitivity | 1.5V RMS for 600W/4ohm |
| INputr impedance | 20K |
| Damping factor | > 300 |
| Frequency response | 20Hz-18kHz |
| Linearity | > 1.5dB and 3dB from 16Hz to 22kHz |
| Protections | Overcurrents Overvoltages Undervoltage Thermal protection DC enclosure protection Anti-POP |
| Amplifier output | > 94% @ 4Ω > 96% @ 8Ω |
| SMPS Power supply efficiency | > 94% @ 50% load |
| Global efficiency | 90% @ 4Ω 91% @ 8Ω |
| General | |
|---|---|
| Power supply voltage | 230VAC (210-245V) |
| Dimensions | 165 x 200 x 60mm |
| Weight | 1.52kg |
| Package | 1x CONNEX IRS2600SMPS amplifier module |
| Input | PCB Connector |
| Output | PCB Connector |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | Infineon IRS2092 |
| Power (W) | 600.0 |
