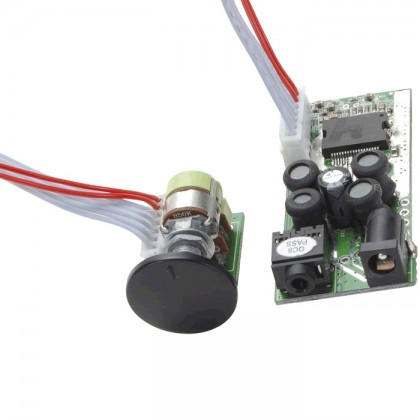

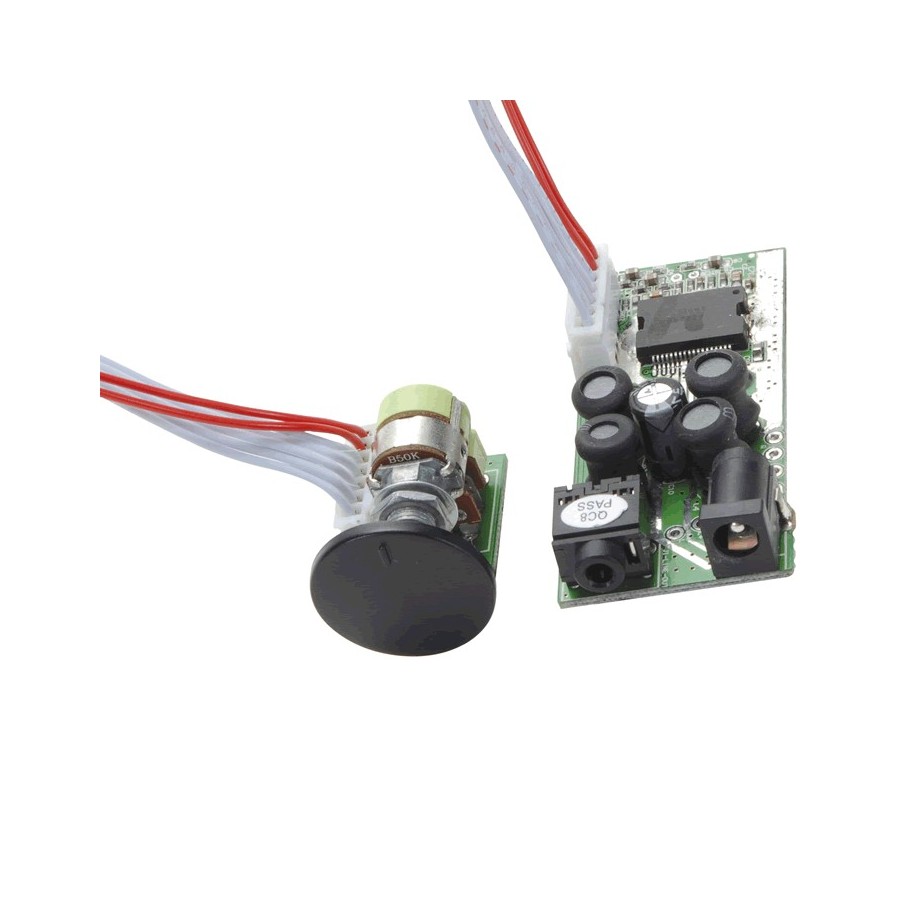

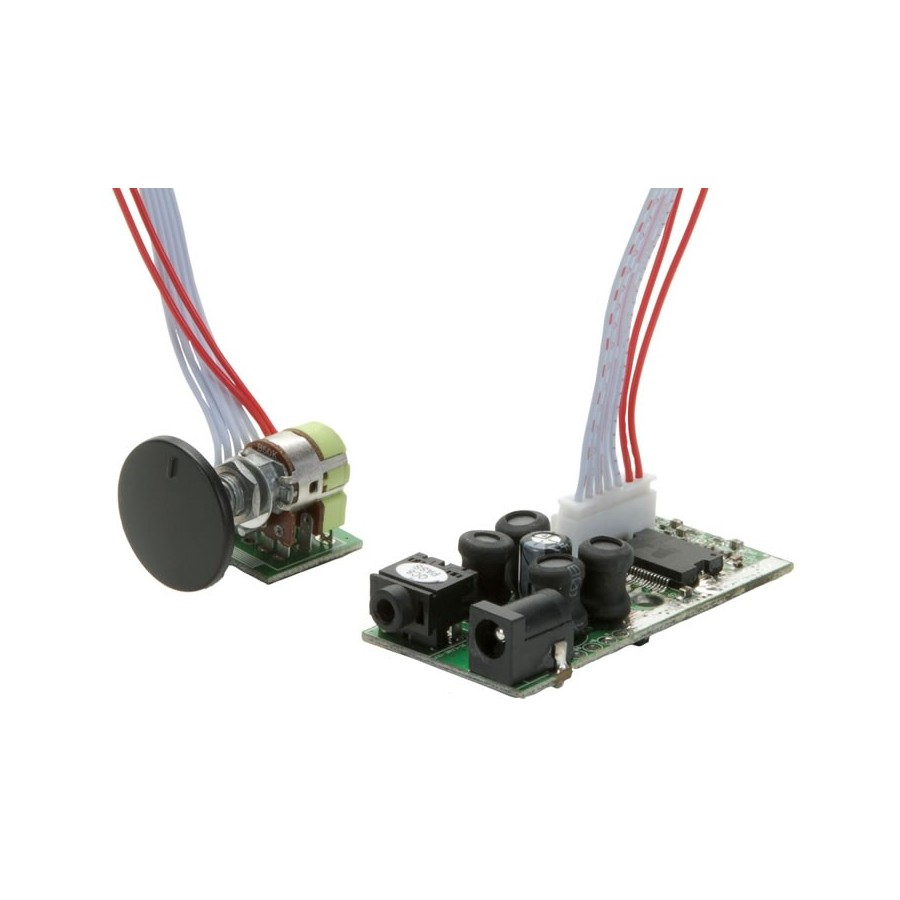

Class T amplifier module

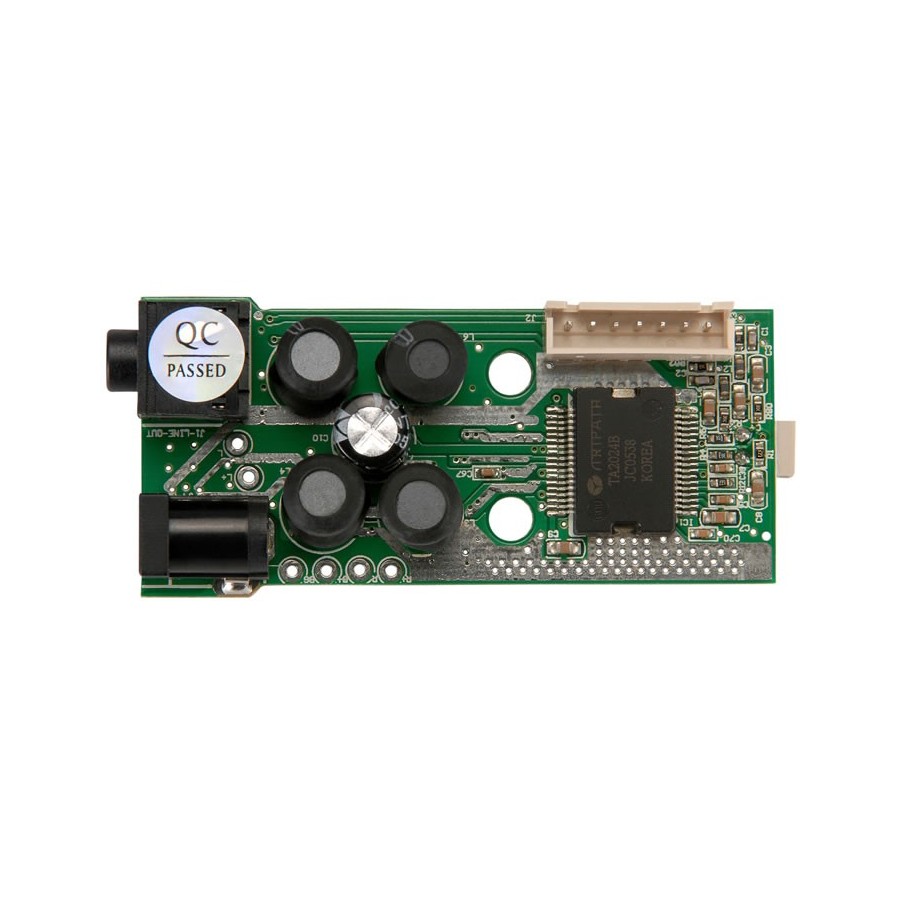

This class T amplifier module operates with a Tripath TA2024.chip
Its high electrical efficiency (81% @ 15W - 4Ω) and small size make it an ideal component for a compact and powerful audio application.

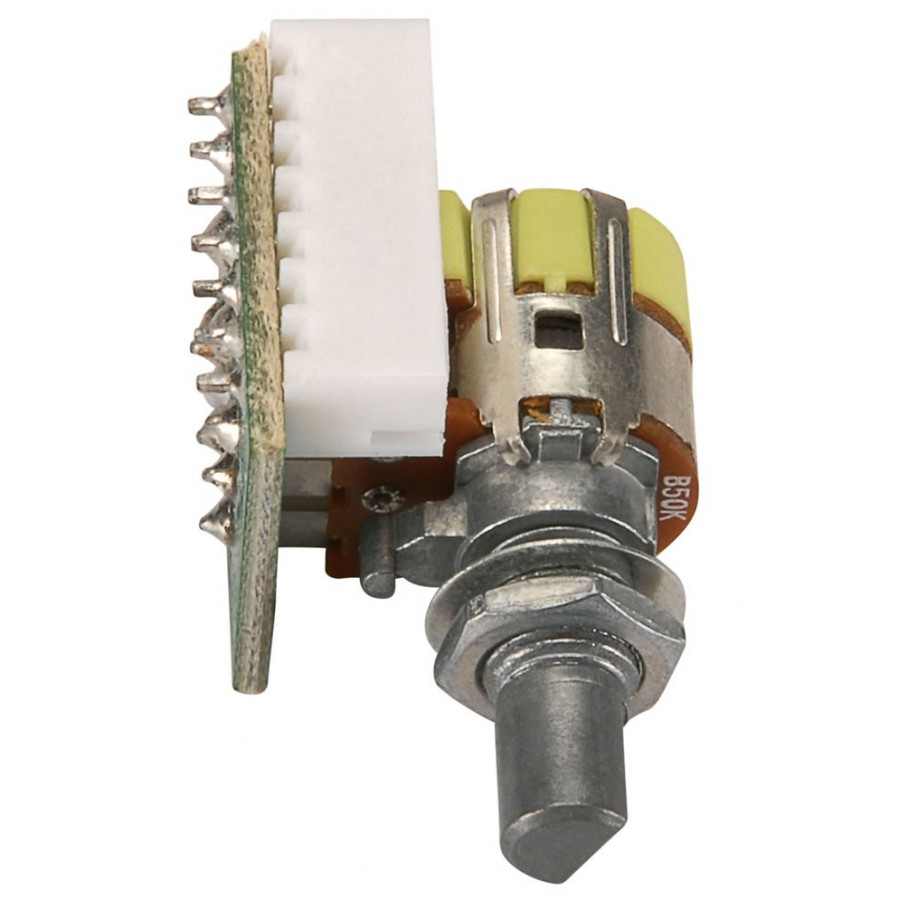

The card has a volume control function thanks to a potentiometer mouned on its own pcb (included).
The potentiometer, when placed in minimal position, also works as a switch that can turn the device on/off.

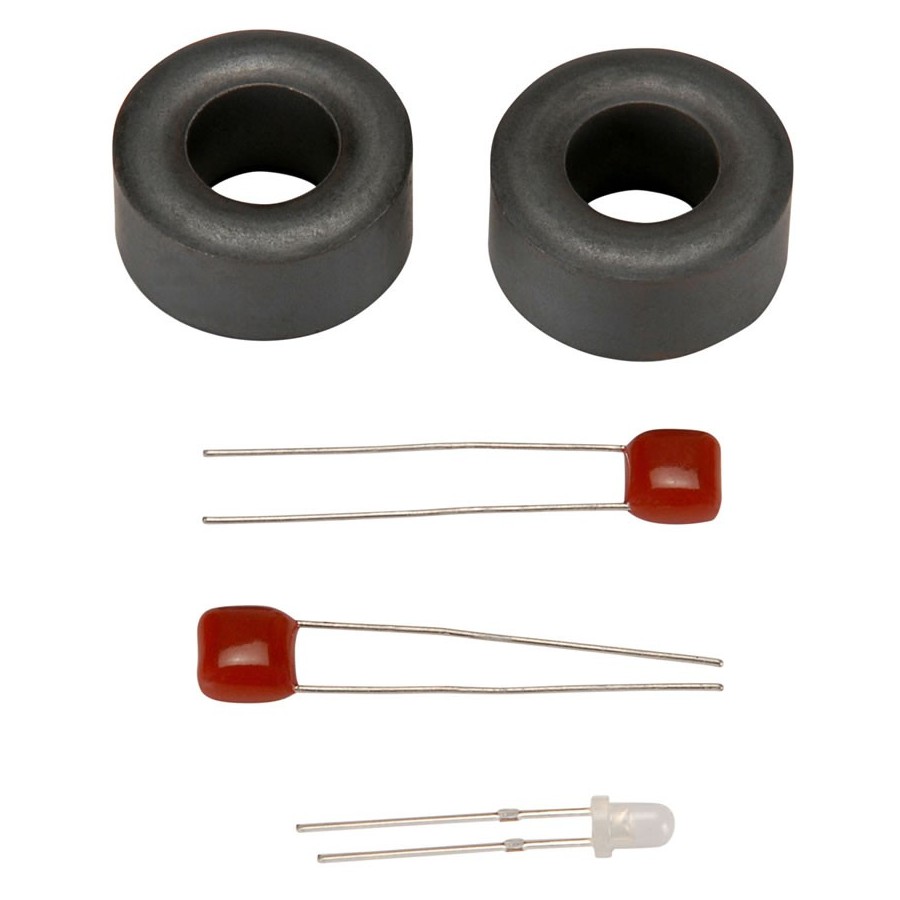

All basic connector is supplied with the module. The cables, LED, output filter capacitor and even ferrite cores to protect the signal from interferences.
| Specifications | |
|---|---|
| Type | Amplification module |
| Class | T |
| Canals | x2 |
| functions | Amplification Volume Control ON / OFF switch |
| Power | 2x 11W @ 4Ω, 8Ω 6W (0.1% THD + N) 2x 15W @ 4Ω, 8Ω @ 10W (10% THD + N) |
| Efficiency | 81% @ 15W, 4Ω 90% @ 10W, 8Ω |
| Dynamic | 98dB |
| protections | Overcurrent Overheated |
| Power supply | 12V DC 2A / NOT PROVIDED |
| Package Contents | |
|---|---|
| PCB amplifier module | x1 |
| PCB Volume Control | x1 |

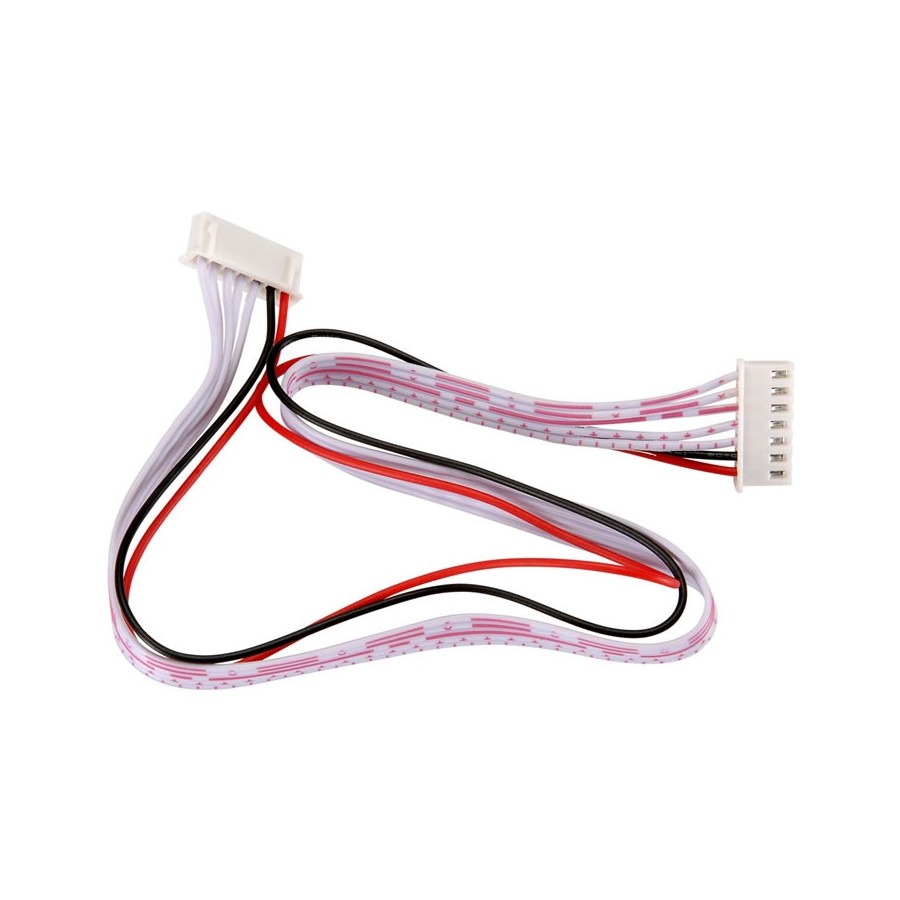

| Cable to volume connection - 30cm | x1 |
| LED status indicator | x1 |

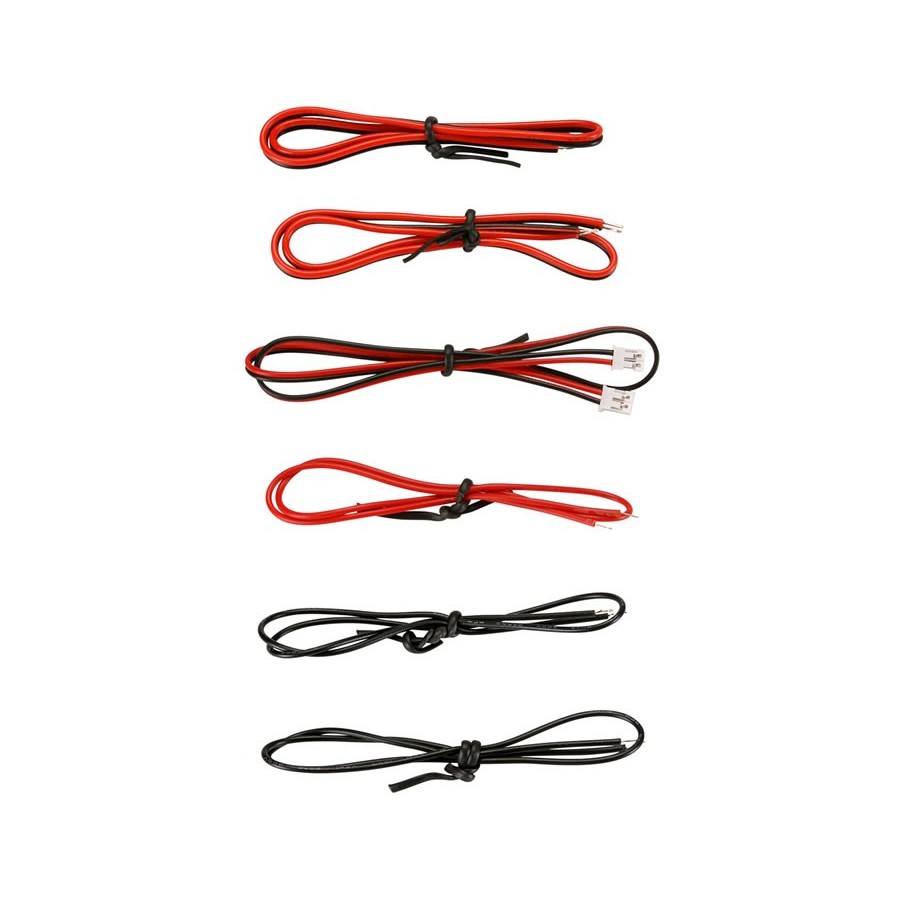

| Speaker cables (bare wire / black and red) - 30 cm | x2 |
| Power Cables (naked wire / black and red) - 30 cm | x2 |
| Cables LED (naked wire / black and red) | x2 |
| Capacitors | x2 |
| Ferrite cores | x2 |
