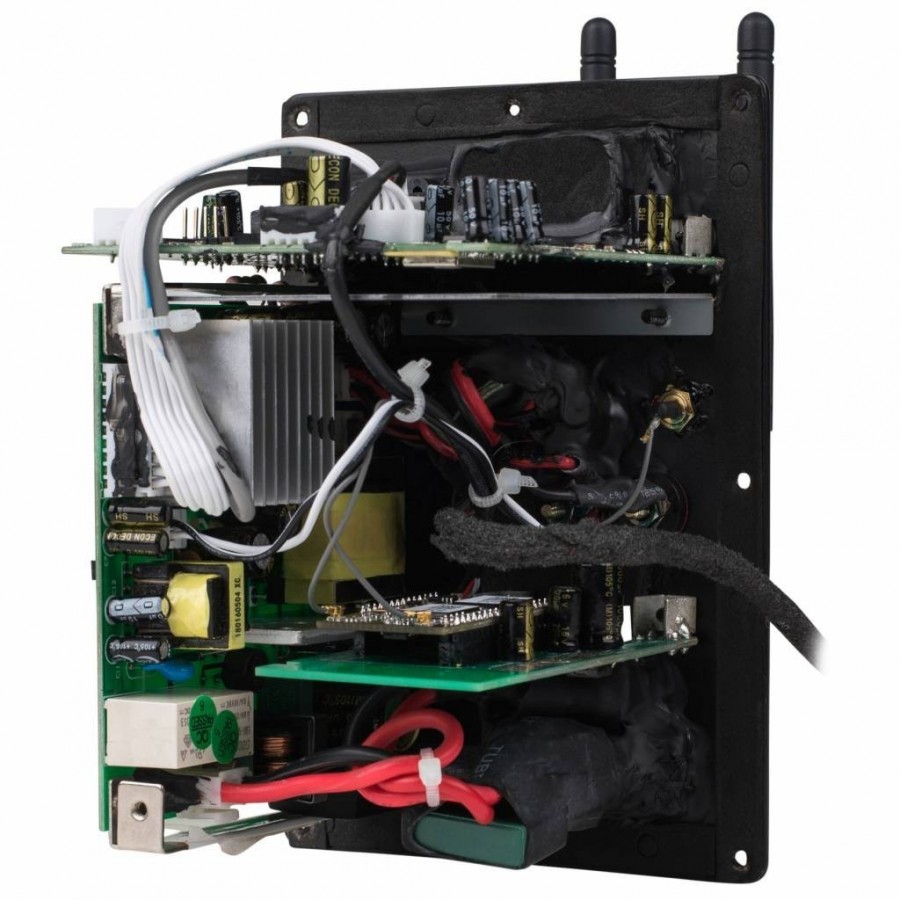

DAYTON AUDIO WF60PA Wireless multiroom plate amplifier 60W / 8 Ohm

The 60W Dayton Audio WF60PA Wi-Fi Class D 60W Wi-Fi amplifier module is relevant in many ways. It can perform high fidelity wireless Wi-Fi and Bluetooth BT4.0 aptX reception functions.

It enables the design of high quality active mono or stereo wireless speakers (via its loudspeaker terminal block). Thanks to the possibilities of its free Android and iPhone application, the Dayton Audio WF60A adapts perfectly to any type of interior integration. Applications offer the option of multiroom synchronized playback, allowing music to be played in all rooms at the same time by linking multiple WF60PA.

The classic use aspect is not forgotten with an infrared remote control for the main functions of play pause and volume. The WFA60A module also features classic stereo RCA inputs, a 3.5mm stereo jack input, and a Toslink optical input. In addition, a filtered SUB output allows the connection of an active subwoofer.

Equipped with an advanced Digital DSP in class D, this 2X30 watt amplifier produces a pleasant musical sound with low distortion and high current capacity. all multiroom scenarios from his smartphone or tablet are possible:

• Listen to an audio file simultaneously in all rooms with multiple modules
• Listening in one room or several rooms of your choice
• Listening to several users in their respective room

The advantages of this module are numerous:

• Compatible with WIFI App control and Bluetooth 4.0 with WIFI WPS direct button
• Selection of optical, Bluetooth, Wifi, 3.5mm jack and stereo RCA inputs via remote control
• Remote control of functions: play pause volume, previous and skip in Bluetooth mode
• Auto mute on standby after 15 minutes of idle time
• Mono RCA output for subwoofer subwoofer (fixed 80Hz filter)
• DAC high quality original AKM DAC
• Supplied with an infrared offset for front panel installation

To operate this amplifier requires a DLNA app like iEast.

Wireless inputs:

• Wireless WIFI : Wifi 2.4GHz, Apple AirPlay, DLNA, hi-FLY App compatible
• Wireless Bluetooth : BT 4.0 aptX +EDR A2DP, AVRCP, HFP, et HSP

Ouputs:

• Speaker output on gold-plated screw connectors
• Mono RCA output for subwoofer or subwoofer (fixed 80Hz filter)

Technical specifications:

• Noise signal ratio: 95dB
• WIFI: WPS fast detection compatible
• Bluetooth 4.0 aptX: Average range 10m
• Power: 2x30w 4ohm class D
• Frequency response: 45hz to 20kHz
• 0.4% harmonic distortion
• Diameter plate fixing screw: 1.5cm
• Power supply: 230VAC /50hz

Dimensions and Weight:

• Dimensions : Lx l xP : 160mm X 115mm X104mm
• Weight: 1kg

Bundle :

• 1x amplifier WF60PA
• A screw-on WIFI antenna
• An infrared remote control
• Infrared offset

THIS PRODUCT IS NOT SUITABLE FOR WALL OR CEILING MOUNTING!

Requires a flush-mounting box with heat release
