FSDD 120L Dual Differential Stereo Amplifier Class A/B 2x120W 4 Ohm

Average votes for this product
4.5 / 5
  Based on 11 customers reviews.

By buying this product you get 6 loyalty points


Reference : 12223
New product

69,90 €tax incl.

58,25 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

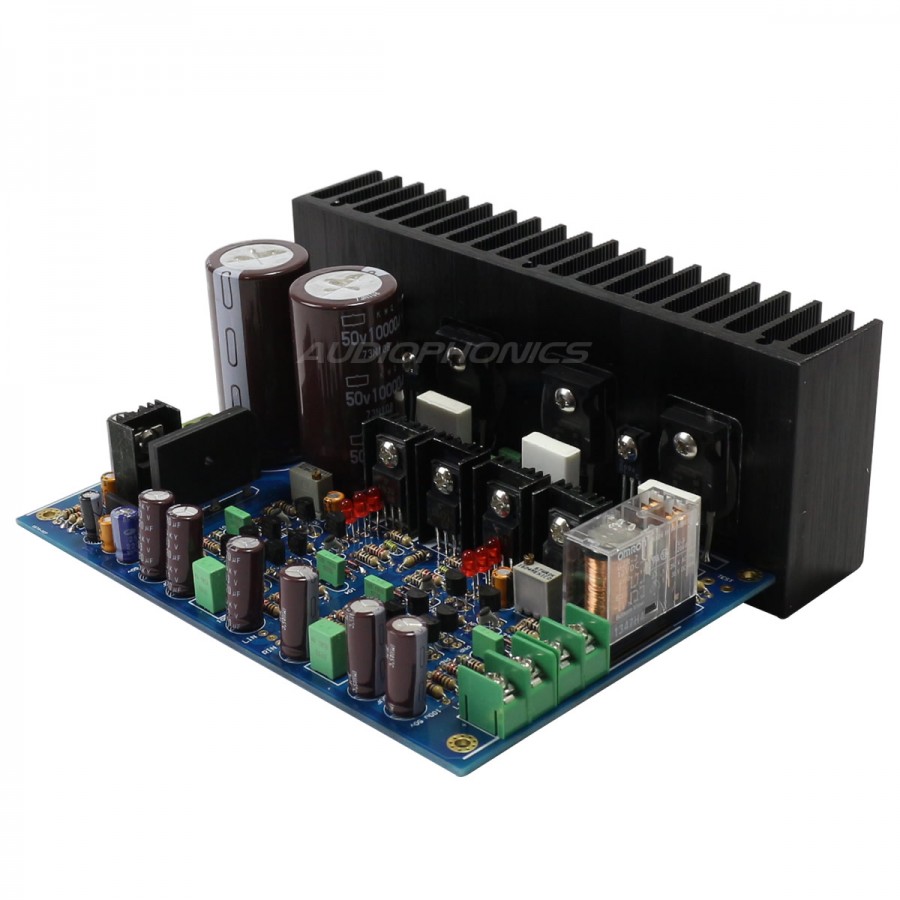

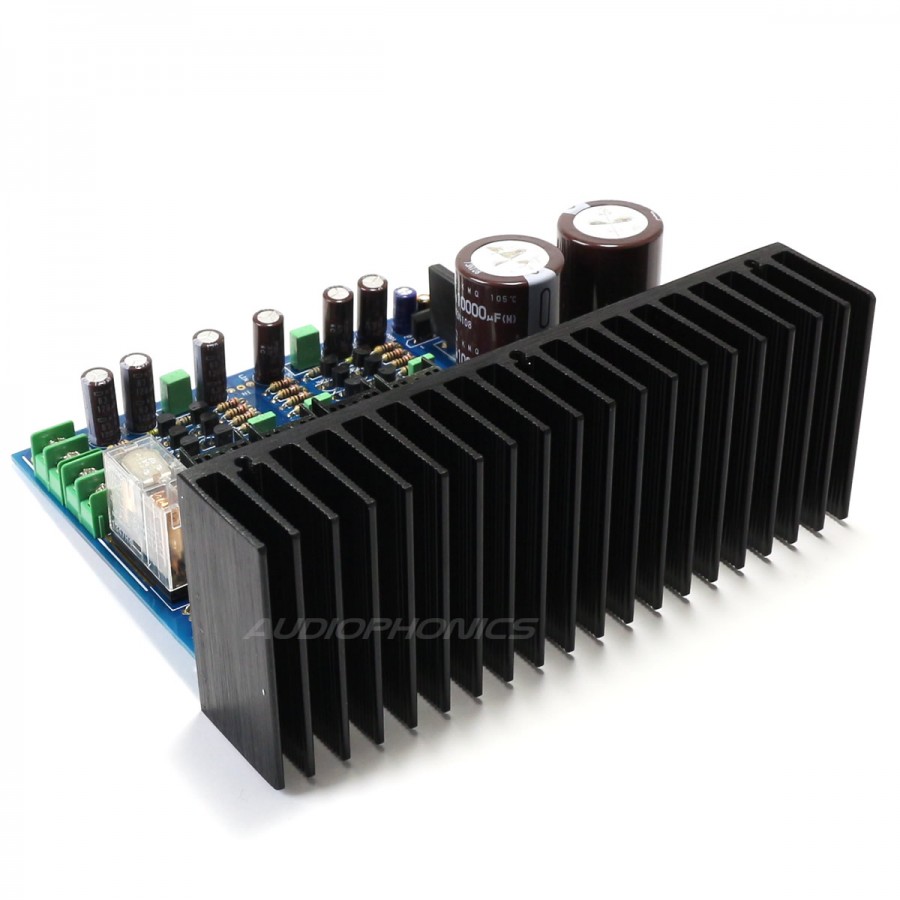

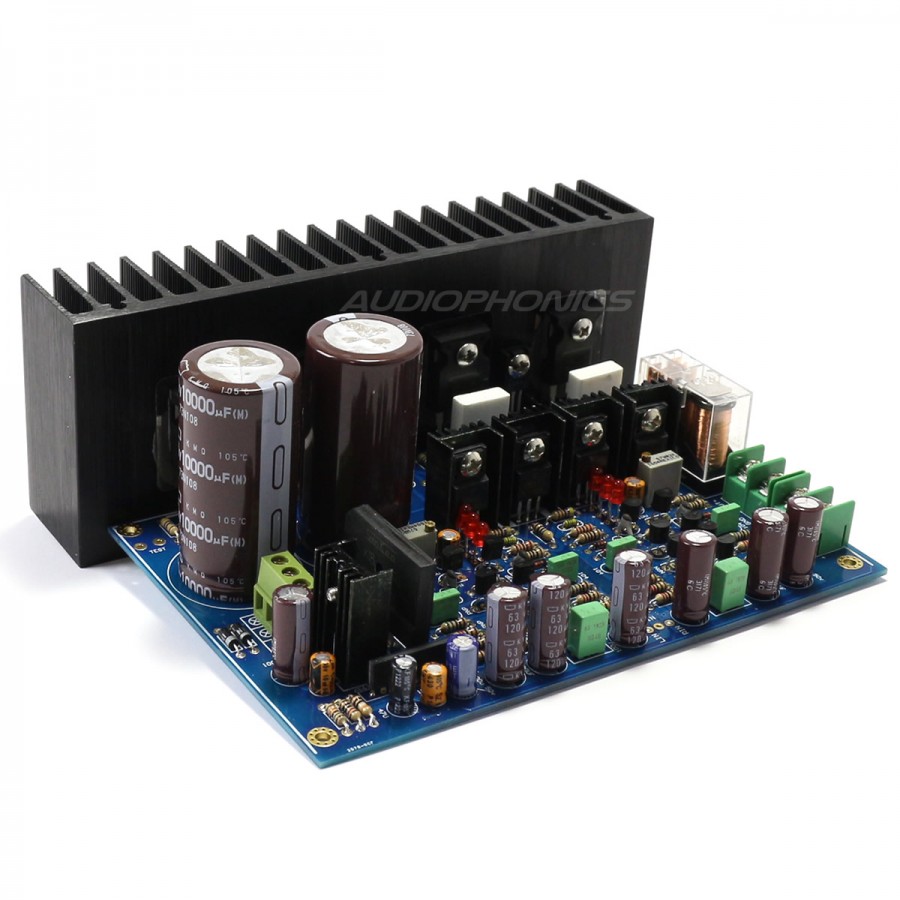

FSDD 120L Dual Differential Amplifier Modules Class AB 2x120W 4 Ohms

This stereo amplifier is designed on the basis of transistors known as FET IRFP240 / IRFP9240. It is based on a legendary scheme of double-differential type. Thus, it proves to be an excellent choice for any DIY amplifier creation project, for passive or active speakers. It is in fact a slightly modified version of amplification module FSDD120, with the difference that it integrates a radiator on the MOSFETs.

It works with Class A / B amplifiers and provides output power of 2x120W at 4 ohms. It can be used for many audio systems, ensuring high-quality sound reproduction.

Due to its original layout and its classic drive stage NPN and PNP, designed in pure discrete transistor without any stage amplifier integrated AOP, it will provide dynamic, timbre accuracy and a breathtaking sound image.

TECHNICAL CHARACTERISTICS

  • Output Power: 2x120W / 4 Ohm
  • Power supply: 30VAC  (approx. 300VA)
  • Frequency range: 4Hz-3dB, 350kHz-3dB
  • Bridge rectifier Sanken 50A
  • 2x Capacitor 50V 10000uF
  • Amplifier Type: Class A / B
  • Omron UPC 1237 relay with DC protection
  • Integrated heatsink on power transistors
  • Dimensions: 160 x 132 x 63 mm
  • Mounting hole spacing: 139 x 88 mm
  • Weight: 460g

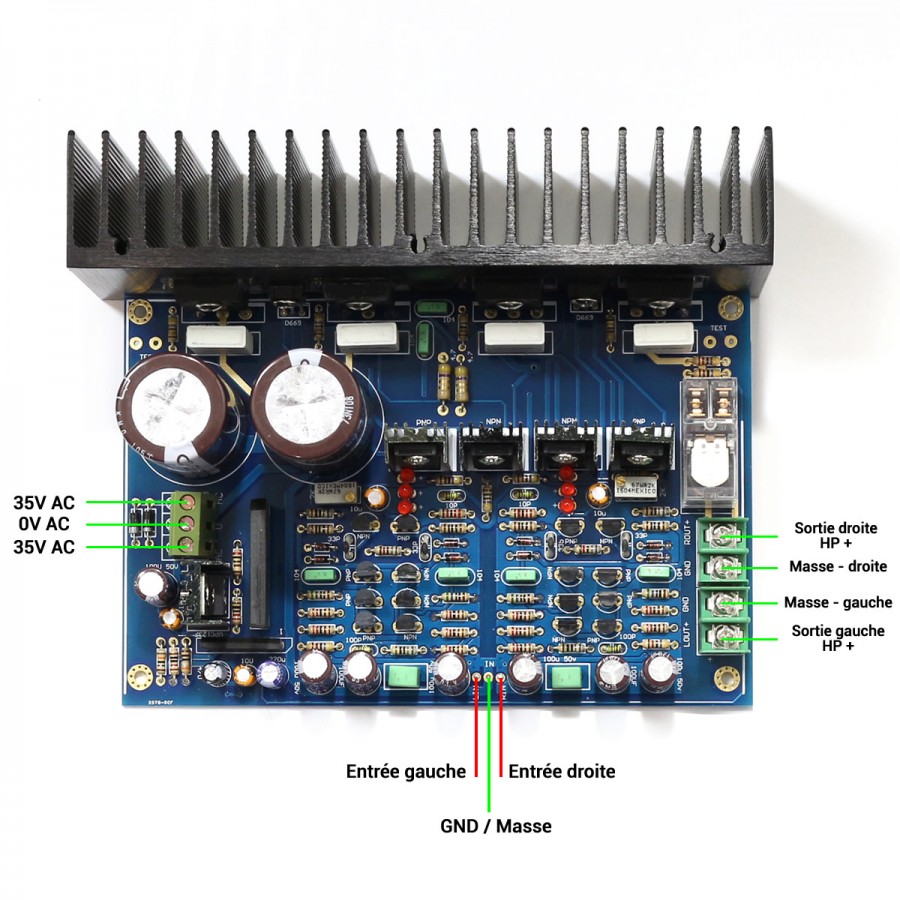

PCB FSDD 120L Amplifier


Data sheet
InputSolder pad
OutputScrew terminals
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipTransistors
Power (W)120.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
