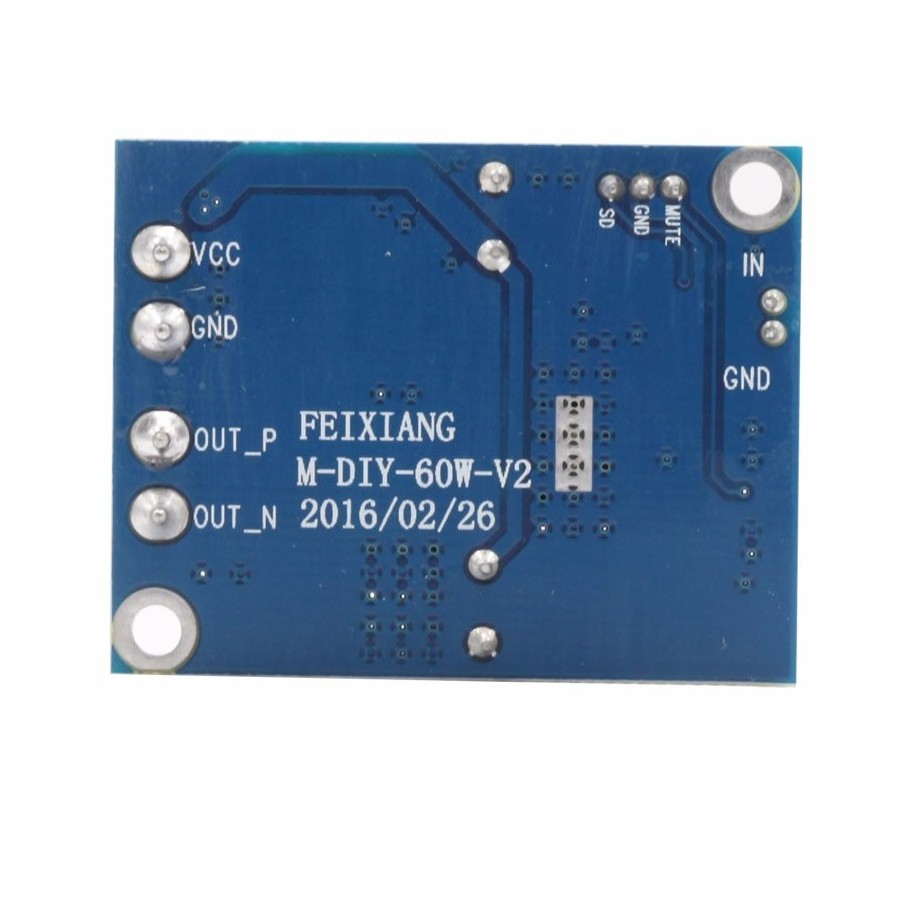

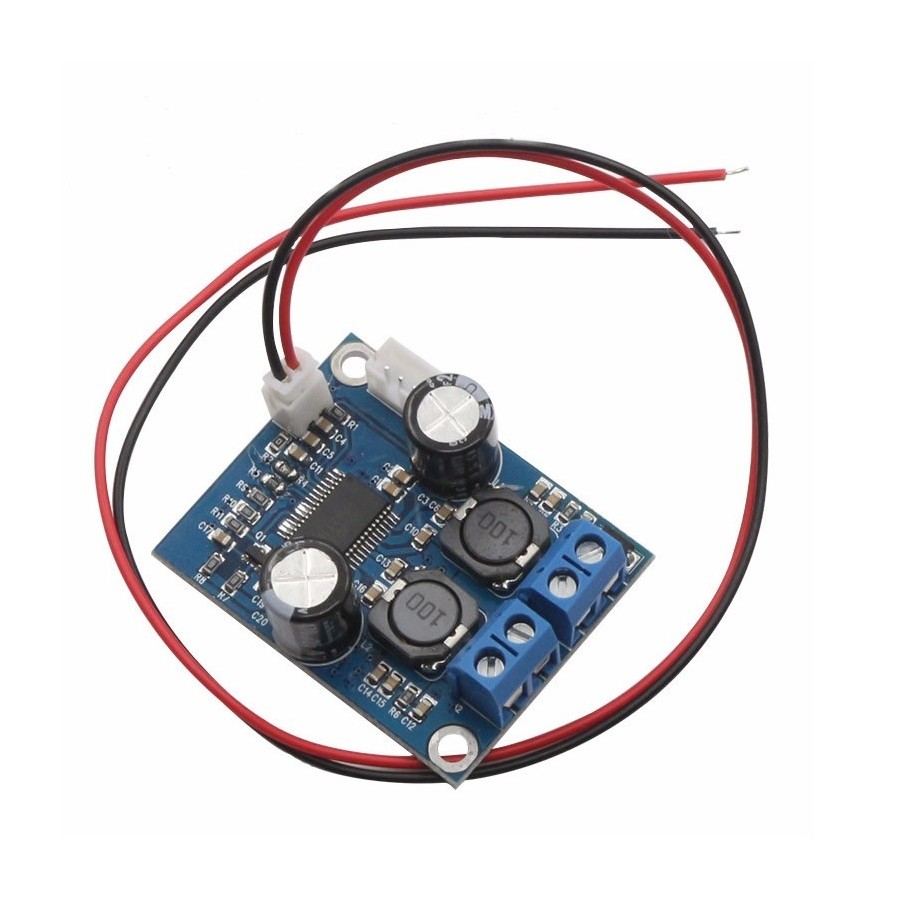

FX-AUDIO M-DIY-60W TPA3118 Amplifier board Class D Mono 60 Watts 4 Ohms

Average votes for this product
4.5 / 5
  Based on 2 customers reviews.

No loyalty points for this product.


Reference : 12140
New product

6,90 €tax incl.

5,75 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

This product has been replaced by this reference, a Amplifier module Class D TPA3118 Mono.

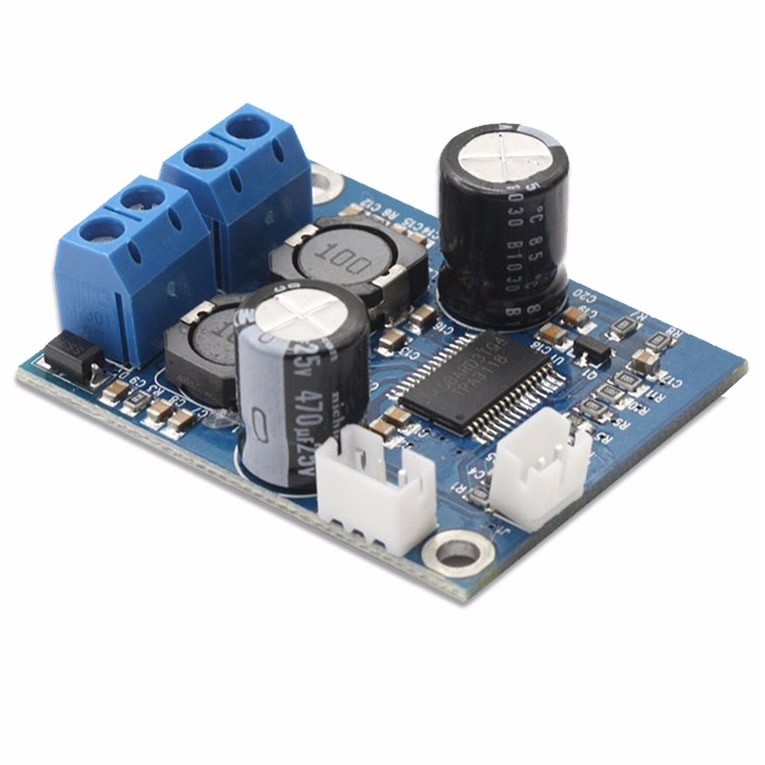

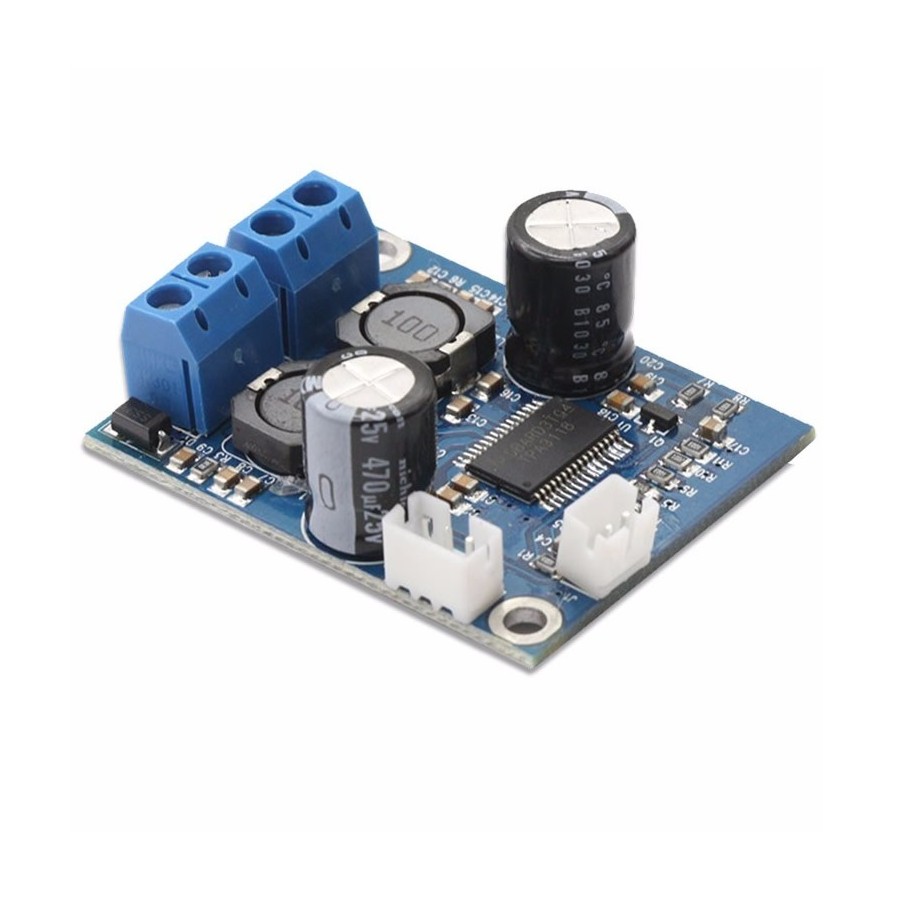

This Mono Compact TPA3118 Class D amplifier module is extremely efficient: it delivers 60W at 4 Ohms and does not require the addition of a heat sink thanks to the design of its PCB.
Ideal for all types of DIY projects, it will easily integrate into your audio systems thanks to its simplified implementation.

Due to its feeding range, it is very practical and easily integrable in many situations.

Characteristics :

  • Amplifier TPA3118
  • Architecture Class D
  • Topology PBTL
  • Excellent audio quality

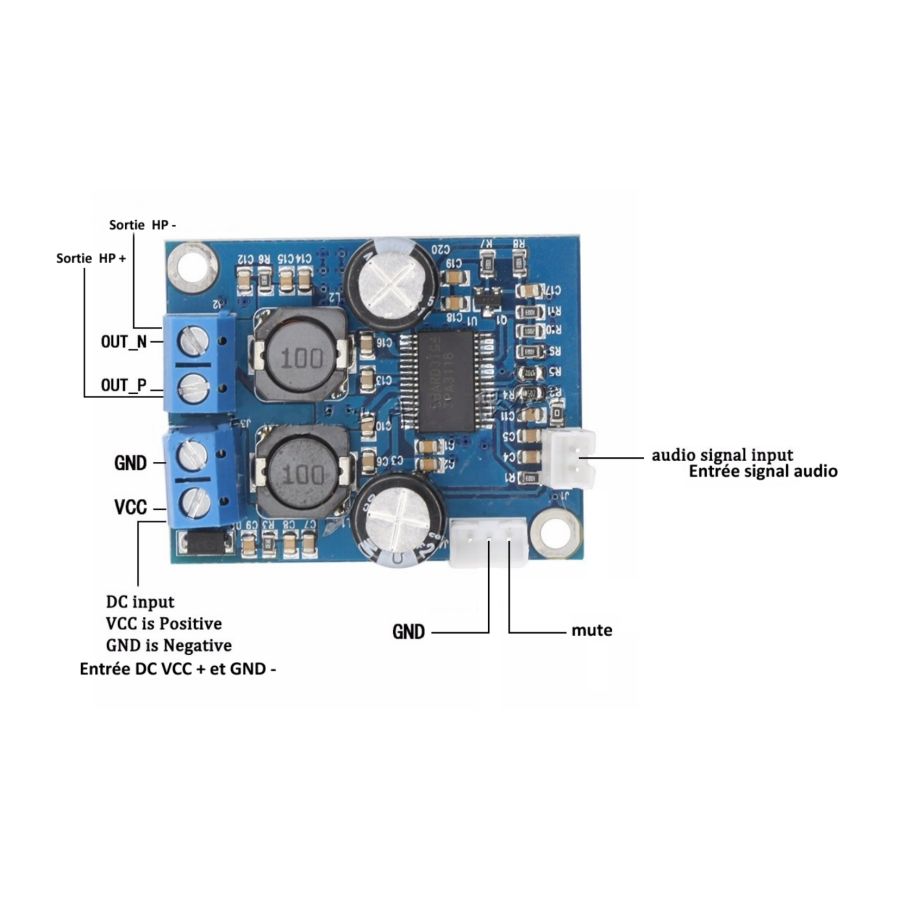

  • Line level input (2VRMS) on screw terminal block
  • Over Current and Overtemperature Protection
  • Power: 45 @ 4 ohm (<0.1% THD + N), 60W @ 4 ohm (<10% THD + N)
  • Input Impedance: 30K ohm
  • Input Sensitivity: 1.18Vrms
  • Frequency response: 20Hz - 20kHz to +/- 3dB
  • Operating Temperature Range: 0 to 50 ° C
  • Yield: 91% to 21V
  • Power supply via screw terminal block: from 9 to 24VDC (21V recommended)
  • Dimensions: 44X35mm
  • Weight: 52g


Data sheet
Channel1 (Mono)
ClassClass D / T

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
4.5 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Electronicien utilisateur ...
Ce petit module permet d'être utilisé avec peu de place et offre des performances plus qu'honorables pour terminer un montage dans des conditions d'écoute déjà puissantes et de qualité . Son absence de gros radiateurs est un gain de place appréciable . Une notice plus détaillée serait la bienvenue ainsi que l'utilisation du " mute " ? Mention bien !
 (1)
 (0)
This review has been posted for FX-AUDIO M-DIY-60W TPA3118 Amplifier board Class D Mono 60 Watts 4 Ohms
Note :
 4/5
Date :
très bon petit module
livraison rapide, bon produit, facile à mettre en oeuvre.
J'aurais apprécié une documentation plus détaillée, en particulier sur le rôle du connecteur "mute" dont la fiche n'est pas fournie.
 (2)
 (0)
This review has been posted for FX-AUDIO M-DIY-60W TPA3118 Amplifier board Class D Mono 60 Watts 4 Ohms
