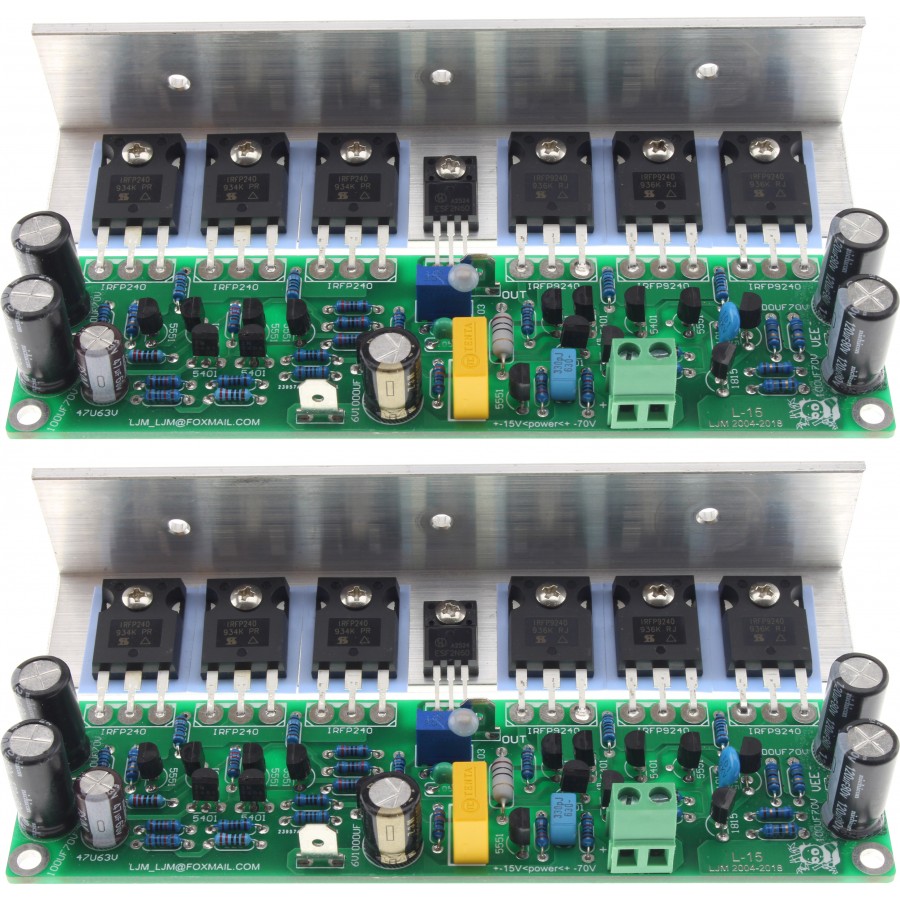

LJM L15 Mono Amplifier Modules (Pair)
LJM's L15 is a dual mono amplifier module kit, each delivering 150W under 8Ω. These are based on 3 IRFP240 MOSFETs and 3 IRFP9240 MOSFETs used in a Class AB architecture. These modules support power supplies ranging from ±15V to ±70V. Each of the two modules is delivered attached to an aluminium plate, ready to be fixed within an enclosure.
No customer reviews yet, login to write a review.
By buying this product you get 5 loyalty points
Reference : 19971
New product
![[GRADE S] FURUTECH DPS 4.1 Power Cable Copper OCC DUCC Alpha Treatment 4.02mm² Ø17mm 60cm](https://www.audiophonics.fr/51565-thumb_default/-grade-s-furutech-dps-41-power-cable-copper-occ-ducc-alpha-treatment-402mm-o17mm-60cm.jpg)
![[GRADE S] FURUTECH DAS-4.1 Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m](https://www.audiophonics.fr/64493-thumb_default/furutech-das-41-balanced-interconnect-cable-occ-ducc-copper-o10mm.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
![[GRADE S] IAN CANADA STATIONPI SMT Raspberry Pi and HAT Boards Adapter Station](https://www.audiophonics.fr/64200-thumb_default/ian-canada-stationpi-smt-raspberry-pi-adapter.jpg)
![[GRADE A] SHANLING EC SMART Lecteur CD Vertical Sanyo DA11 CS43131 Bluetooth 5.4](https://www.audiophonics.fr/64181-thumb_default/shanling-ec-smart.jpg)
LJM L15 Mono Amplifier Modules 150W 8Ω (Pair)
LJM's L15 is a dual mono amplifier module kit, each delivering 150W under 8Ω. These are based on 3 IRFP240 MOSFETs and 3 IRFP9240 MOSFETs used in a Class AB architecture. These modules support power supplies ranging from ±15V to ±70V. Each of the two modules is delivered attached to an aluminium plate, ready to be fixed within an enclosure.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power amplifier modules |
| Power transistors | 3x IRFP240 3x IRFP9240 |
| Output power | 150W @ 8Ω, ±55VDC 300W @ 4Ω, ±55VDC 600W @ 2Ω, ±55VDC |
| Architecture | Class AB |
| Frequency response | 10Hz - 30kHz (-0.05dB) |
| Total harmonic distortion (THD) | 0.02 % @ 150W, 8Ω |
| SNR | > 97dB |
| Voltage gain | 31x |
| Input | 1x Screw terminal |
| Output | 1x Solder pads |
| General | |
|---|---|
| Power supply voltage | ±15V - ±70V DC |
| Dimensions | PCB : 40 x 150mm PCB + Aluminium plate : 74 x 150mm |
| Spacing holes | 138.5 x 28.5mm |
| Weight | 350g |
| Package | 2x LJM L15 |
| Input | Screw terminals |
| Output | Solder pad |
| Channel | Dual Mono |
| Class | Class A / AB |
| Amplifier chip | Transistors |
| Power (W) | 150.0 |
