Class AB Stereo Module Amplifier TDA7377 2x30W 4 Ohm

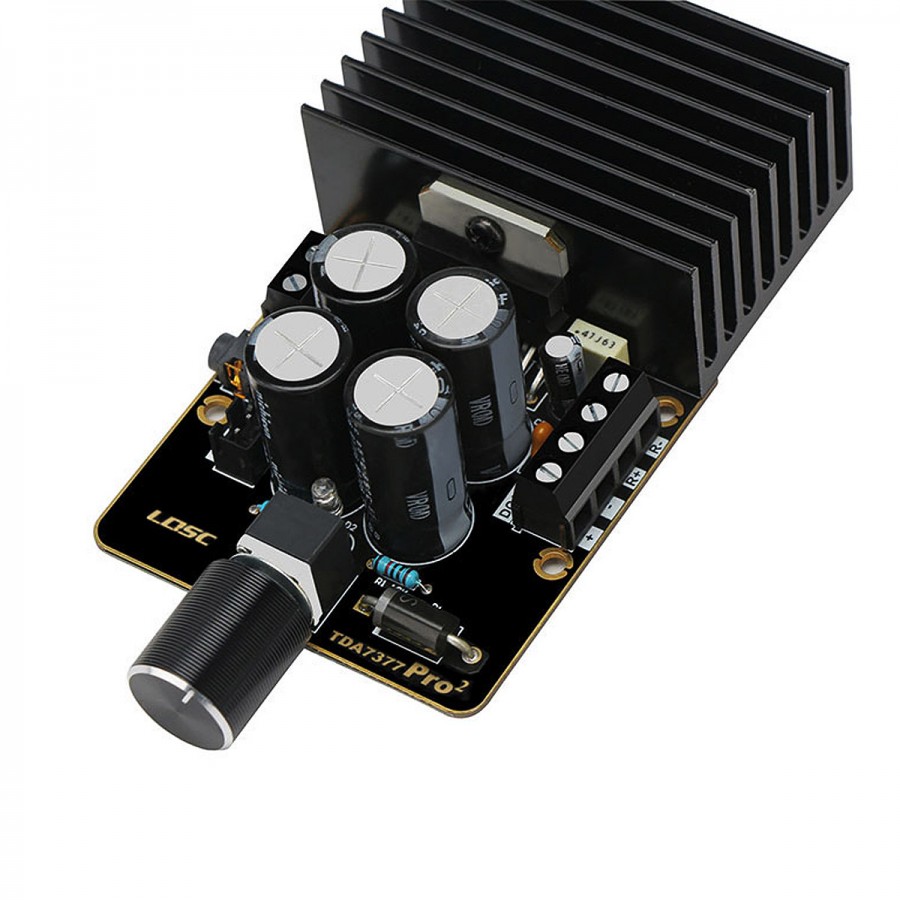

This low-cost yet highly efficient Class AB amplifier module is based on a TDA7377 chip allowing it to develop up to 2x30W under 4Ω. The quality components integrated in this module, such as Nichicon capacitors for filtering or gold-plated contacts, ensure a beautiful sound reproduction. At the input of this module is a 3.5mm jack connector as well as a 2.54mm 3 pin XH connector. At the output, the board simply offers screw terminals to connect to your speakers. The module also includes a rotary knob for volume control.
| Specifications | |
|---|---|
| Product type | Amplifier module |
| Channels | Stereo (2) |
| Amplification chip | TDA7377 |
| Amplification type | Class AB |
| Power | 2x30W @ 4Ω |
| Inputs | 1x Stereo Jack 3.5mm 1x 3 pins XH 2.54mm connector |
| Outputs | Speaker screw terminals |
| Supply voltage | 9-18V DC |
| Protections | Short circuit Over heat Overcurrent |
| PCB dimensions | 58.7 x 55mm |
| Total dimensions | 90.6 x 55 x 26.7mm |
| Fixation holes spacing | 48 x 25.5mm |
| Package | 1x Amplifier module 1x 3 pins XH 2.54mm |
| Input | XH 2.54mm |
| Output | Speaker terminal |
| Channel | 2 (Stereo) |
| Class | Class A / AB |
| Amplifier chip | TDA7377 |
| Power (W) | 30.0 |
