LQSC Class D Stereo Amplifier Module TPA3221

This Class D stereo amplifier module features a TPA3221 chip, capable of delivering 2x85 power at 4 Ohm with 92% efficiency, while guaranteeing clear, detailed reproduction with sub-1% total harmonic distortion. This module also incorporates its own volume control. The amplification chip is topped by a heatsink to efficiently dissipate the heat generated. The module also benefits from a complete protection circuit against overvoltage, undervoltage, overcurrent, overtemperature and short-circuit.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 19062
New product

29,90 €tax incl.

24,92 € tax excl.

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

LQSC AMPLIFIER MODULE Class D Stereo TPA3221 2x85W 4 Ohm

LQSC Class D Stereo Amplifier Module TPA3221 2x85W 4 Ohm : Front view

This LQSC lass D stereo amplifier module features a TPA3221 chip, capable of delivering 2x85 power at 4 Ohm with 92% efficiency, while guaranteeing clear, detailed reproduction with sub-1% total harmonic distortion. This module also incorporates its own volume control. The amplification chip is topped by a heatsink to efficiently dissipate the heat generated. The module also benefits from a complete protection circuit against overvoltage, undervoltage, overcurrent, overtemperature and short-circuit.

On the connector side, input is either via a 3.5mm jack or a 2.54mm 3-pin XH connector. Output is via a screw terminal block.

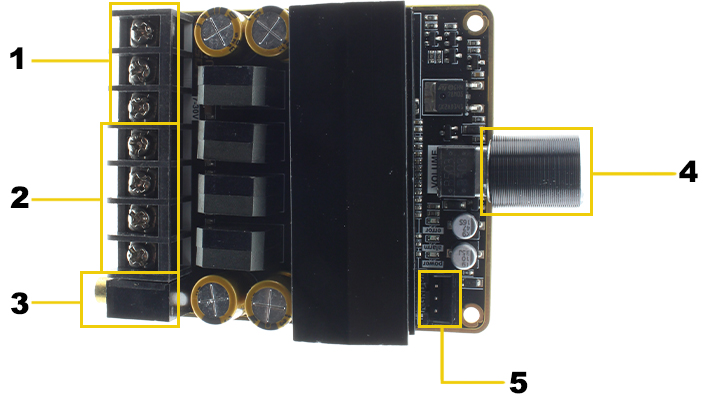

TPA3221 2x85W 4 Ohm LQSC Class D Stereo Amplifier Module Diagram

LQSC Class D Stereo Amplifier Module TPA3221 2x85W 4 Ohm: Diagram
1Module power supply
2Speaker output
3Jack3.5mm input
4Volume control
5XH 2.54mm input

Technical characteristics

Specifications
Product typeAmplifier module
Amplification typeClass D
Amplification chipTPA3221
Inputs1x Jack 3.5mm
1x XH 2.54mm 3 pins
OutputsScrew speaker terminals
Output power2x85W @ 4Ω, 1% THD+N
Efficiency92%
Total harmonic distortion (THD)<1%
Gain34dB
ProtectionsShort circuit
Overcurrent
Overheating
Under voltage
Over voltage
Général
Power supply voltage range7V - 30V DC
Total dimensions80 x 66 x 22mm
Mounting holes spacing58 x 58mm
Package1x Amplifier module
1x XH2.54mm 3 pins cable

Data sheet
InputXH 2.54mm
InputJack 3.5mm
OutputScrew terminals
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3221
Power (W)85
