Amplifier module Mono
TDA7293 1x100W / 4 Ohm

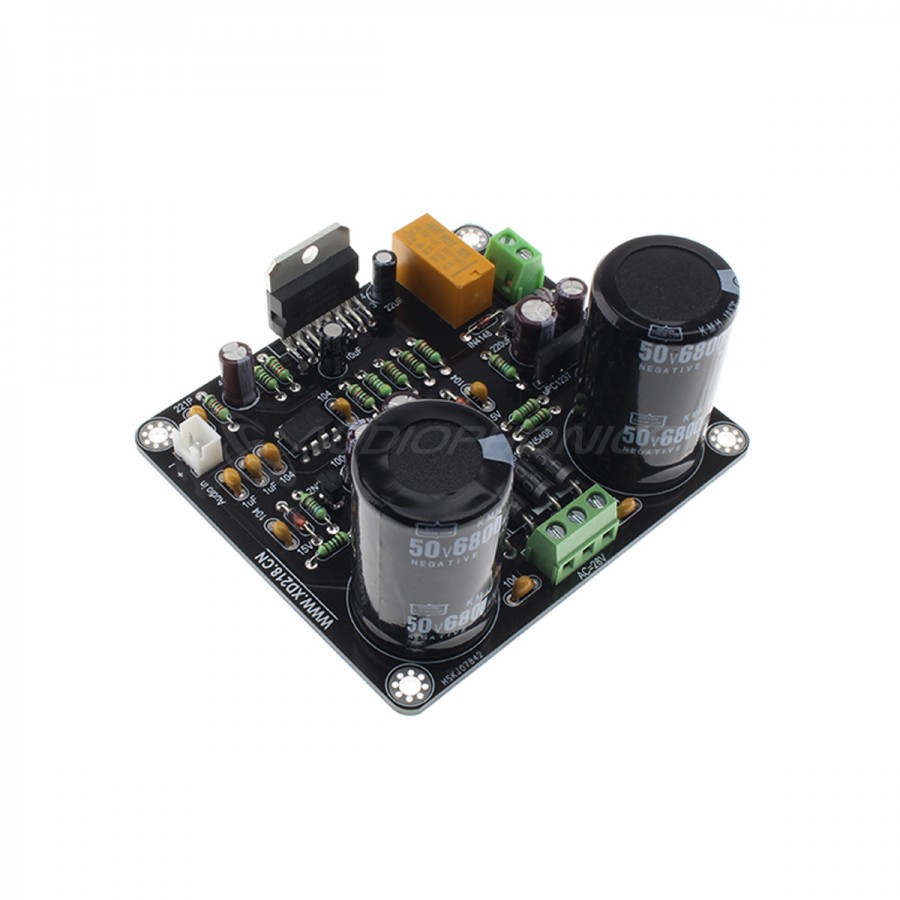

This Mono Amplifier module is based on the use of a high power TDA7293 transistors developed by the Swiss firm ST MicroElectronics.
It is capable of delivering a continuous power of 1x 100W under 4Ω.
The filtering is ensured by 2 electrolytic capacitors 50V Chemi-Con of 5800uF each.
It has a UPC 1237 chip which protects your speakers.
Make sure you have sufficient heat dissipation.
Technical characteristics
| Specifications | |
|---|---|
| Amplifier chip | 1x TDA7293 |
| AOP | LF353P |
| Power supply | 28-0-28 V (AC) |
| Continuous power | 100W / 4 Ohm (10% THD+N) |
| Dimensions | 90x90mm |
| Spacing | 82mm |
| Weight | 120g |
| Package | 1x Amplifier module Supplied with screws (spacers, insulator, etc.) |
| Input | PCB Connector |
| Output | Screw terminals |
| Channel | 1 (Mono) |
| Class | Class A / AB |
| Amplifier chip | TDA7293 |
| Power (W) | 100.0 |
