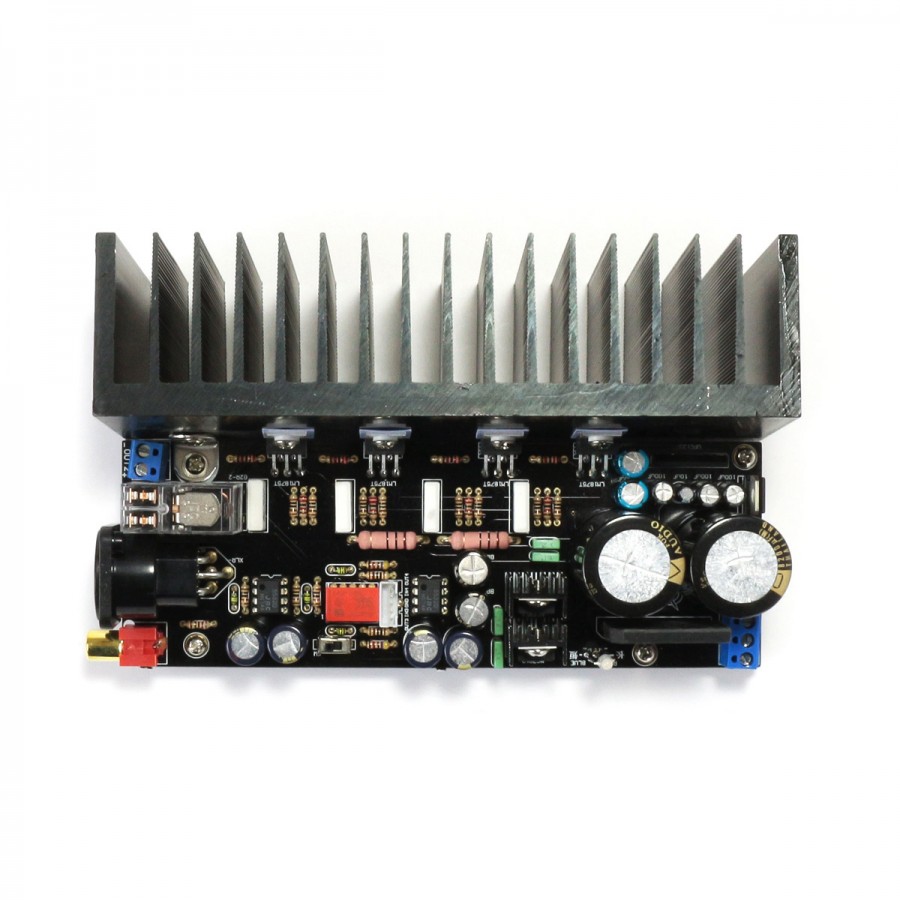

Mono Power Amplifier Modules LM1875 2x80W / 8 Ohm (Pair)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

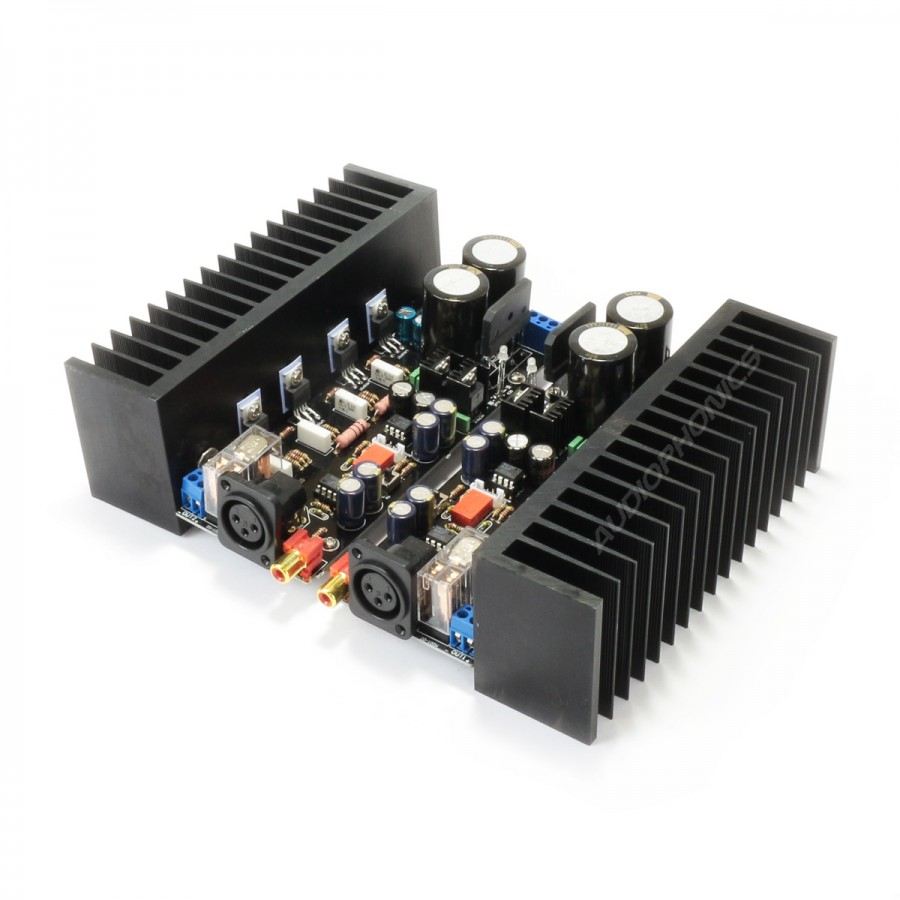

Dual mono amplifier modules LM1875
2x80W 8Ω
Efficient symmetrical design
This amplifier, composed of two mono modules, therefore benefits from a symmetrical architecture. This design allows it to offer excellent audio performance while delivering great power. Moreover, this design also greatly limits crosstalk between the two channels and promotes an aerated sound image.
LM1875 + AOP NE5532D
To provide such performance, each module, and therefore each channel is equipped with 4 LM1875 amplification chips, for a total of 8 amplification chips. With these components, the amplifier is capable of delivering 2x80W at 8 Ohms or 2x120W at 4 Ohms. The modules also carry 2 NE5532D AOPs each, mounted on DIP8.
Quality components
Each module integrates high quality components, contributing to the sound quality of the product. For example, there are ELNA, Panasonic FC capacitors or Omron relays.

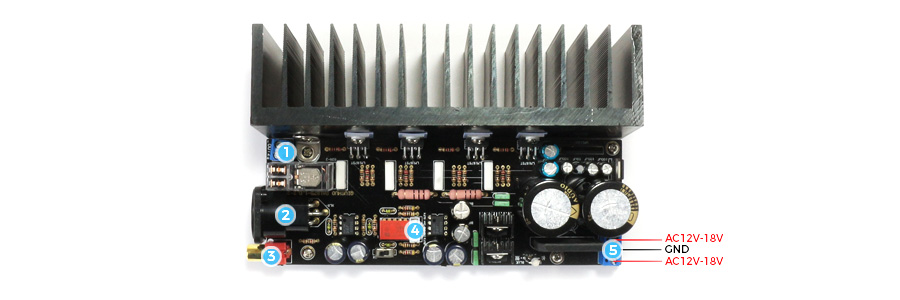

- Speaker terminal
- XLR Input
- RCA Input
- Connector for potentiometer
- Alimentation
Technical characteristics
| Specifications | |
|---|---|
| Power | 2x120W 4Ω 2x80W 8Ω |
| Power supply | AC 12V-18V |
| Inputs | XLR RCA |
| Outputs | Speaker terminal |
| AOP | 2x NE5532D |
| PH2.0 connector for potentiometer | - |
| Dimensions (with heatsink) | 178 x 106 x 61mm |
| Weight | 635g each module |
