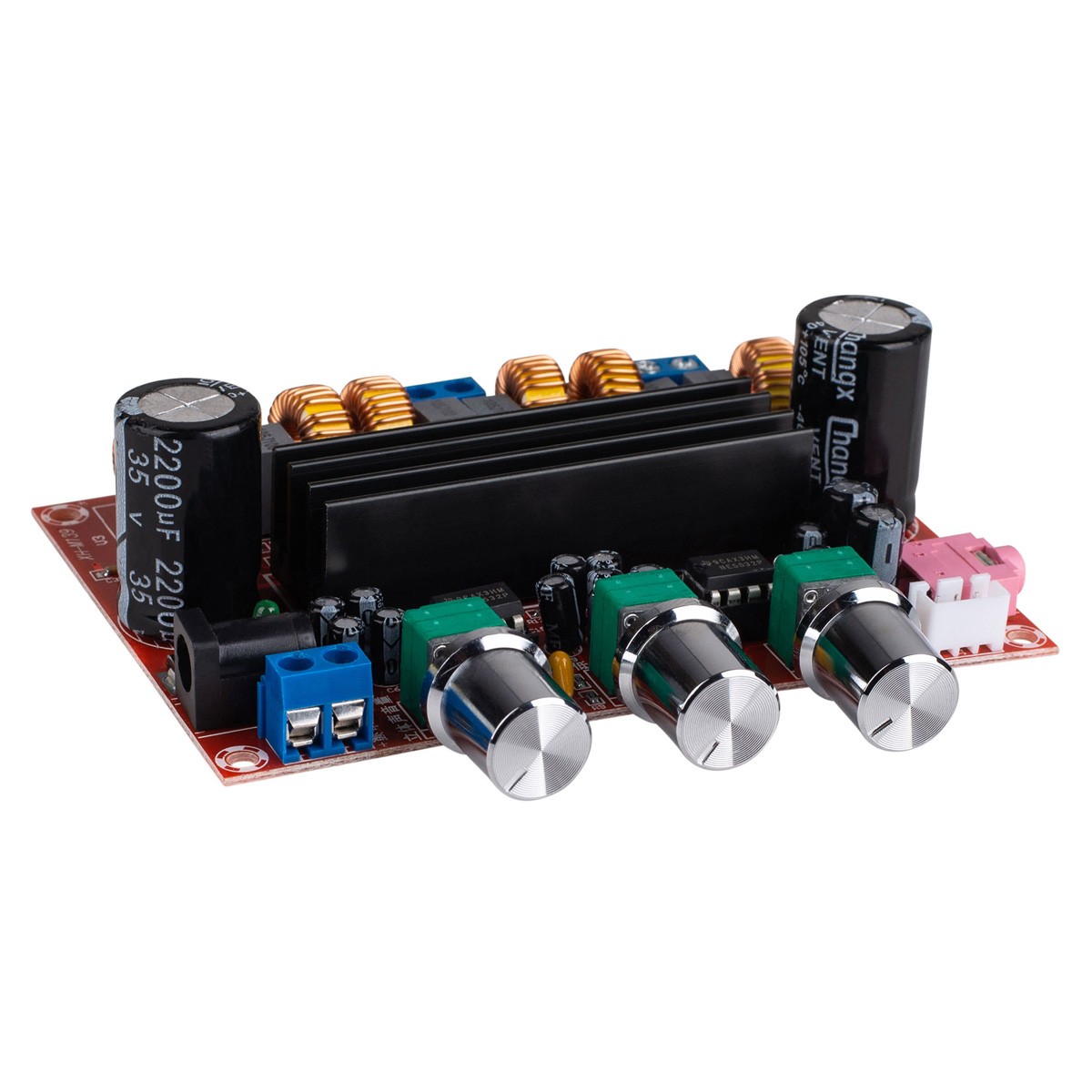

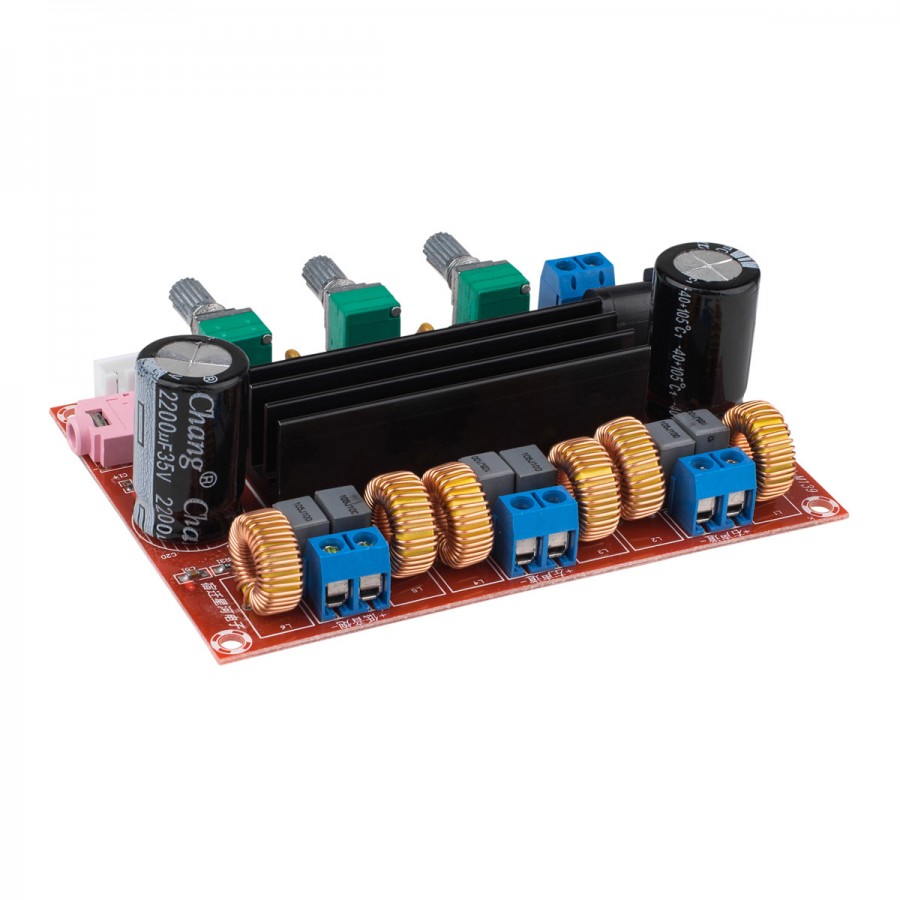

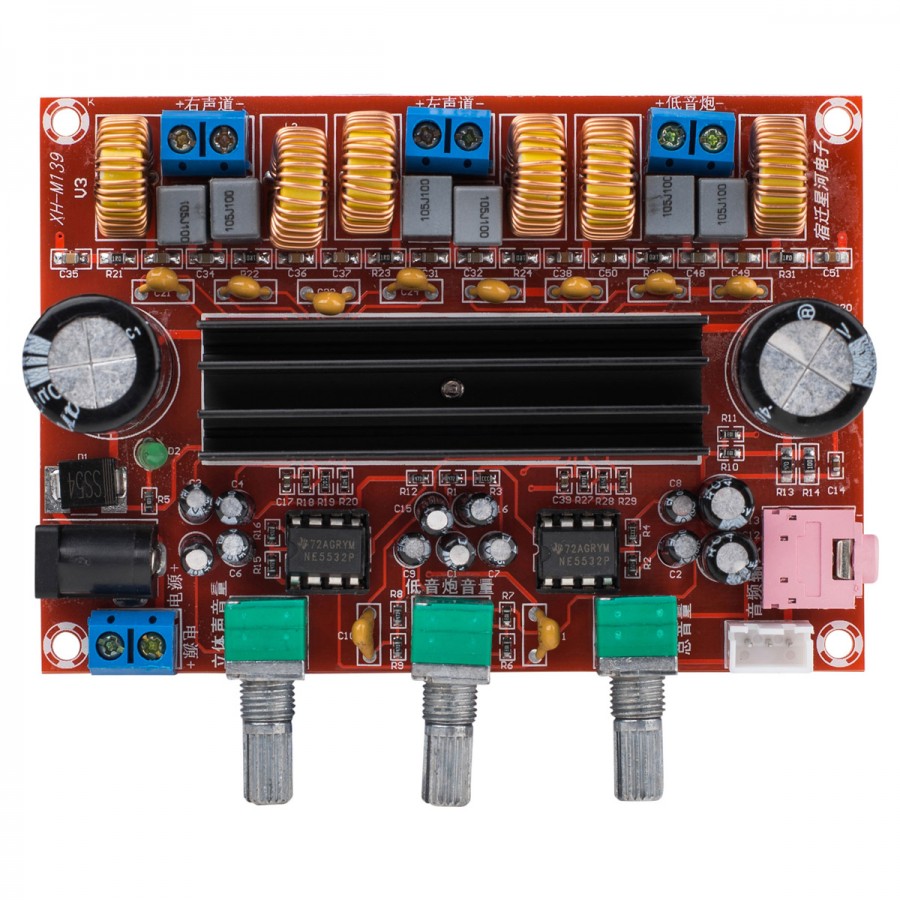

TPA3116D2 Amplifier Module Class D 2x50W + 100W Volume Control

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 1 loyalty point


Reference : 13068
New product

18,90 €tax incl.

15,75 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

TPS3116D2 Amplifier

Amplifier module 2.1 Class D 2x50W + 100W with Volume Control

Amplificateur TPS3116D2

This Class D amplifier module based on two TPA3116D2 chips will allow you to manufacture a complete, simple and efficient device. It is a 2.1 module, capable of delivering 50W in stereo but also 100W additional for the use of a subwoofer. The module has independent volume controls for satellites and subwoofer, as well as an overall volume.

TPS3116D2 TPA3116

Dual TPA3116D2 chip for 2.1 amplifier

The TPS3116D2 amplifier module therefore includes a pair of TPA3116D2 amplification chips. These allow you to deliver 2x50W for your satellite speakers, but also 100W more, dedicated to powering a subwoofer for a boost in low frequencies. In addition, the architecture of the amplifier, in Class D, makes it possible to benefit from a very good output. As a result, it loses less energy, which gives it a good power reserve.

Control the volume of each output

The TPS3116D2 has a series of 3 rotary knobs. These will allow you to adjust the overall volume (master), but also, completely independently, the volume of the satellites and the volume of the subwoofer. Perfect to balance your system and have an accurate restitution.

TPS3116D2 Contrôle de volume
TPA3116D2 module amplificateur Class D 2x50W + 100W avec filtres et contrôles de volume

Technical characteristics

Specifications
Amplifier chip2x TPA3116D2
Output power2x 50W + 100W @ 8 Ohm
Minimum impedance for each channel4 Ohm
SNR100dB
Frequency response14Hz - 100kHz
InputsStereo Jack 3.5mm
3 pins connector
Output6 screws terminal
Power supply12V DC Jack DC 5.5x2.1mm
Dimensions10 x 3 x 7mm

Data sheet
InputJack 6.35mm
OutputSpeaker terminal
Channel2.1
ClassClass D / T
Amplifier chipTPA3116D2
Power (W)50.0
Power (W)100.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Ampli fonctionnel
Bonjour.
Module monté dans un caisson de basses JVC à la place de l'ampli d'origine, alimenté par une alimentation d'ordinateur portable de 110W réglée sur 18V. Débite sur 3 haut-parleurs de 4 ohms.
Le son est très bon, très “propre”, assez puissant pour mes synthés !
Cordialement.
 (0)
 (0)
This review has been posted for TPA3116D2 Amplifier Module Class D 2x50W + 100W Volume Control
