WONDOM AA-AB32221 Stereo Amplifier Board Class D TAS5613 2x150W 4 Ohm

The Wondom AA-AB32221 is a stereo amplifier module capable of delivering 2x140W of power at 4Ω. Featuring a Class D architecture based on a TAS5613 amplifier chip, it achieves a very high efficiency of 96% and excellent sound quality with very low distortion and noise level. Its SNR is thus measured at 94dB and its THD+N at 0.019% (@ 4Ω, 1W, 1kHz).

Average votes for this product
5.0 / 5
  Based on 2 customers reviews.

By buying this product you get 4 loyalty points


Reference : 15608
New product

44,90 €tax incl.

37,42 € tax excl.

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Wondom AA-AB32221

Stereo Amplifier Board Class D TAS5613 2x150W 4 Ohm

Wondom AA-AB32221 Module amplificateur stéréo Class D TAS5613 2x140W 4 Ohm

The Wondom AA-AB32221 is a stereo amplifier module capable of delivering 2x140W of power at 4Ω. Featuring a Class D architecture based on a TAS5613 amplifier chip, it achieves a very high efficiency of 96% and excellent sound quality with very low distortion and noise level. Its SNR is thus measured at 94dB and its THD+N at 0.019% (@ 4Ω, 1W, 1kHz).

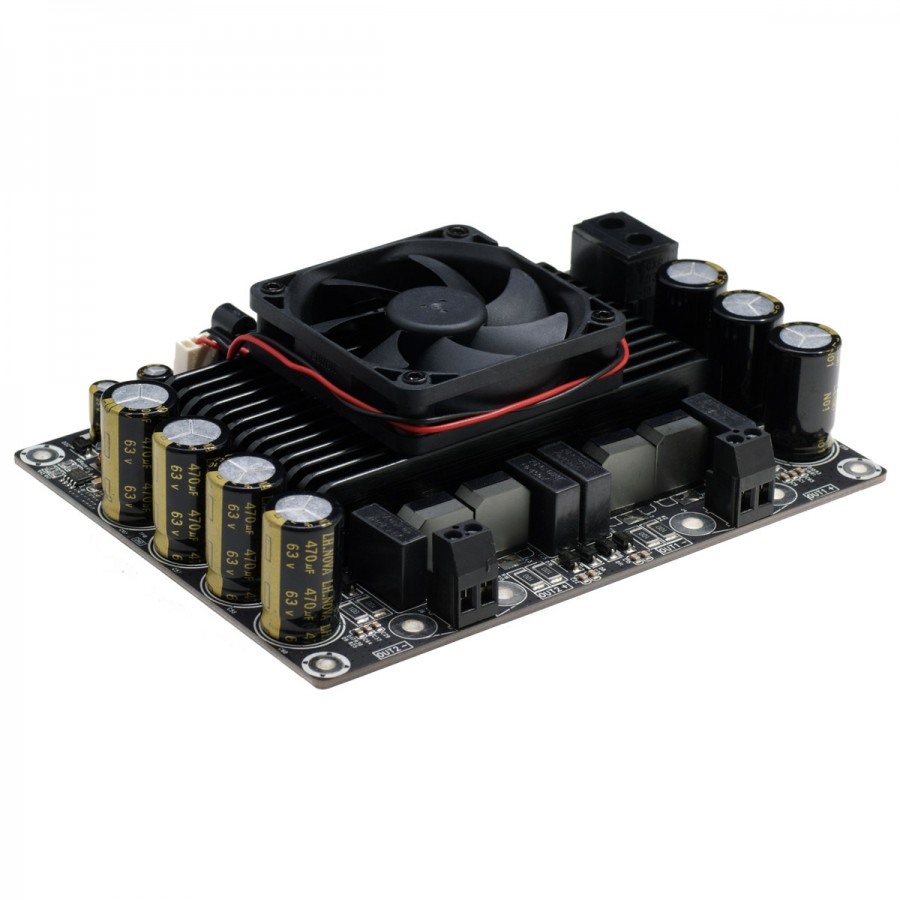

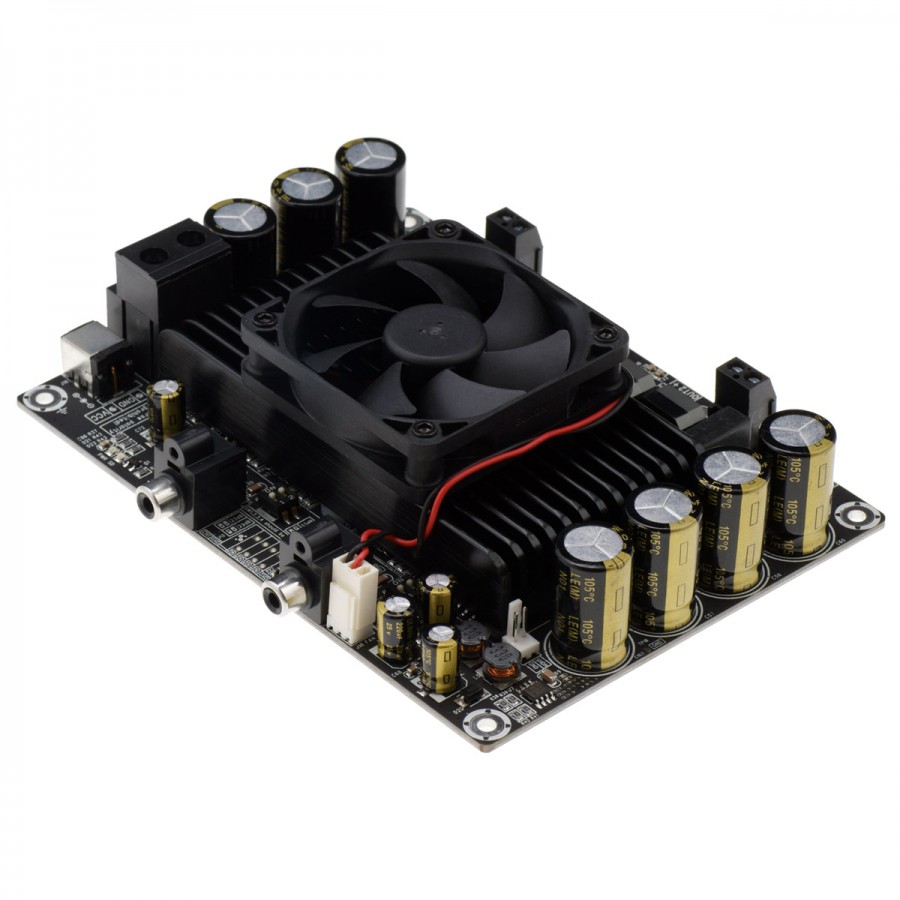

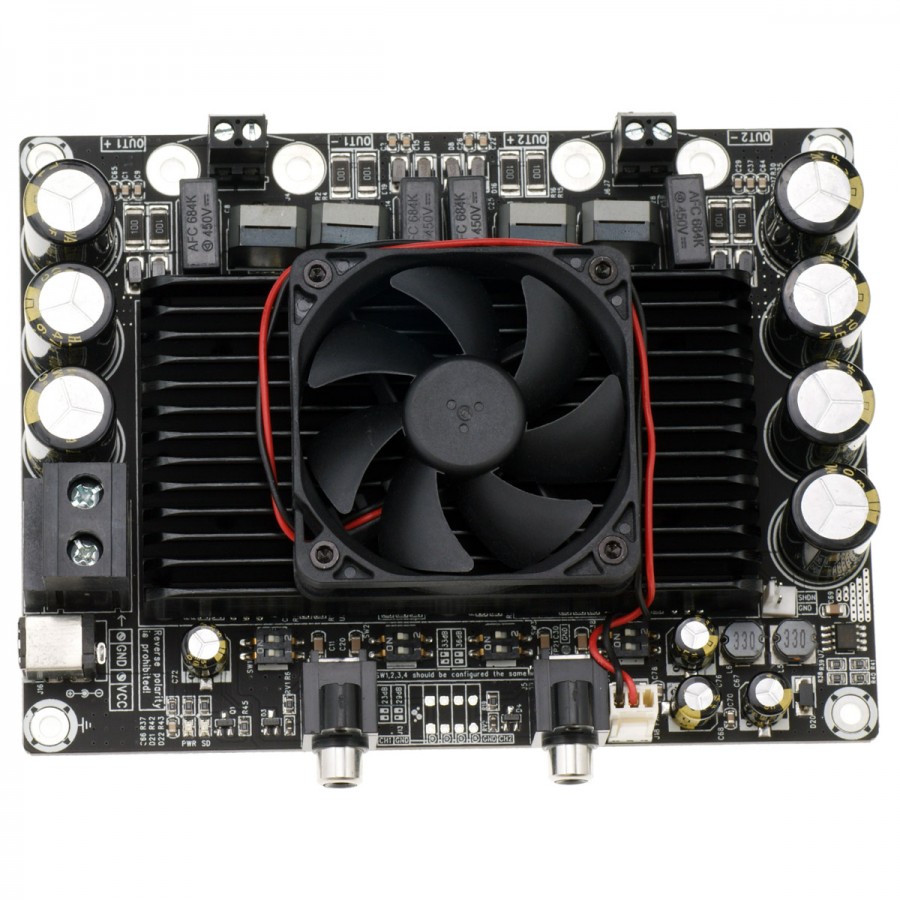

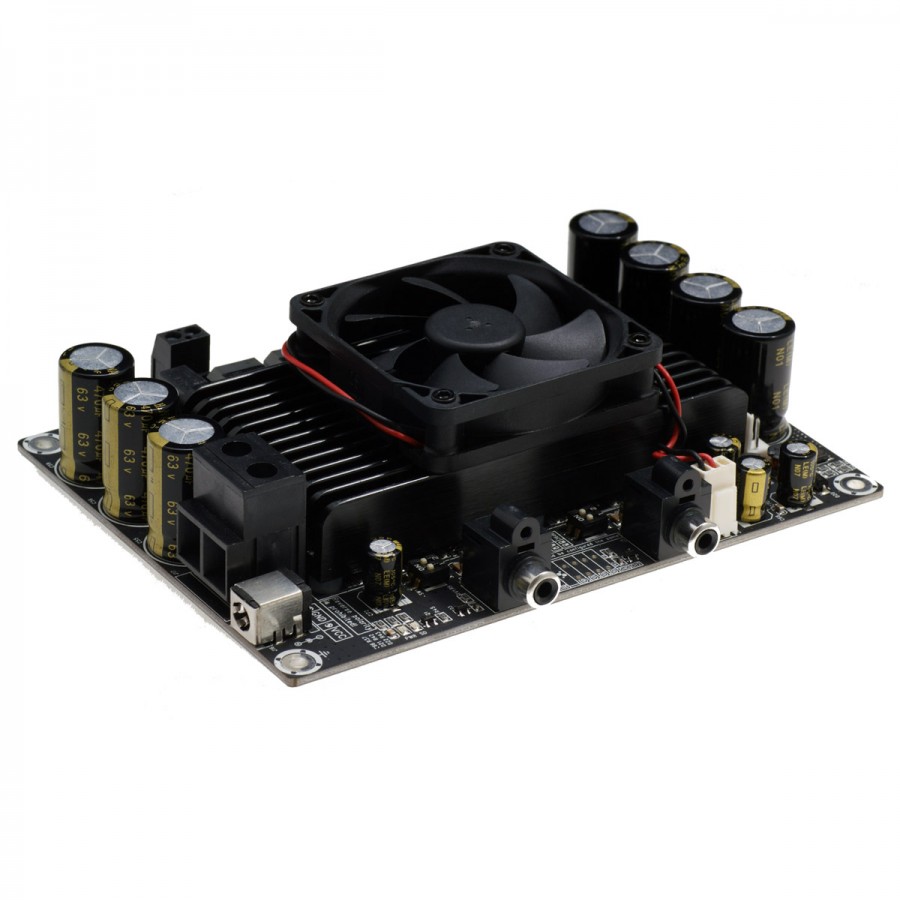

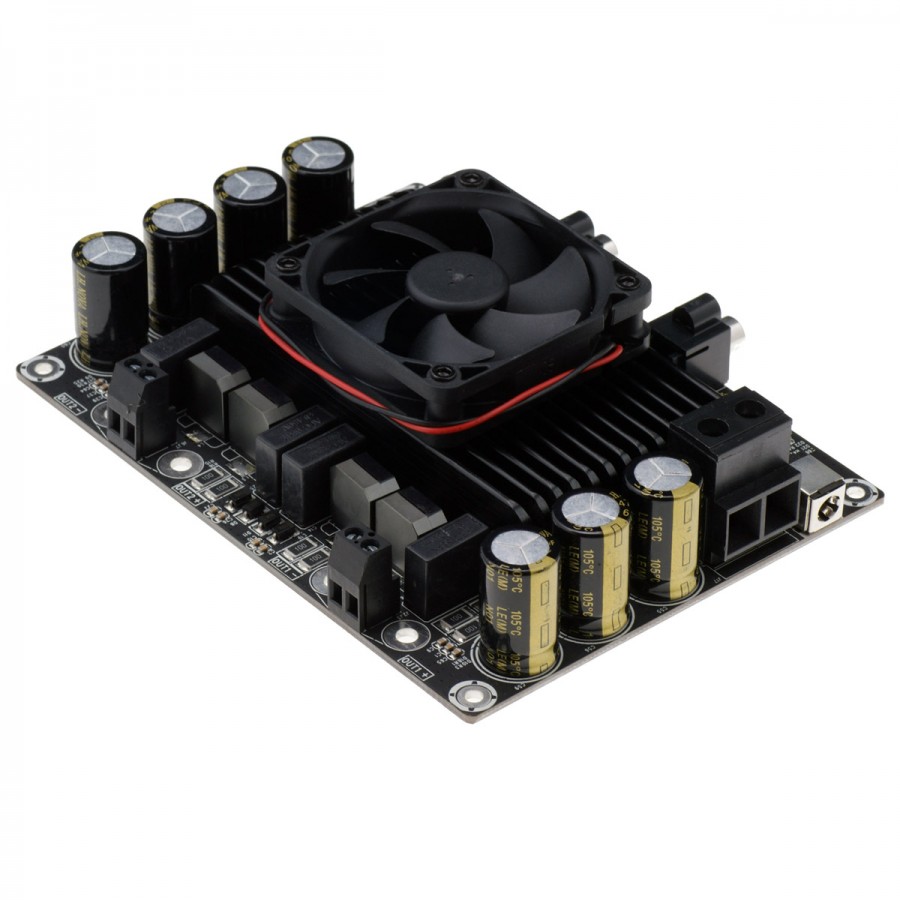

The amplifier is also topped by a fan and radiator to effectively dissipate the heat emitted by the components. It also benefits from a complete protection system, against overheating or overcurrent.

Wondom AA-AB32221 Module amplificateur stéréo Class D TAS5613 2x140W 4 Ohm

Technical characteristics

Specifications
Product typeAmplifier board
ChannelsStereo (2)
Output power2x 150W @ 4Ω, 36VDC, THD+N 10%
2x 144W @ 4Ω, 36VDC, THD+N 1%
Input1x Stereo RCA
OutputSpeaker output on screw terminal
ProtectionsOver current
Over heating
Measurements
ParameterConditionsMin.Typ.Max.
Max current300W @ 4Ω-9A-
Efficiency150W @ 4Ω91%-96%
Min load impedance--3Ω-
Switching frequencySD Floating-394kHz-
Fan activation temperature--50°C-
GainK1 ON, K2 ON-20dB-
K1 ON, K2 OFF-26.8dB-
K1 OFF, K2 ON-30.1dB-
K1 OFF, K2 OFF-32.5dB-
Input sensitivity4Ω, 150W, 1kHz-2.4V RMS-
Input impedance--10kΩ-
Output power4Ω, THD+N 1%-144W-
4Ω, THD+N 10%-150W-
Bandwidth @ ±3dB4Ω20Hz-20kHz
THD4Ω, 1W, 1kHz-0.019%-
4Ω, 10W, 1kHz-0.039%-
Output noise levelA-Weighting, input connected to GND-206µV-
SNR144W, 4Ω, THD+N 1%-94dB-
General
Supply volyage25-36V
Dimensions152.4 x 114.3mm
Weight636g
Wondom AA-AB32221 Module amplificateur stéréo Class D TAS5613 2x140W 4 Ohm Wondom AA-AB32221 Module amplificateur stéréo Class D TAS5613 2x140W 4 Ohm Wondom AA-AB32221 Module amplificateur stéréo Class D TAS5613 2x140W 4 Ohm Wondom AA-AB32221 Module amplificateur stéréo Class D TAS5613 2x140W 4 Ohm

Data sheet
InputRCA
OutputSpeaker terminal
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTAS5613
Power (W)150.0
