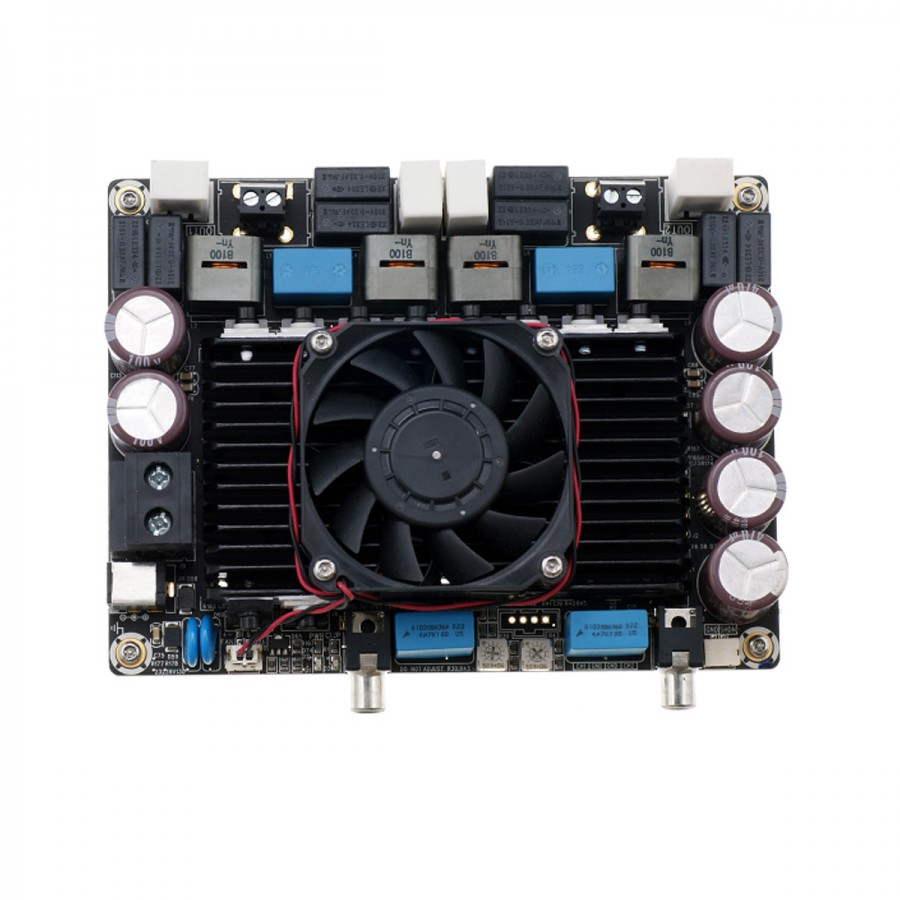

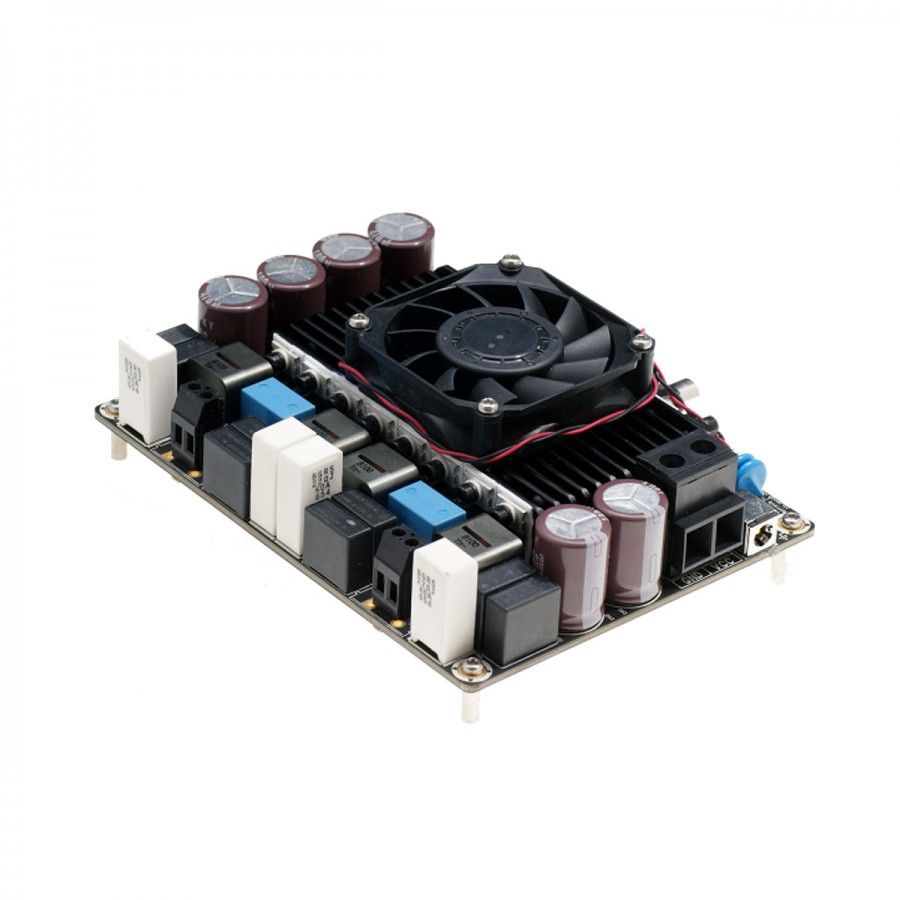

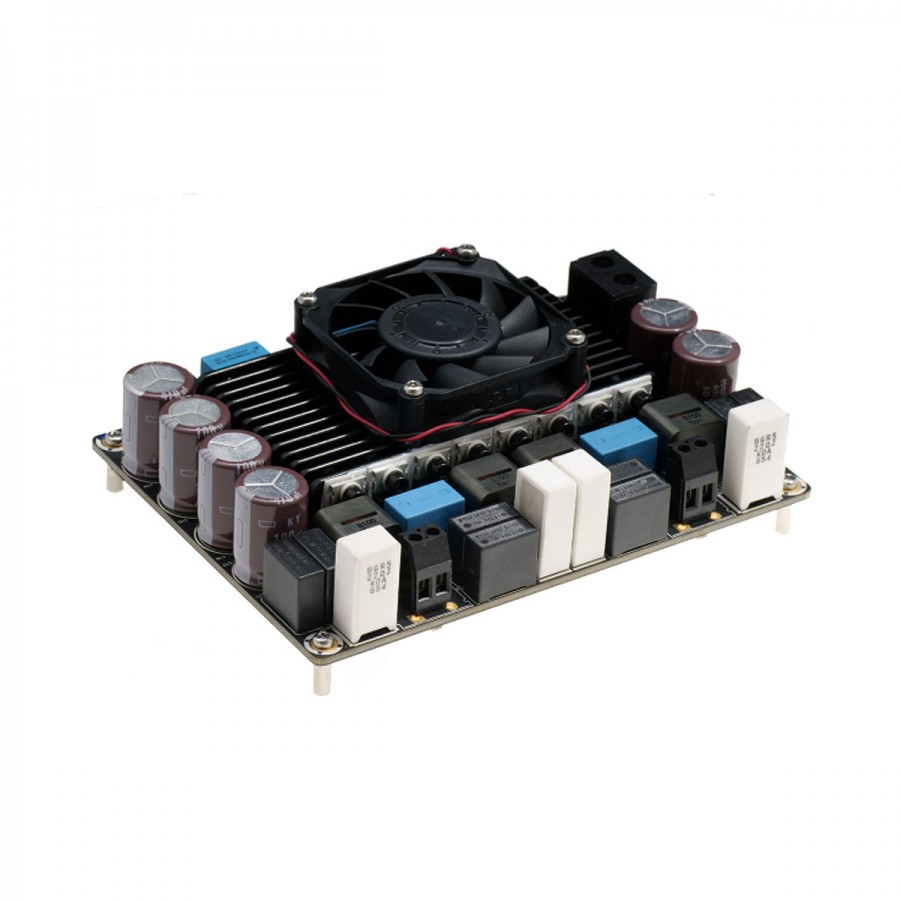

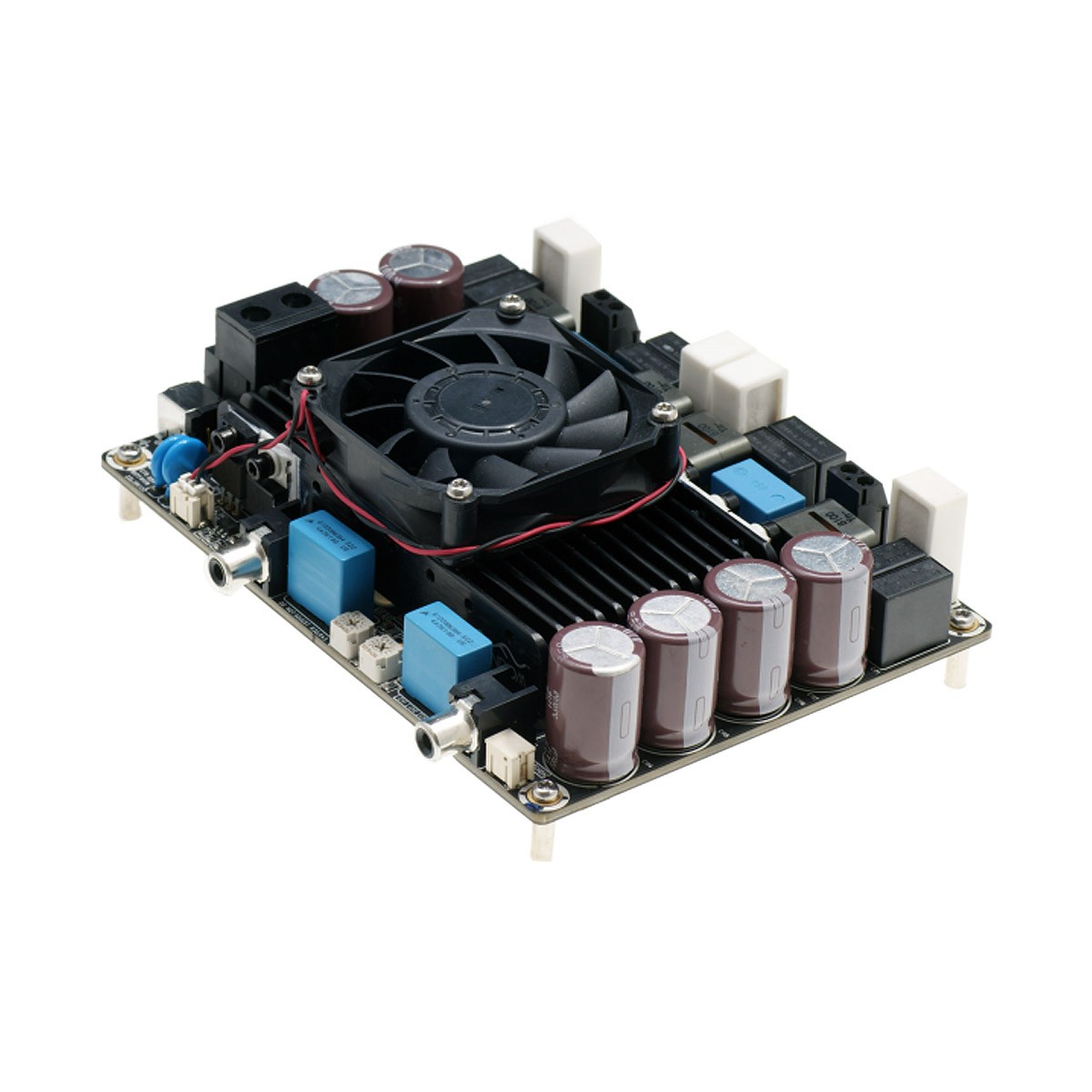

WONDOM AA-AB32433 Amplifier Module Class D T-Amp 2x 750W 4 Ohm

This Class D Wondom AA-AB32433 stereo amplifier is capable, thanks to the T-Amp technology, of developing a consistent power of 2x750W at 4Ω with an efficiency of 90%. This large energy reserve allows it to be combined with a large number of speakers, including the most demanding models.

No customer reviews yet, login to write a review.

By buying this product you get 15 loyalty points


Reference : 14101
New product

159,00 €tax incl.

132,50 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Wondom AA-AB32433

Amplifier Class D T-Amp 2x 750W 4Ω

Wondom AA-AB32433 Amplificateur Class D T-Amp 2x 750W 4Ω

This Class D Wondom AA-AB32433 stereo amplifier is capable, thanks to the T-Amp technology, of developing a consistent power of 2x750W at 4Ω with an efficiency of 90%. This large energy reserve allows it to be combined with a large number of speakers, including the most demanding models. In addition, T-Amp technology ensures high quality sound reproduction, marked by a beautiful transparency and richness of the audio message.

In addition, the amplifier incorporates features such as signal detection, flexible input sensitivity and low power consumption. To effectively dissipate the heat released by the system, the PCB is topped by a heat sink and a low-noise fan. This cooling system ensures greater durability for the product. In addition, the AA-AB35281 has over/under voltage, overload and temperature protections that are too high.

Wondom AA-AB32433 Amplificateur Class D T-Amp 2x 750W 4Ω

Technical characteristics

Specifications
Product typeAmplifier
ClassD
Amplification moduleT-Amp
Power2x 750W @ 4Ω, 72VDC, THD+N 10%
Input1x Stereo RCA
Load impedance2-6Ω
Efficiency90%
Required nominal power1800W @ 72V
Switching frequency550kHz @ 72V
Under voltage protection40V
Input sensitivity1.3V (@ 750W, 4Ω, 1kHz)
SNR99dB (@ 450W 4Ω, THD+N 1%, A-Weighting)
THD+N0.05% (@ 1W 4Ω, 1kHz)
0.03% (@ 10W 4Ω, 1kHz)
Input impedance10kΩ
Output noise level450µV (A-Weighting, input connected to GND)
DC Offset30mV
Crosstalk separation-80dB (@ 10W 4Ω, 1kHz)
Frequency response20Hz - 20kHz
Gain34dB (@ 4Ω, 1kHz)
General
Dimensions152.4 x 114.3mm
Power supply48-90VDC
Weight825g (+/-10%)
Wondom AA-AB32433 Amplificateur Class D T-Amp 2x 750W 4Ω

Wondom AA-AB32433 Amplificateur Class D T-Amp 2x 750W 4Ω

Wondom AA-AB32433 Amplificateur Class D T-Amp 2x 750W 4Ω

Data sheet
InputRCA
OutputSpeaker terminal
Channel2 (Stereo)
ClassClass D / T
Amplifier chipN/A
Power (W)750
