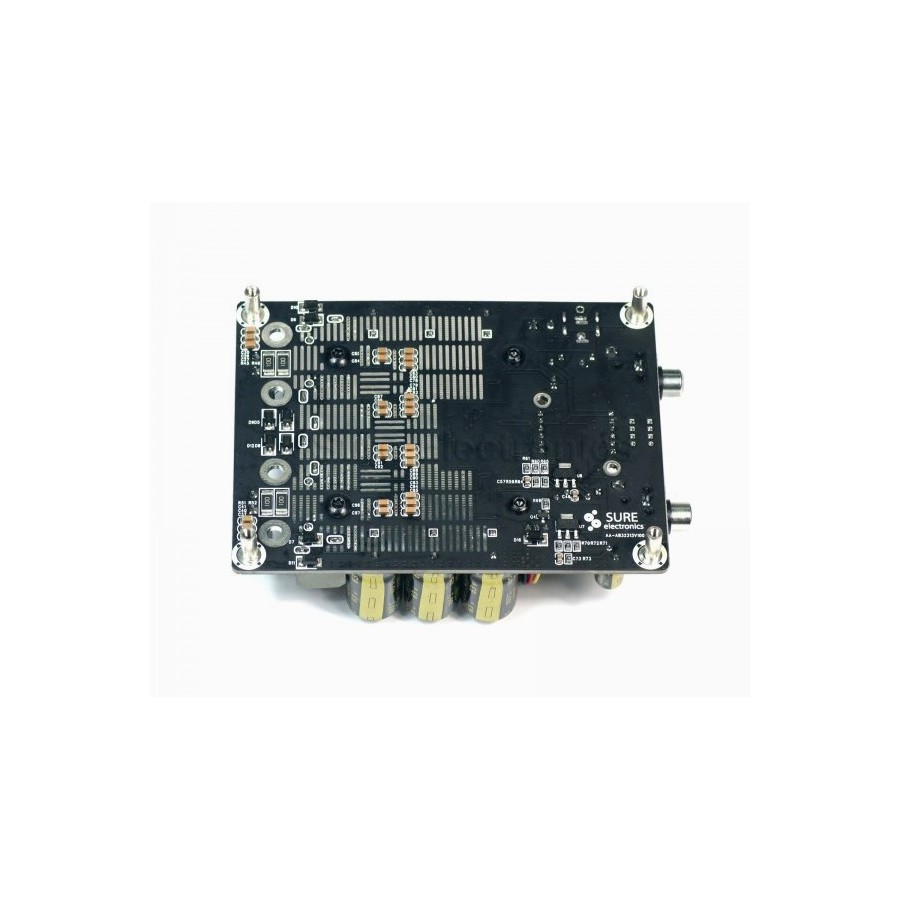

WONDOM AA-AB32512 GREMLIN Amplifier Board T-AMP Class D STA516BE 2 x 500 Watt 3 Ohm

Average votes for this product
5.0 / 5

By buying this product you get 8 loyalty points


Reference : 10198
New product

85,00 €tax incl.

70,83 € tax excl.

- +


Shipping date: 26-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

This compact amplifier module T-AMP in Class D is of a formidable efficiency: it delivers 2x 500W under 3 Ohm and can thus power a very wide range of speakers.
Ideal for all types of DIY projects, it will easily integrate into your audio systems thanks to its simplified implementation.

Due to its power supply range it is very convenient and can easily run on batteries. It has a Jack DC input.

Characteristics :

  • Amplifier T-AMP STA516BE
  • Architecture Class D
  • Topology PBTL (Parallel Bridge-Tied Load) 2x 50Wrms under 4 ohm (0.01% THD)
  • Excellent audio quality
  • Active heatsink
  • Line level input (2VRMS) Solder or RCA pads
  • Over Current and Overtemperature Protection
  • Hp protection ("plocs")
  • Power: 240W x 2 @ 3 ohms (<1% THD + N), 500W x 2 @ 3 ohms (<10% THD + N)
  • Gain: 31.6 dB
  • Support 2x 6 pin for Volume Control Kit
  • Input Voltage: 1350mV
  • Input impedance: 10 kohm
  • Frequency response: 20Hz - 20kHz to +/- 3dB
  • Operating Temperature Range: 0 to 50 ° C
  • Yield:> 90% at 48V
  • Power supply: 25 to 52VDC (48V recommended)
  • Dimensions: 129x91x45mm
  • Weight: 300g




Data sheet
InputRCA
InputSolder pad
OutputScrew terminals
Channel2 (Stereo)
ClassClass D / T
Amplifier chipSTA516B
Power (W)500.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Awesome TAMP
I was made aware of this board via a German diy audio site who nick-named it the Gremlin. It received glowing reviews so I decided to give it a go. I have been using the amp for about 14 months and can report back that it exceeds expectation. Its unbelievable what it accomplishes for the price. The sound is huge and detailed. I follow forum advice and run it at 36V. People reported that higher voltages result in a 'harsher' sound but I can't comment. Although the amp is billed as 2x500W, in reality (8ohms, low THD) its more like 90W. I use this in conjunction with a cheap 6J1 buffer/preamp and couldn't be happier (ymmv).
 (1)
 (0)
This review has been posted for WONDOM AA-AB32512 GREMLIN Amplifier Board T-AMP Class D STA516BE 2 x 500 Watt 3 Ohm
