WONDOM AA-AB33182 Audio Amplifier Board STA516B 4x 100 Watt 4 Ohm Class D
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

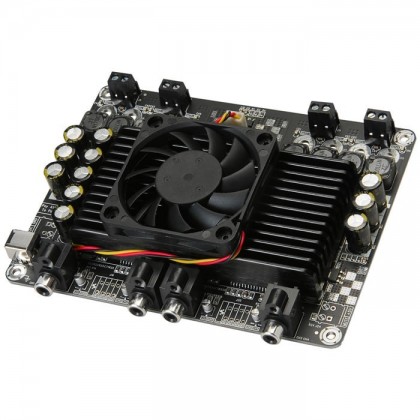

Amplification module WONDOM STA516B 4CH
Class D 4x100W 4Ω @
This Wondom amplifier module is capable of developing up to 4x100W power with a load of 4Ω. It enjoys high efficiency thanks to class T Amplification Technology (up to 90.3% / channel).
Fan & heatsink

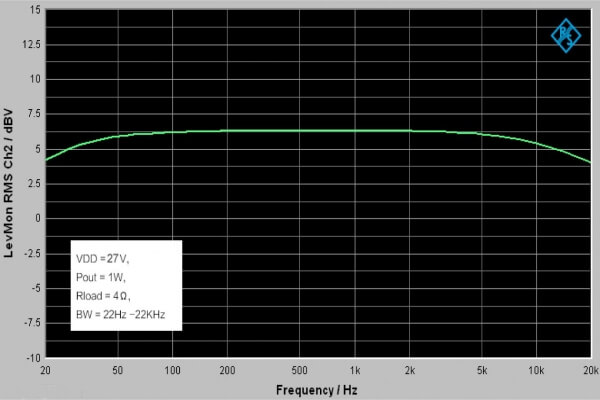

The module is equipped with a heatsink surmounted by an automatic-triggered fan in order to avoid overheating that lowers performance and wear the components. This helps to reduce noise and distortion for each channel. The measurements show a THD <1% up to 69W with a 90dB SNR.
Connectors
To facilitate handling, positive RCA input connectors are already mounted on the housing. Similarly, a DC jack 5.5 / 2.5mm and a power supply terminal are also in place. The outputs are accessible directly on the same PCB through imposing pellets, or terminal (also mounted).
The amplifier is compliant parallel BTL and may operate in différants conditions Scheme 4 inputs / 4 outputs.
The amplifier finally has a mute terminal / + 5V to control the powering of the circuit.
| Specifications | |
|---|---|
| Type | Module amplifier |
| Class | D |
| Chip | Amp : 4x STA516B Driver : 2x Tripath |
| Minimum load | 4Ω |
| Canals | 4 |
| BTL Support | Yes |
| Input sensitivity (RMS) 100W @ 4Ω 1kHz | 520mV |
| Input impedance | 10K |
| Power / channel | 100W @ 4Ohm 27V DC THD + N 10% 69W @ 4Ohm 27V DC THD + N 1% |
| Bandwidth | 20Hz-20kHz |
| THD | @ 4Ω, 01W, 1 KHz - 0.03% @ 4Ω, 10W, 1 KHz - 0.09% |
| Output noise (when grounded) | 211μV |
| SNR @ 69W / 4Ω 1% THD + N | 90dB |
| Power supply Not Included | 15-27VDC DC jack 2.5/5.5mm Center = positive |
| Power consumption in stand-by | 6W |
| Dimensions | 152.4mm x 114.3mm |
| Weight | 0.420kg |
| Thermal dissipation | heatsink & Fan |
Top view
.jpg "Amp WONDOM AA-AB33182 connections")
| Input | RCA |
| Output | Screw terminals |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | STA516B |
| Power (W) | 100.0 |
