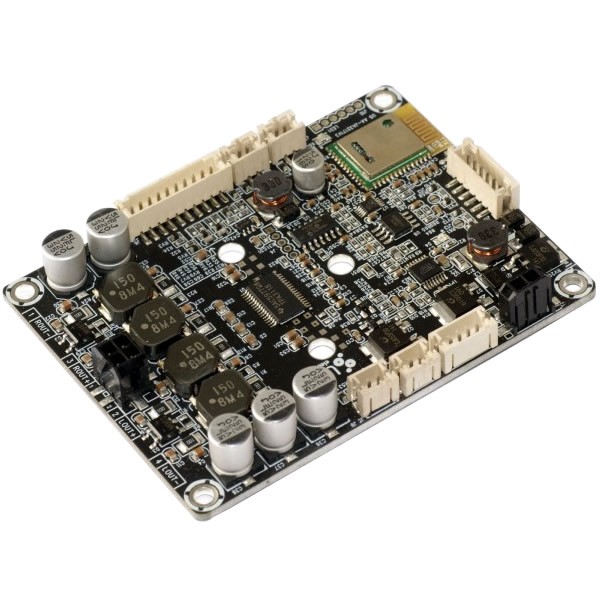

WONDOM AA-JA32472 JAB 2-30 Bluetooth APTX 4.0 Amplifier Class D 2.1 2x30W 8 Ohm

The Wondom JAB 2-30 is a Bluetooth 4.0 stereo amplifier module delivering 2x30W at 8Ω. This new Wondom JAB series offers amplifier modules for mobile use. They are optimized for Lithium battery operation.

Average votes for this product
5.0 / 5
  Based on 2 customers reviews.

By buying this product you get 3 loyalty points


Reference : 11332
New product

32,90 €tax incl.

27,42 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Wondom AA-JA32472 JAB 2-30

Bluetooth APTX 4.0 Amplifier Class D 2.1 2x30W 8 Ohm

Wondom AA-JA32472 JAB 2-30 Module amplificateur stéréo Class D 2x30W 8Ω Bluetooth 4.0

The Wondom JAB 2-30 is a Bluetooth 4.0 stereo amplifier module delivering 2x30W at 8Ω. This new Wondom JAB series offers amplifier modules for mobile use. They are optimized for Lithium battery operation.

The possibilities of use are great for the design of wireless speakers and loudspeakers: yachting, small sound systems, juke-boxes, home automation, camper vans, in-all and ceiling speakers...

This module can even be used for Bluetooth wireless dock DIY design. Power can be supplied by battery, AC adapter, solar panels (see PDF in the "Download" tab of this page).

This Bluetooth 4.0 amplifier will allow you to listen to your favorite songs on your audio systems in Bluetooth from your smartphone, tablet, etc.. The module is CE and FCC certified.

In order for this JAB 2 kit to work, it must be combined with the Wondom JAB 2 AA-JA11114 module function package available as an accessory to this product.

It can also be used in conjunction with aluminium bracket for wall mounting AA-JA11115 or extension interface with two USB ports, one 3.5mm jack connector and one ON/OFF switch AA-JA11112

Technical characteristics

Specifications
Product typeAmplifier module
Amplification typeClass D
ChannelStereo (2)
Amplification chipTPA3118
Power2x30W @ 8Ω, THD+N < 1%
inputsStereo input on Molex connector
Bluetooth
OutputsOn Molex 43025-400/43025-4000 connector
Bluetooth version4.0
Bluetooth technologyaptX
+EDR
A2DP
LED status
ProtectionOvercurrents
Overheat
Measurements
ParameterConditionsMin.Typ.Max.
Power supply--19VDC24VDC
Battery under voltage protection--10.4VDC10.5VDC
Constant charging voltage--12.3V12.7V
Charging current--0.5A1A
Gain-18dB26dB36dB
Output power19V @ 8Ω2x30W-
THD19V @ 8Ω, 10W, 1kHz-0.07%-
Output noise levelA-Weighting, input connected to GND-213µV-
SNR19V, 10W @ 8Ω, THD+N = 1%-89.3dB-
General
Power supply12-24VDC
Dimensions91.5 x 68.5mm
Package1x Wondom AA-JA32472 JAB 2-30
1x Power cable 50cm
1x Stereo speaker cable 50cm on Molex x4 and bare wires
Module amplificateur stéréo Class D 2x30W 8Ω Bluetooth 4.0
Module amplificateur stéréo Class D 2x30W 8Ω Bluetooth 4.0
Module amplificateur stéréo Class D 2x30W 8Ω Bluetooth 4.0

Data sheet
Channel2 (Stereo)
ClassClass D / T

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Super pour le prix, utilisé pour faire de petites enceintes bass reflex de 4 litres avec un large bande Fostex.
La sonorité est tout à fait convenable, le bluetooth fonctionne très bien avec une bonne portée pour un si petit module.
Le potentiomètre de volume génère un peu de souffle, c'est la seule chose un peu frustrante
 (0)
 (0)
This review has been posted for WONDOM AA-JA32472 JAB 2-30 Bluetooth APTX 4.0 Amplifier Class D 2.1 2x30W 8 Ohm
Note :
 5/5
Date :
5 étoiles méritées
Installé dans une enceinte bluetooth (DIY) et connecté sur deux HPs large bande Monacor SPH-60X avec filtre, le rendu est tout simplement parfait, le son est clair et puissant. L’appairage est rapide, sans soucis, sans code. Ce modu la s'alimente en 19V DC. C'est des alimentations faciles à trouver. Prévoir l'achat du pack de câbles (ref: SURE JAB2 AA-11114) pour le faire fonctionner.
 (0)
 (0)
This review has been posted for WONDOM AA-JA32472 JAB 2-30 Bluetooth APTX 4.0 Amplifier Class D 2.1 2x30W 8 Ohm
