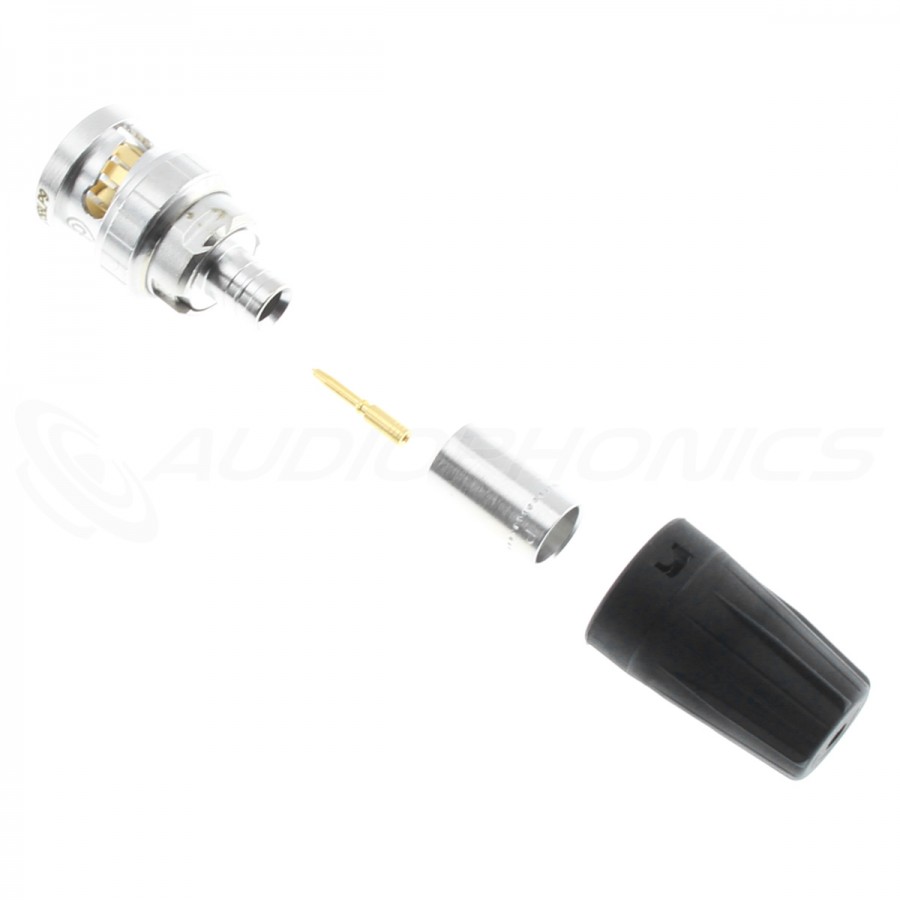

NEUTRIK NBNC75BLP9 Male BNC 75 Ohm Connector Gold Plated Ø6.3mm
This 75Ω male BNC connector will allow you to design high quality digital cables. It allows an efficient holding of the cable while protecting it from mechanical stress thanks to its flexible sleeve. The contacts of the connector are gold plated to ensure both good conductivity and resistance to oxidation.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 17239
New product
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Neutrik NBNC75BLP9
Male BNC 75Ω Connector Gold Plated Ø6.3mm
This 75Ω male BNC connector will allow you to design high quality digital cables. It allows an efficient holding of the cable while protecting it from mechanical stress thanks to its flexible sleeve. The contacts of the connector are gold plated to ensure both good conductivity and resistance to oxidation.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Male BNC connector |
| Max cable diameter | Ø6.3mm |
| Monting type | To solder |
| Contacts plating | Gold |
| Impedance | 75Ω |
| Dielectric strength | 1.5kVdc |
| Insulation resistance | > 5GΩ |
| Rated voltage | < 50V |
| Life time | > 1000 cycles |
| Max cable diameter (mm) | 6.3 |
| Mounting type | To weld |
| Connectic | Male |
| Max panel thickness (mm) | N/A |
| Impedance (Ω) | 75 |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
