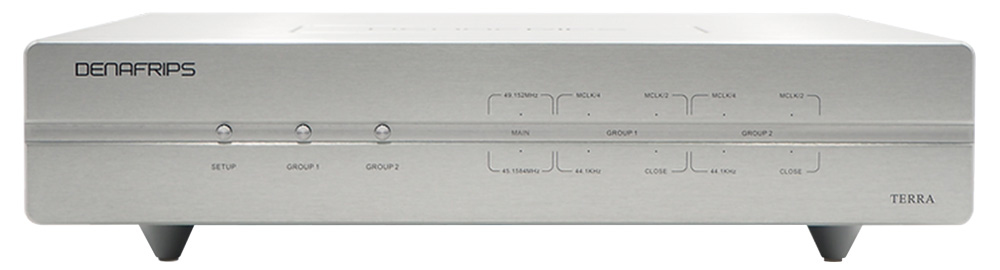

Denafrips Terra is a master clock generator designed for high-end audio applications. It features precision OCXO crystal oscillators (45.1548MHz, 49.152MHz), powered by a high-current, multi-stage linear power supply with an oversized O-Core transformer. As a result, Denafrips Terra delivers a highly accurate and stable clock signal that considerably reduces the jitter of an audio system.
Great attention has been paid to increasing the power supply's performance factors: low noise, high slew rate and high current. These factors provide the OCXO with an adequate DC power supply, resulting in high thermal stability and low crosstalk.
MCLK1/2/3/4 CLOCK-OUT frequencies are manually configurable via the intuitive front panel, to suit a variety of applications.
Technical characteristics
Specifications | |
---|---|
Product type | Audio clock |
Fixed outputs | 2x 45.1548MHz 2x 49.152MHz |
Adjustable outputs | 44.1kHz, 48kHz 11.2896MHz, 12.288MHz 22.5792MHz, 24.576MHz |
Output connectors | BNC 75Ω |
Oscillators | OCXO |
General | |
---|---|
Supply voltage | 100-240VAC, 50/60Hz (manual selection) |
Consumption | ≤ 20W |
Dimensions | 340 x 260 x 66mm |
Weight | 6kg |
Color | Silver |
Package | 1x Denafrips Terra 1x Power cord |
