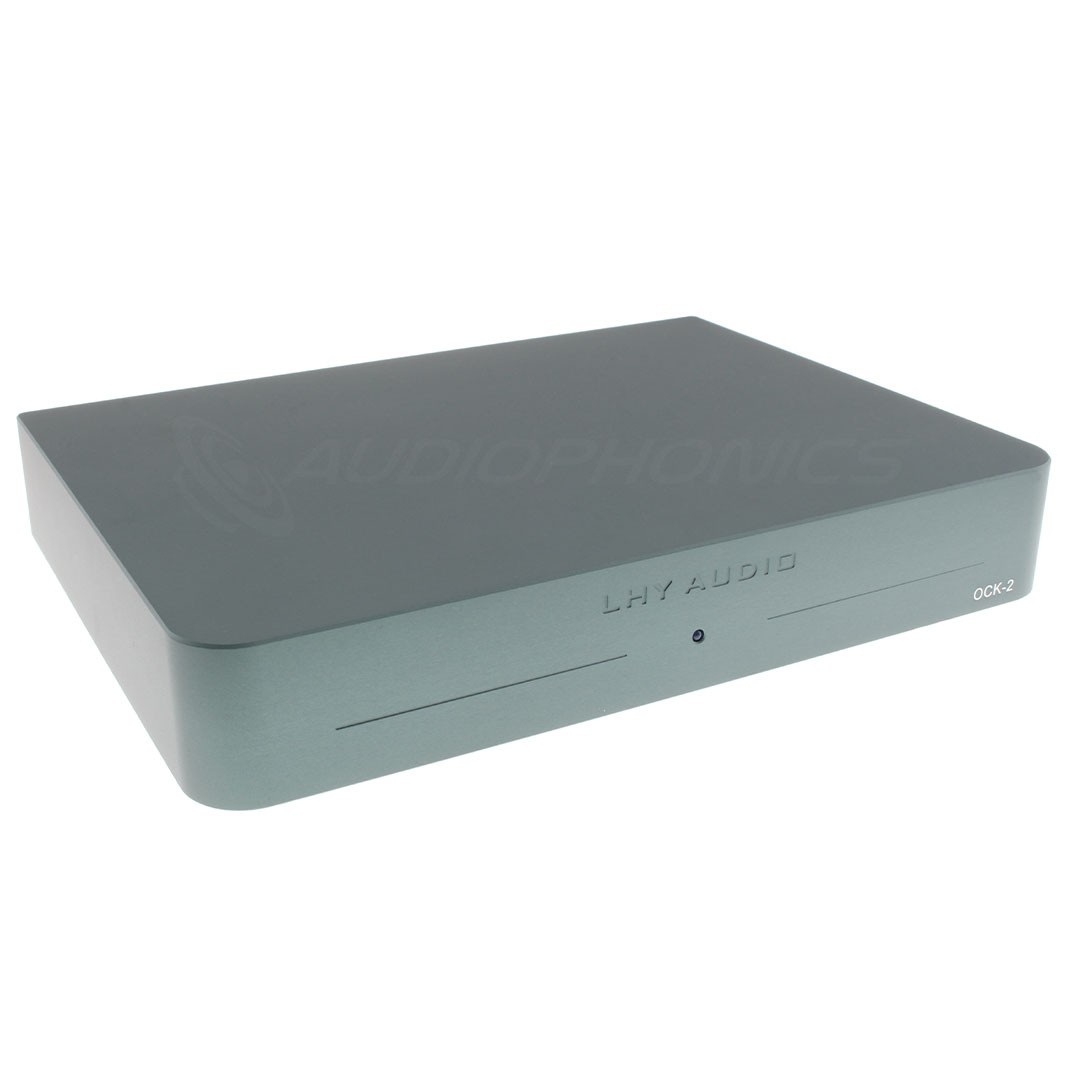

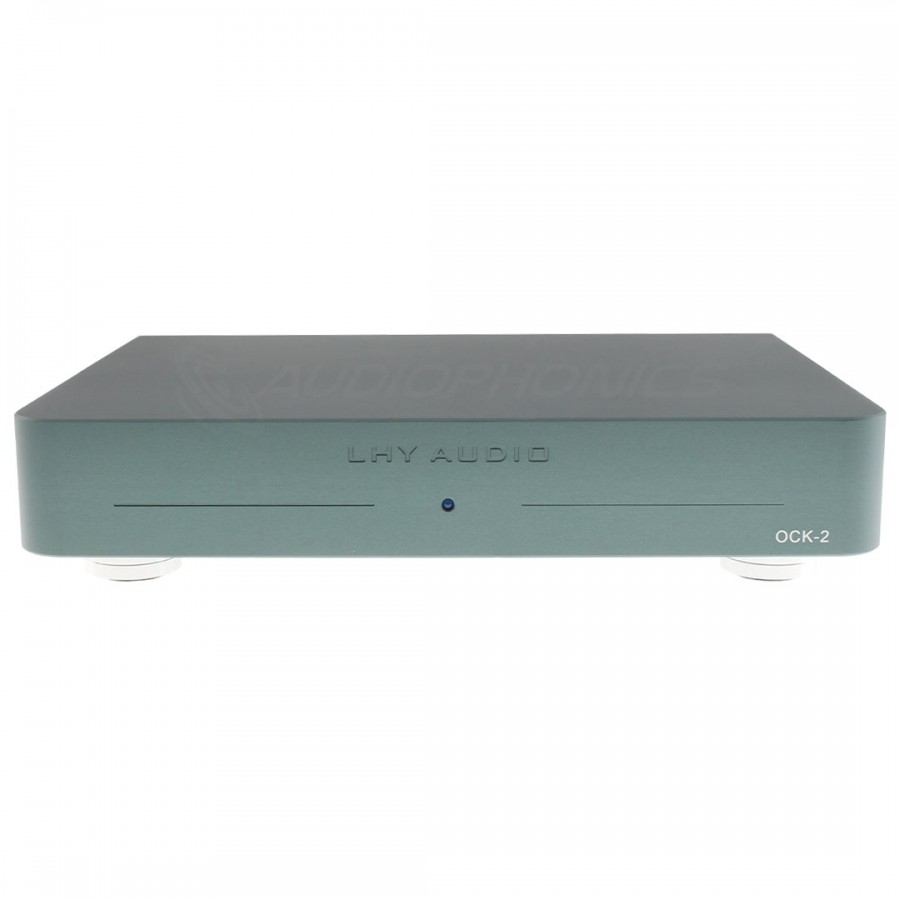

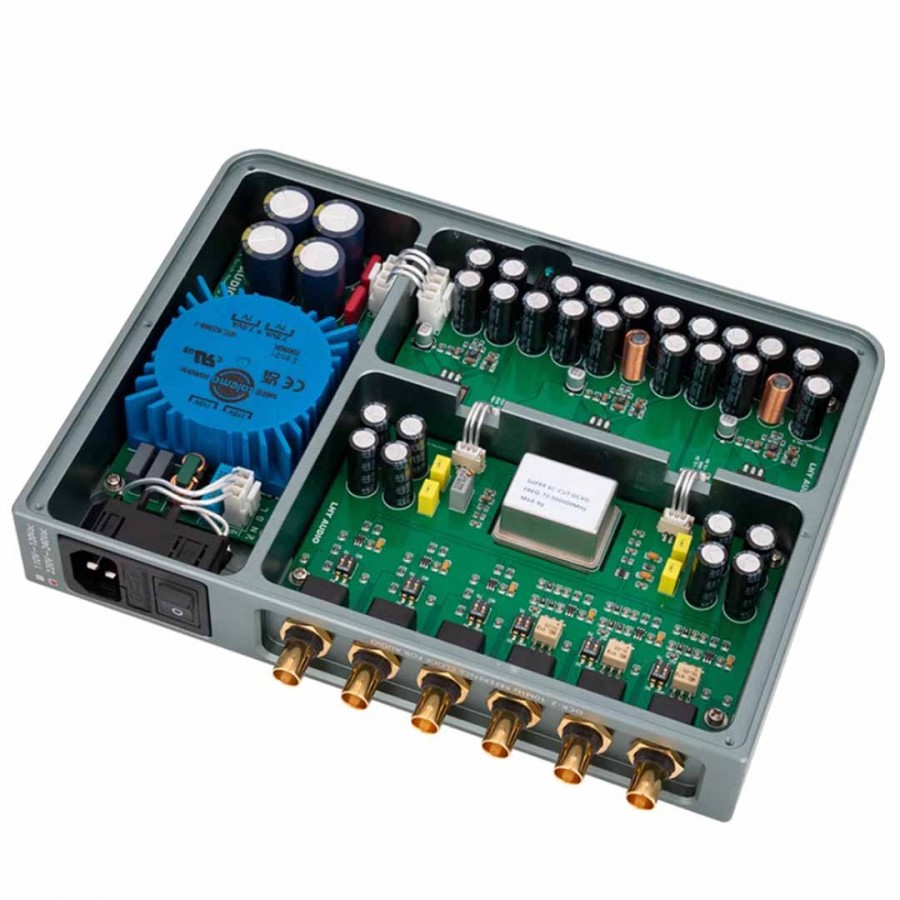

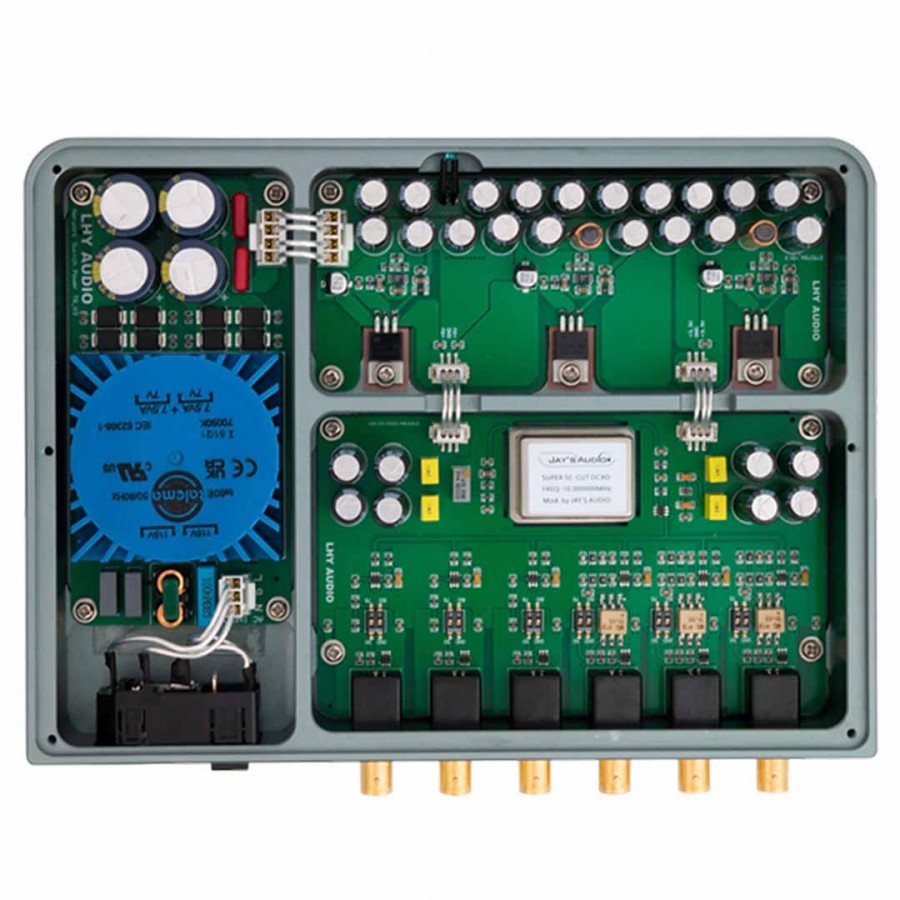

The LHY AUDIO OCK-2 master clock is a high-precision clock that minimizes sampling errors from your Hi-Fi system, particularly for high-resolution audio streams. The OCK-2 clock features 6 independent 10MHz 50Ω outputs on BNC connectors. Thanks to a high-performance OXCO oscillator, three outputs have a sine wave, while three others have a square wave. This master clock system greatly enhances the performance of your audio installation. The LHY Audio clock incorporates quality components such as an OXCO oscillator, a linear power supply delivering a clean, pure signal with EMI filter, Talema 15W transformer and high-speed rectification filter. The crystal oscillator is powered by 3 LT3042 + PNP voltage regulators, enabling it to achieve a high level of precision.

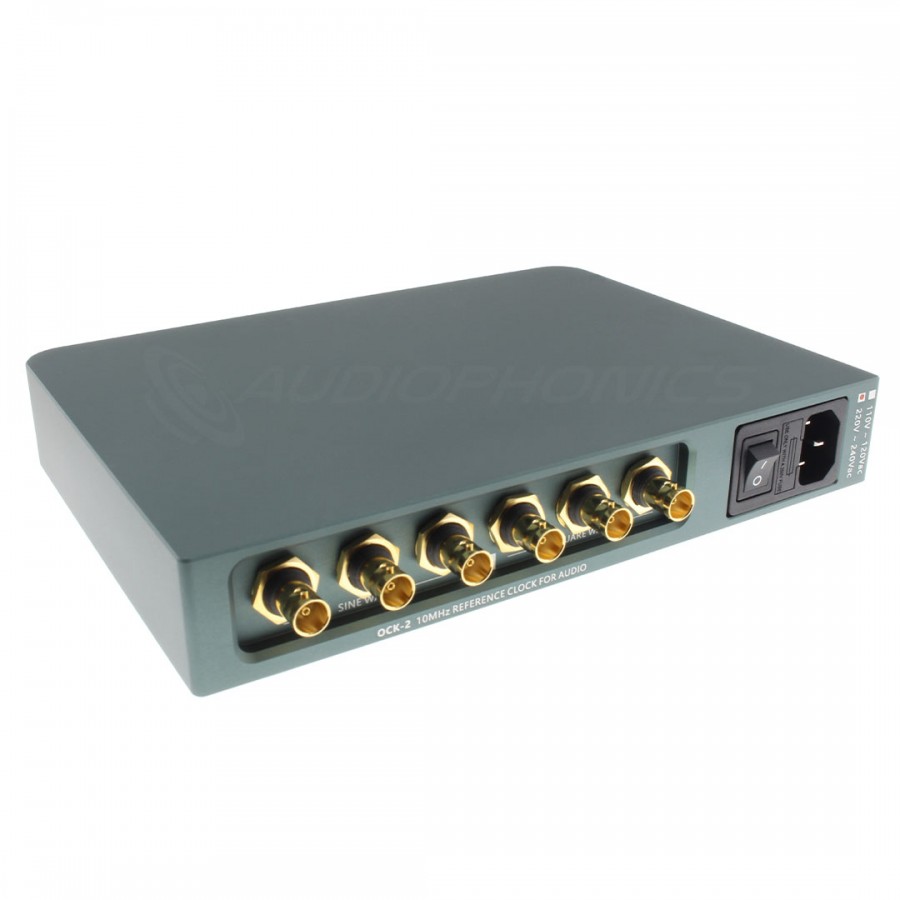

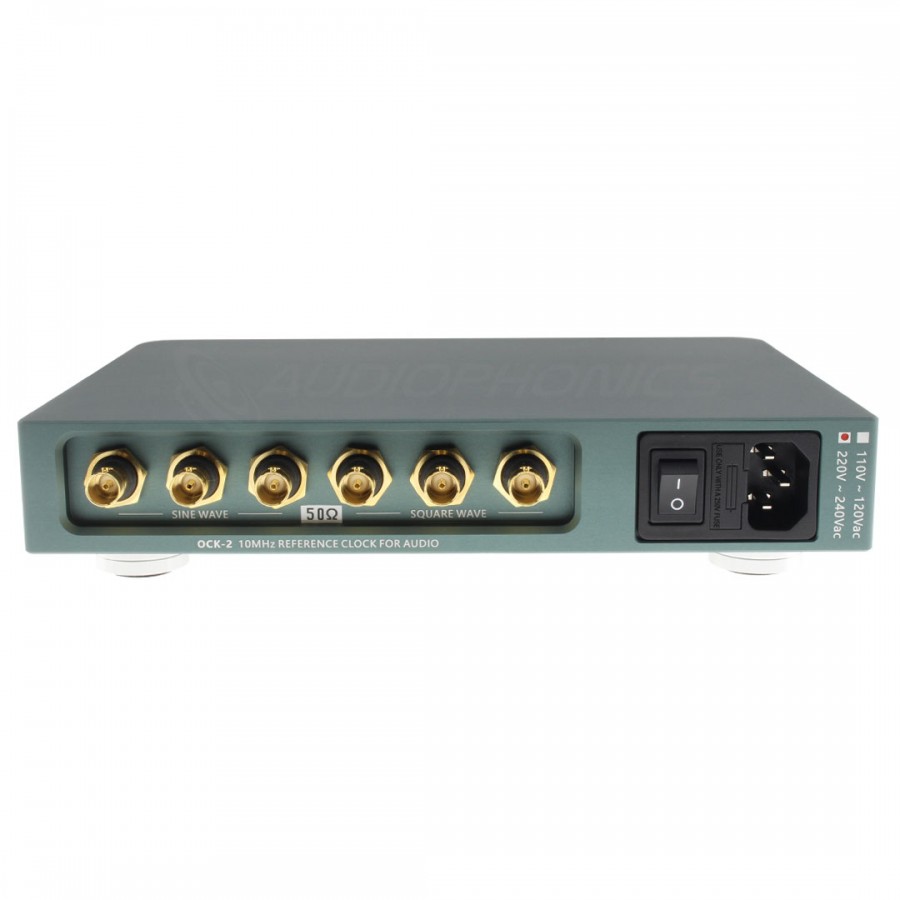

1 | 3x 10MHz 50 Ohm sine wave clock output on BNC connector |
2 | 3x Clock output 10MHz 50 Ohm square wave on BNC connector |
3 | IEC power supply / Fuse |
Technical caracteristics
Specifications | |
---|---|
Product type | Master Clock |
Oscillator | OCXO |
Output waveforms | 3x Sinusoidal signal 3x Square-wave signal |
Output frequency | 6x 10MHz |
Output impedance | 50 ohm |
General | |
---|---|
Power supply | 220-240V AC |
Power consumption | < 20W |
Dimensions | 240 x 175 x 50mm |
Color | Green |
Weight | 2.1kg |
Package | 1x Master clock OCXO 10MHz LHY AUDIO OCK-2 1x Schuko power cable |
