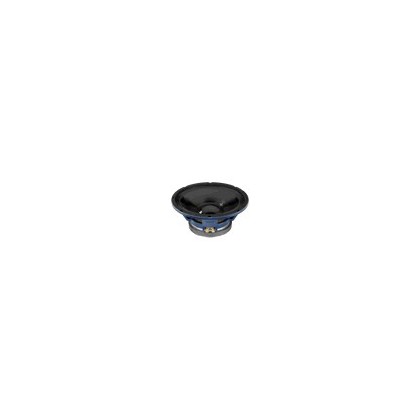

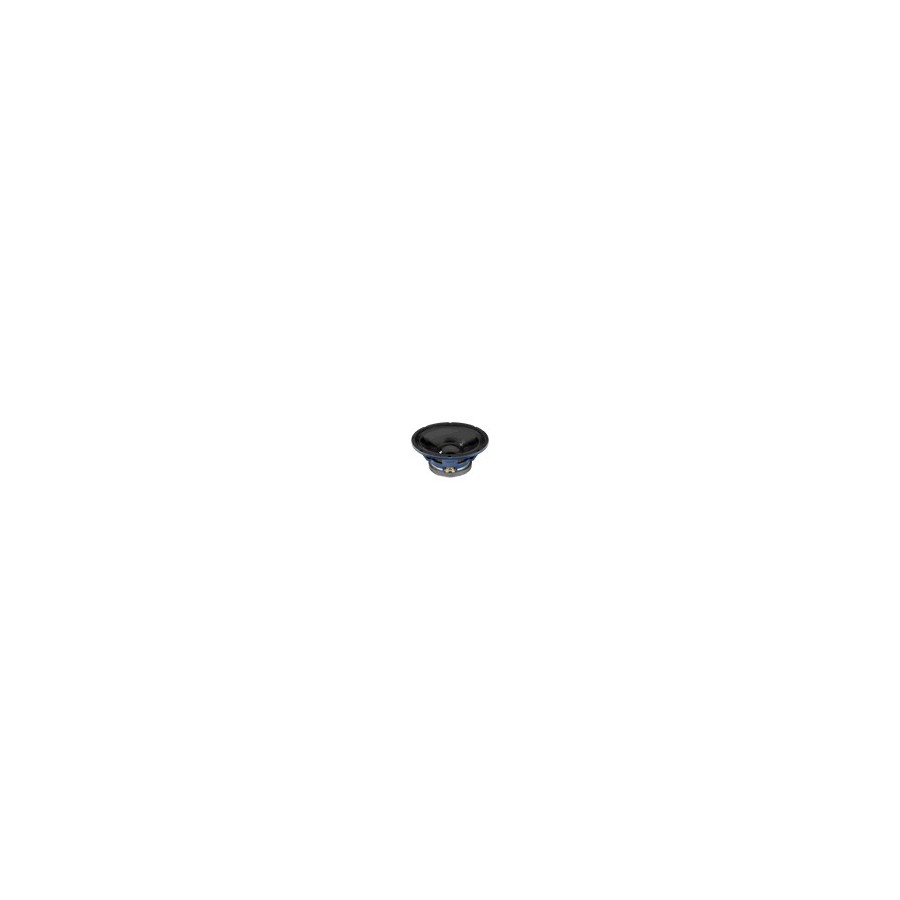

MONACOR SP-30A / 200PRO Professionnal Speaker Driver Woofer 200W 8 Ohm Ø30cm
No customer reviews yet, login to write a review.
By buying this product you get 18 loyalty points
Reference : 1952
New product
![[GRADE S] FURUTECH DAS-4.1 Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m](https://www.audiophonics.fr/64493-thumb_default/furutech-das-41-balanced-interconnect-cable-occ-ducc-copper-o10mm.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
| For years IMG Stage Line's professional loudspeakers have been used in IMG STAGE Line series speakers (series 500 and 600 depending on model); now they are also available individually. The 12 "and 15" (30 cm and 38 cm) shine with perfectly attenuated transmission behavior into the highest medium range and allow extremely clean sounds, the midrange 16 cm makes the Hi-Fi sound suitable for the stage. Professional Woofer, 400 WMAX, 200 WRMS, 8 Ω Powerful professional 30 cm (12 ") loudspeaker with exceptional sound, cast iron bowl, moisture-treated membrane, very high quality of performance, very low frequency distortion in spite of very high efficiency, this 12" is equipped for optimum performance in bass-reflex speakers. The very first choice for live uses, by musicians and also for a perfect reproduction of voices and acoustic instruments. Supported by a subwoofer, ite of course to everything else. |
 | Specifications Speakers | ||
 | | ||
| | ||
| Impedance (Z) | | 8 Ω |
| | ||
| Resonance frequency (fs) | | 45 Hz |
| | ||
| Maximum bandwidth | | f3-3000 Hz |
| | ||
| Maximum power | | 400 WMAX |
| | ||
| Rated power (P) | | 200 WRMS |
| | ||
| Average sound pressure (1 W / 1 m) | | 102 dB |
| | ||
| Compliance susp. (Cms) | | 0.29 mm / N |
| | ||
| Moving mass (Mms) | | 43 g |
| | ||
| Mechanical overvoltage. (Qms) | | 4.33 |
| | ||
| Electrical overvoltage (Qes) | | 0.36 |
| | ||
| Fact. total surge (Qts) | | 0.33 |
| | ||
| Volume equ. (VAS) | | 114 l |
| | ||
| DC resistance. (Re) | | 5.8 Ω |
| | ||
| Force factor (BxL) | | 13.95 Tm |
| | ||
| Inductance coil (The) | | 0.7 mH |
| | ||
| Coil diameter | | 63 mm |
| | ||
| Coil holder | | Kapton |
| | ||
| Linear excursion (X MAX) | | ±2 mm |
| | ||
| Transmitting surface (Sd) | | 530 cm2 |
| | ||
| Magnet Weight | | 65 oz. |
| | ||
| Weight | | 7 kg |
| | ||
| | ||
|
