WONDOM BCPB6 Battery Management Module

This Wondom BCPB6 battery manager module lets you use 6 cells (lithium-ion battery) 21700 to power your electrical devices. The module enables you to achieve a considerable level of autonomy while maintaining a fairly compact form-factor with up to 88W/h to 100W/h of energy. The board's extensive connectivity makes integration quick and easy.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 18455
New product

28,90 €tax incl.

24,08 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 26-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

WONDOM BCPB6

Battery Manager Module 6x21700

WONDOM BCPB6 Battery Manager Module 6x21700

This Wondom BCPB6 battery manager module lets you use 6 cells (lithium-ion battery) 21700 to power your electrical devices. The module enables you to achieve a considerable level of autonomy while maintaining a fairly compact form-factor with up to 88W/h to 100W/h of energy. The board's extensive connectivity makes integration quick and easy.

To guarantee a high level of reliability, the module is equipped with a complete protection circuit: overcurrent, overtemperature, short-circuit, overvoltage and undervoltage protection.

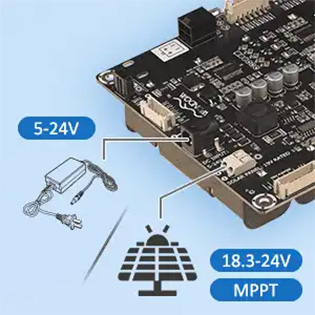

Two power supply options

The module can be powered from 5V to 24V DC via a 5.5/2.1mm DC jack connector. It requires a current of between 0.90A minimum and 2.5A maximum.

A Wago connector can also be used to connect a solar charging source from 18.3V to 24V.

WONDOM BCPB6 Battery Manager Module 6x21700
WONDOM BCPB6 Battery Manager Module 6x21700

Multiple discharge ports for a wide range of applications

Different discharge ports are available on the BCPB6 module. They are all connected in parallel for identical functions. The module can be used to power several devices at the same time. The discharge ports are as follows: Molex Minifit, Molex Microfit JST PH and JST XH.

LED indicators

Connectors for LED battery level indicators are available, so you can keep track of the module's operating status even when it's integrated in a case.

WONDOM BCPB6 Battery Manager Module 6x21700

6 accumulators 21700

This module is designed to accommodate 6 high-capacity 21700 batteries simultaneously. This means 6x 4000mAh for an extremely comfortable total capacity. This configuration also enables high voltages to be reached, with current outputs of 1x 4A (J13: JST-PH), 3x 9A (J15: Molex microfit / J12: JST-XH / J14: Molex Minifit) and 1x 12V 3A (J4: JST-PH).

WONDOM BCPB6 Battery Manager Module 6x21700

La connectique du module Wondom BCPB6

WONDOM BCPB6 Battery Manager Module 6x21700

Charge

  • J3 : DC5.5/2.1mm jack connector for 5V-24V AC adapter
  • J2 : WAGO-2060 4mm 2-pin connector for 19V-24V solar power supply

Décharge

  • J12 : JST-XH 2.5mm connector 16.8-25.2V DC
  • J13 : JST-PH 2mm connector 16.8-25.2V DC
  • J14 : Molex Mini-Fit connector 16.8-25.2V DC
  • J15 : Molex Micro-Fit connector 16.8-25.2V DC
  • J4 : JST-PH 2mm 12V DC connector(activate voltage regulator with switch SW1)

Autres

  • J10 : PH-2mm connector for external charging port LED indicator
  • J11 : PH-2mm connector for external power port LED indicator
  • J25 : External port for LED battery level indicator
  • A : LED battery status indicator (Press SW2 to check battery level)
WONDOM BCPB6 Battery Manager Module 6x21700

Technical characteristics

Specifications
Product typeBattery management system
Supported batteriesLithium-ion
6x 21700
4000 mAh
Input power supplyJack DC input (J3): 5V to 24V DC
Solar panel input (J2, wago 2060): 19V DC
Output currentJST-PH (J13): 4A (peak current 8A for 200ms)
Molex Micro-Fit (J15): 9A (peak current 12A for 200ms)
JST-XH (J12): 9A (peak current 12A for 200ms)
Molex Mini-Fit (J14): 9A (peak current 12A for 200ms)
JST-PH (J4): 12V 3A (12A peak current for 200ms)
Charge current0.9V
Protection against excessive discharge (detection / loosening)Yes - individual protection for each battery
Protection against overload (detection / loosening)Yes - individual protection for each battery
Initial equilibrium batteries4.18V
Maximum Operating Temperature50°C (20°C ideal)
General
Dimensions152.4 x 114.3mm
Mounting holes142.24 x 104.14mm
Weight152g
Package1x WONDOM BCPB6 battery manager module
1x JST-PH 4-pin cable

Data sheet
InputPCB Connector
OutputPCB Connector
Output voltage (V)NC
Output current (A)4.0
Output current (A)3.0
Output current (A)9.0
Input voltage (V)12.0
Input voltage (V)24.0
Input voltage (V)5.0
Input voltage (V)19.0
Power SupplyBattery
