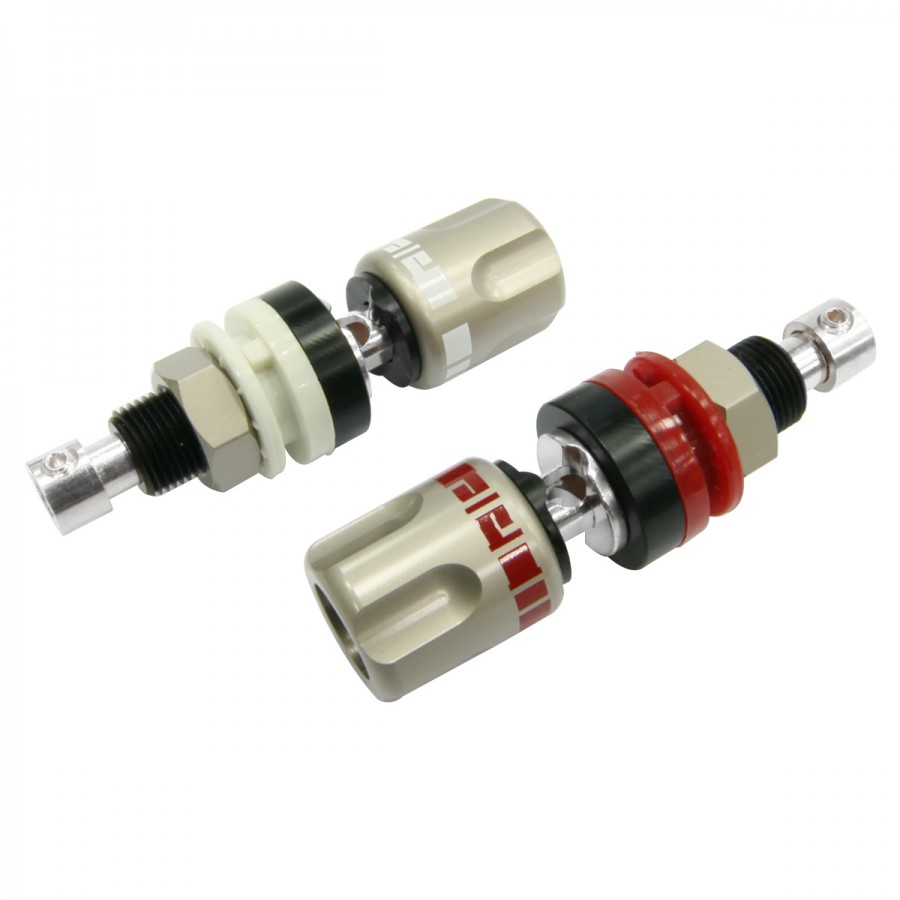

These aeco ABI-0611R speaker terminals offer excellent design quality. They use low-mass contacts made of high-purity tellurium copper with rhodium plating, ensuring both excellent conductivity and resistance to oxidation. The body of the terminal blocks is meticulously machined from a single piece of polyoxymethylene (POM) using CNC (numerical control). An internal cable is simply fitted using a screw system. These terminal blocks also accept bare wires (Ø4mm max), banana plugs and forks (Ø6/8mm).
Technical characteristics
Specifications | |
---|---|
Product type | Speaker terminals |
Contacts material | Tellurium copper (purity: ≥ 99%) |
Contacts plating | Rhodium |
Contacts resistance | < 0.2mΩ |
Body material | POM |
Mounting type | To screw |
Compatibility | Bare wires (max Ø4mm) Banana plugs Spades Ø6/8mm |
General | |
---|---|
Total dimensions | Ø16.5*50mm |
Color | Champagne |
Quantity | 2 speaker terminals (1 with red rings, 1 with white rings) |
Mounting type | To weld |
Connectic | Female |
Max panel thickness (mm) | 10.0 |
Accepts Banana Plugs | Yes |
Connector | Speaker terminal |
Contacts Material (Connector) | Tellurium Copper |
Contacts Plating (Connector) | Rhodium |
