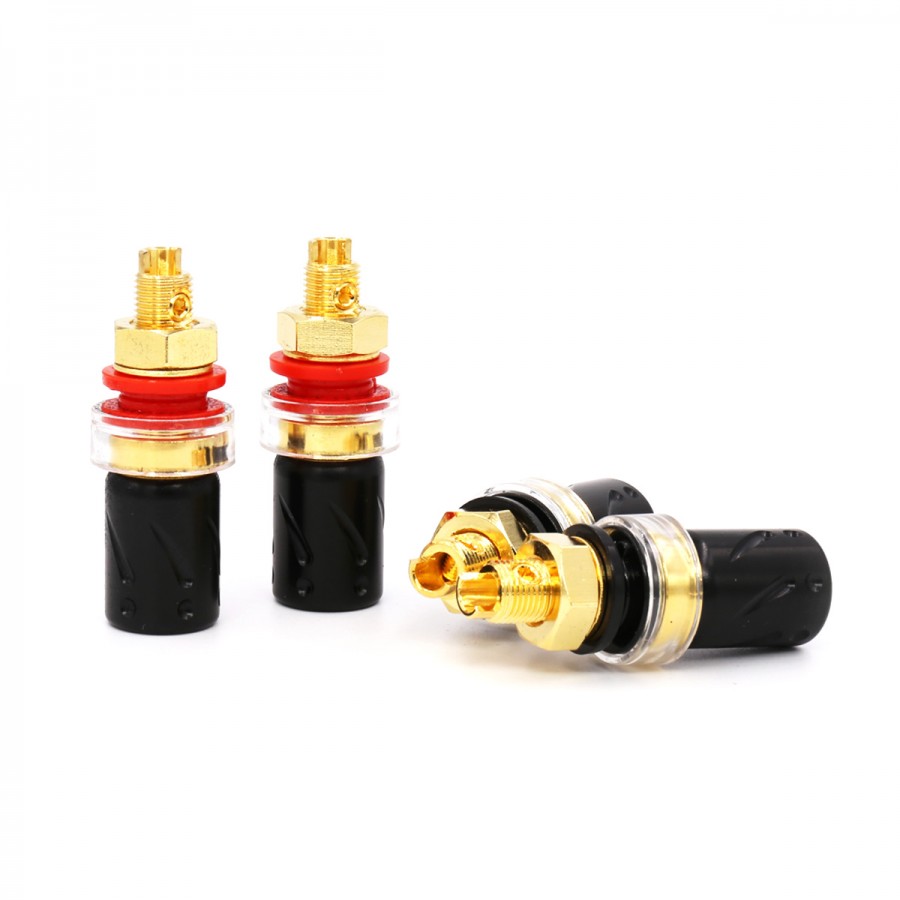

VIBORG BP-603 (G) Speaker Terminals Pure Copper Silver / Gold Plated 24k 3μ Ø4.5mm (Set x4)

With its BP-603 (G), Viborg offers exceptional loudspeaker terminals, thanks to a design using particularly high-end materials.

Average votes for this product
4.5 / 5

By buying this product you get 9 loyalty points


Reference : 12742
New product

95,00 €tax incl.

79,17 € tax excl.
Including 0,01 € for green tax

- +


Shipping date: 27-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Viborg BP-603G

Speaker Terminals Pure Copper Gold Plated 24K 3µ ⌀4.5mm

viborg BP-603G borniers hp

With its BP-603 (G), Viborg offers exceptional loudspeaker terminals, thanks to a design using particularly high-end materials.

Thus, the contact material of the terminal block is Pure Copper. A first point that attracts attention, copper being an excellent conductor. But Viborg goes further by offering a 3µ 24K gold plating. Gold therefore contributes to the conductivity of the signal but above all protects the connector against oxidation, ensuring a longer service life. Viborg also incorporates a silver sub plating in its connectors. This, always in the same perspective, allows to maximize the conductivity of the connector, Silver being the best conductor. Finally, the connector body is made of Brass, ensuring good durability. On the practical side, the terminals can either be screwed or receive banana plugs.

In short, these HP terminals are fully adapted to fit into a high-end HiFi audio system.

Technical characteristics

Specifications
ConductorPure Copper
3 Layer PlatingOFC Copper
Silver
Gold 24K 3µ
Housing materialBrass
Accepts banana plugsYes
ConnectionTo screw / To solder (hexagonal socket screw 2mm)
Cable diameter4.5mm
Housing dimensions15 x 21mm
Max panel thickness3.6mm
Drilling diameter11.5mm
Length48.8mm

Data sheet
Mounting typeTo screw
Mounting typeTo weld
ConnecticFemale
Max panel thickness (mm)3.5
Accepts Banana PlugsYes
ConnectorSpeaker terminal
Contacts Material (Connector)Copper
Contacts Plating (Connector)Gold
Contacts Plating (Connector)Silver

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.5 / 5
4 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
la suite
Sur lez ETI c'est Cuivre pur (IACS 102%)

Sur celles c'est du laiton recouvert d'argent et de cuivre (ou or me souviens plus)

C'est ce qui explique la différence et aussi le prix.
 (0)
 (1)
This review has been posted for VIBORG BP-603 (G) Speaker Terminals Pure Copper Silver / Gold Plated 24k 3μ Ø4.5mm (Set x4)
Note :
 3/5
Date :
son boucher
Par rapport aux ETI pur cuivre le son est boucher alors que les autres laisse tout passer
Sur un système montant et manquant de medium ça doit convenir mais pas pour moi d'où 3* sinon belle construction et présentation
C'est la même.probleme pour les bananes aussi
 (0)
 (0)
This review has been posted for VIBORG BP-603 (G) Speaker Terminals Pure Copper Silver / Gold Plated 24k 3μ Ø4.5mm (Set x4)
Note :
 5/5
Date :
Very well.....
The workmanship is very good.
For my amplifier Icepower 250asx2 they also fit quite well ..
Thanks and best regards to the team ...
 (0)
 (0)
This review has been posted for VIBORG BP-603 (G) Speaker Terminals Pure Copper Silver / Gold Plated 24k 3μ Ø4.5mm (Set x4)
Note :
 5/5
Date :
Top niveau
Borniers achetés suite à rénovation/upgrade interne de mes KLIPSCH Hérésy 2. Associé à du câble OFC 2.5 mm2 (bornier au filtre Bob Crites + HP), je suis vraiment très satisfait du résultat obtenu (douceur, détails, profondeur, précision). La différence est également sensible quand on augmente le niveau, tout reste en place !
 (1)
 (1)
This review has been posted for VIBORG BP-603 (G) Speaker Terminals Pure Copper Silver / Gold Plated 24k 3μ Ø4.5mm (Set x4)
