WBT-0708Ag Speaker Terminals SIlver (Set x4)

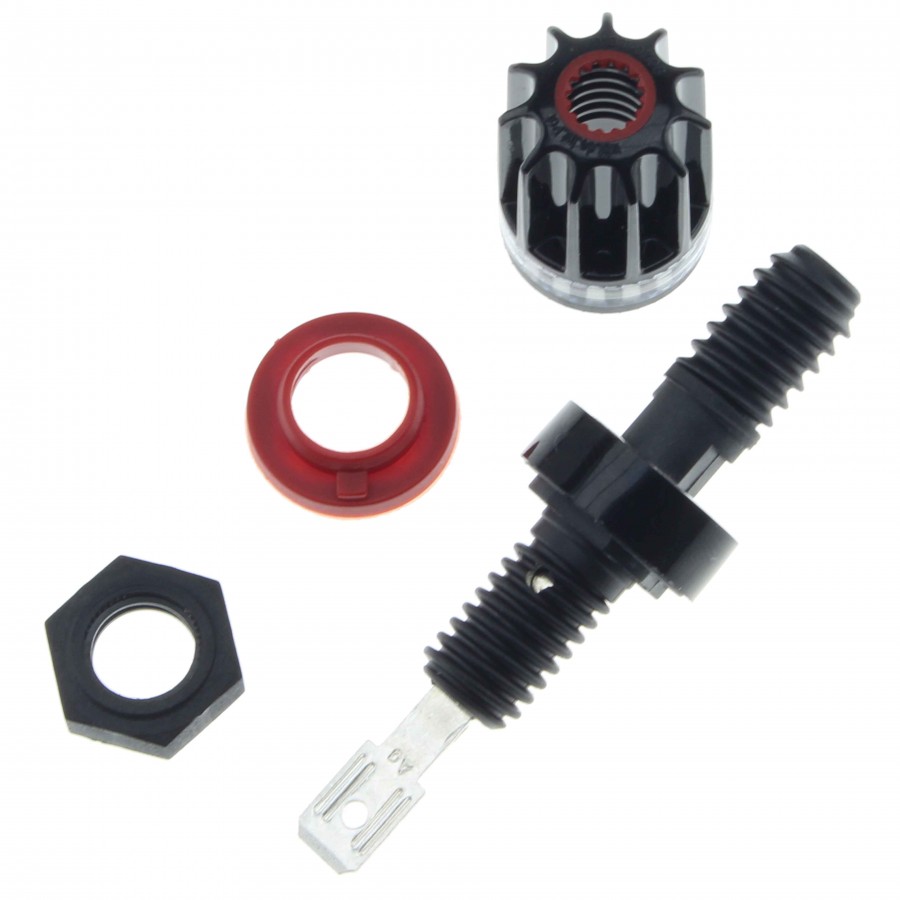

WBT-0708AG speaker terminals picture

Coming from the latest generation of development by WBT, the Nextgen 0708Ag speaker terminals are fitted with silver conductors. Thanks to the separation of the transmission line and the mechanical chassis, it is now possible to use superior quality materials for each of the elements of this terminal block. Although it is a better electrical conductor, copper or silver have some mechanical limitations which we have overcome by using high performance plastics.

In addition, the soul of this new terminal block consists of a single piece, thus avoiding any unnecessary resistance. The signal conductor is protected by a glass fiber matrix reinforced with mineral plastic and covered by a non-magnetic steel body. An additional elastomer damping system drastically limits the vibrations transmitted to the driver. The microphone effect is thus greatly reduced in favor of the precision of the transmitted sound signal. The design of this product makes every effort to ensure the best electrical isolation.

Dimensions des borniers haut-parleur WBT-0708Ag

Technical characteristics

Specifications
Product typeSpeaker terminals
Contact materialPure silver
CompatibilityBanana 4mm
Spade  6 / 8mm
Bare wire
Max. cable conductor sectionInternal and external 4mm² (11 AWG)
Internal connectionSolder lug or 6.3mm flat lug
Max pannel thicknessFrom 0.9 to 10mm (from 0.9 to 8mm with Puzzle plates)
Identification ring2x red
2x White
General
Weight15g/unit
Package4x WBT-0708Ag Silver speaker terminal

Data sheet
Mounting typeTo weld
ConnecticFemale
Max panel thickness (mm)10.0
Accepts Banana PlugsYes
ConnectorSpeaker terminal
Contacts Material (Connector)Silver
Contacts Plating (Connector)None
