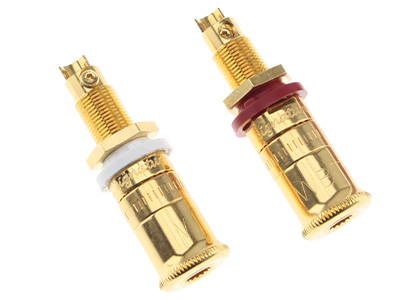

WBT-0730.11 speaker terminals are 24k gold-plated. They feature ingenious mechanics for extreme tightness and excellent conductivity. The integrated retaining mechanism (WBT patent) holds the banana plug firmly in place when the front locking nut is tightened, and thus not only protects the connection from accidental disconnection, but also ensures extremely high contact pressure. They also accept forks and crimped bare wires up to 6mm2 (9 AWG). The set is completed by two puzzle plates and a terminal block holder. The puzzle plates isolate the terminal block from its mounting plate, ensuring optimum fixing of the terminal and preventing it from turning on itself.
Technical characteristics
Specifications | |
---|---|
Product type | Speaker terminal |
Contact material | Copper alloy |
Contact plating | 24k gold |
Compatibility | Banana 4mm Spades 6 or 8mm Bare crimped wire |
Max. conductor cross-section | External : 6mm² (9 AWG) Internal : 10mm² (AWG 7) |
Internal connection | Crimping or soldering |
Max. pannel thickness | From 0.1 to 10mm (From 0.9 to 8mm with Puzzle plates) |
Identification ring | 1x red 1x white |
General | |
---|---|
Weight | 36g/unit |
Package | 2x Speaker terminals WBT-0730.11 |
Mounting type | To weld |
Connectic | Female |
Max panel thickness (mm) | 10.0 |
Accepts Banana Plugs | Yes |
Connector | Speaker terminal |
Contacts Material (Connector) | Copper Alloy |
Contacts Plating (Connector) | Gold |
