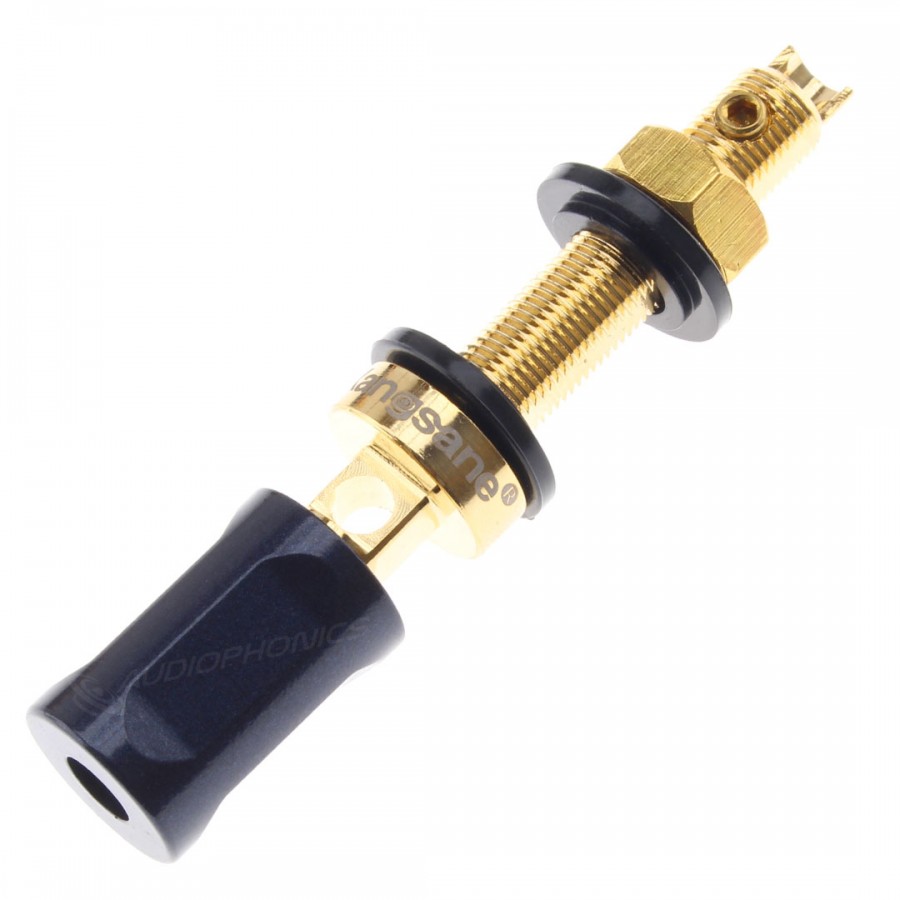

Xangsane's XS-6001AU LONG speaker terminals are ideal for mounting on enclosures and/or loudspeakers with wall thicknesses from 2mm to 18mm maximum. They feature non-slip seals. Connector contacts are made of gold-plated copper alloy for enhanced conductivity and resistance to corrosion and oxidation. The internal cable is mounted without soldering, using a hexagon socket screw. On the other side, these connectors accept forks and banana plugs.
Technical characteristics
Specifications | |
---|---|
Product type | Speaker terminals |
Contact material | Copper alloy |
Contacts plating | Gold |
Min. mounting panel thickness | 2mm |
Max. mounting panel thickness | 18mm |
Drilling diameter | 12mm |
Screw thread for mounting | Ø8mm |
Compatible connectors | Forks (Ø6/8mm) Bananas (Ø4mm) |
Internal cable assembly | Screw-in (hexagon socket screw) |
Marking rings |
General | |
---|---|
Total dimensions | 67 x Ø14mm |
Package | 1x Set of 4 Xangsane XS-6001AU LONG speaker terminals |
Mounting type | To screw |
Connectic | Female |
Max panel thickness (mm) | 18.0 |
Accepts Banana Plugs | Yes |
Connector | Banana / Spade |
Contacts Material (Connector) | Copper Alloy |
Contacts Plating (Connector) | Gold |
