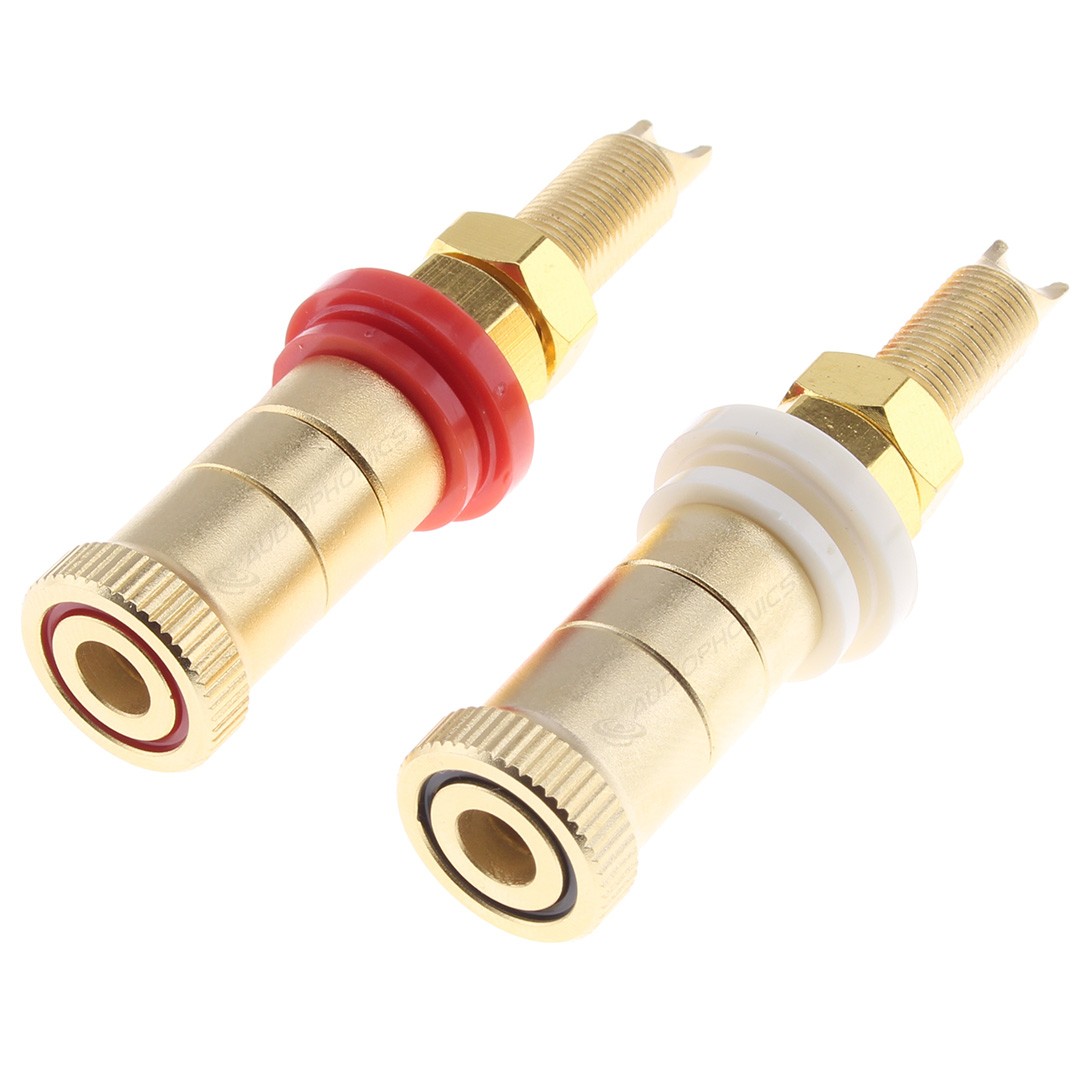

Xangsane's XS-T075 speaker terminals are ideal for mounting on enclosures with a maximum thickness of 20mm and a minimum of 3mm. Non-slip joints are provided for mounting. Connectors are made of gold-plated copper alloy for enhanced conductivity and resistance to corrosion and oxidation. Internal cable assembly is by soldering, while on the other side, these terminal blocks accept either spades (Ø6/8mm) or banana plugs (Ø4mm).
Technical characteristics
Specifications | |
---|---|
Product type | Speaker terminals |
Contact material | Copper alloy |
Contact plating | Gold |
Min. mounting panel thickness | 3mm |
Max. mounting panel thickness | 17mm |
Mounting screw thread | 8mm |
Compatible connectors | Banana plugs (Ø4mm) Spades (Ø6/8mm) |
Internal cable mounting | To weld |
Identification rings |
General | |
---|---|
Total dimensions | 66 x Ø16mm |
Package | Set x4 |
Mounting type | To weld |
Connectic | Female |
Max panel thickness (mm) | 17.0 |
Accepts Banana Plugs | Yes |
Connector | Banana / Spade |
Contacts Material (Connector) | Copper Alloy |
Contacts Plating (Connector) | Gold |
