Review of the Audiophonics MPA-S250NC by Audio Science Review

Posté le 2023-09-26 Tests & reviews, HiFi Tests 3127
AUDIOPHONICS MPA-250NC

Discover Audio Science Review's test of our MPA-S250NC Class D stereo power amplifier. As its name suggests, this amplifier is based on a Hypex Ncore NC252MP amplifier module and an integrated switching power supply (SMPS). The purpose of this amplifier is to achieve considerable power without sacrificing sound reproduction quality. It announces a power of 2x150W @ 8Ω, 2x250W @ 4Ω and 2x180W @ 2Ω, which is more than enough to accompany demanding loudspeakers and sonorize voluminous spaces. All components are enclosed in an aluminum case for efficient heat dissipation. In terms of connectivity, it naturally includes an output on speaker terminals as well as an XLR or RCA stereo input, depending on the version. A little extra, a 12V trigger input allows you to control its ignition in your Hi-Fi system. AudioScienceReview's test was based on the RCA version of the MPA-S250NC.

Audiophonics has produced one adorable stereo amplifier! I just want to sit there and look at it. Fortunately beauty goes beyond the skin, sporting a performance Hypex class D amplifier, producing top class results in all the measurements. You get near state of the art performance at bargain prices with scant space needed to dedicate to the amplifier.
Test du Audiophonics MPA-S250NC par AudioScienceReview (Amir)

Discover RCA and XLR versions of the MPA-S250NC

MPA-S250NC VERSION RCA

AUDIOPHONICS MPA-S250NC RCA

Class D Stereo Amplifier Ncore NC252MP 2x250W 4 Ohm

MPA-S250NC VERSION XLR

AUDIOPHONICS MPA-S250NC XLR

Class D Stereo Amplifier Ncore NC252MP 2x250W 4 Ohm

Audio Science Review's highlights of the test

MMPA-S250NC, a power amplifier that doesn't sacrifice sound quality:

  • Compact dimensions and a simple, clean design
  • Hypex Ncore NC252MP amplifier module with integrated SMPS power supply
  • Reliable protection circuit
  • Excellent noise and distortion performance
  • A flat frequency response curve with no load dependence (60kHz bandwidth)
  • Good crosstalk despite the fact that both channels are processed on the same module
  • Clean power curve and low distortion up to 190W power at 4 ohm load

MPA-S250NC measurements by Audio Science Review

AUDIOPHONICS MPA-S250NC measurement dashboard



SINAD

MPA-S250NC : excellent SINAD

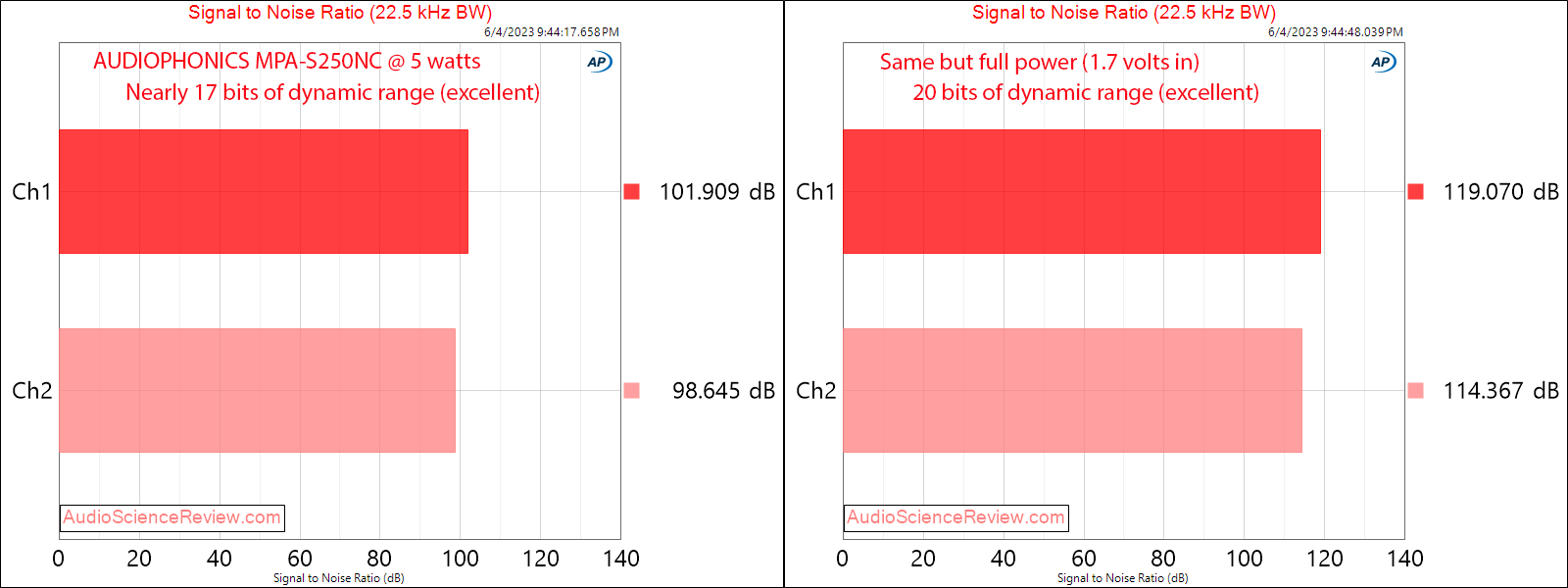

SNR

MPA-S250NC : Un très bon SNR



Réponse en fréquence

MPA-S250NC frequency response



Crosstalk vs Fréquence

MPA-S250NC: better-than-average crosstalk



Puissance vs THD+N

MPA-S250NC: high output power



Puissance

MPA-S250NC: a powerful amplifier<span id=
