Récepteur Bluetooth
Module Récepteur Bluetooth 4.2 aptX CSR64215

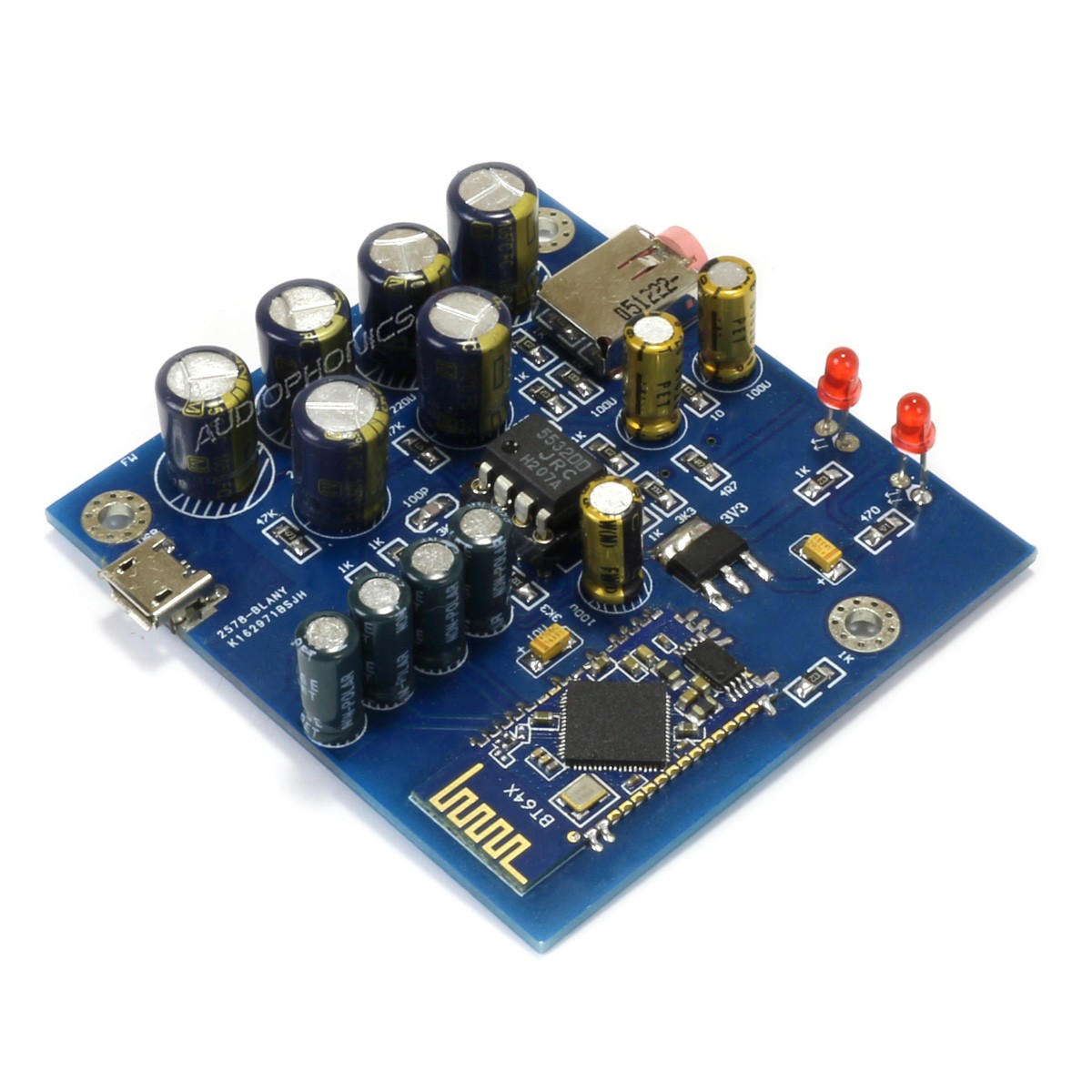

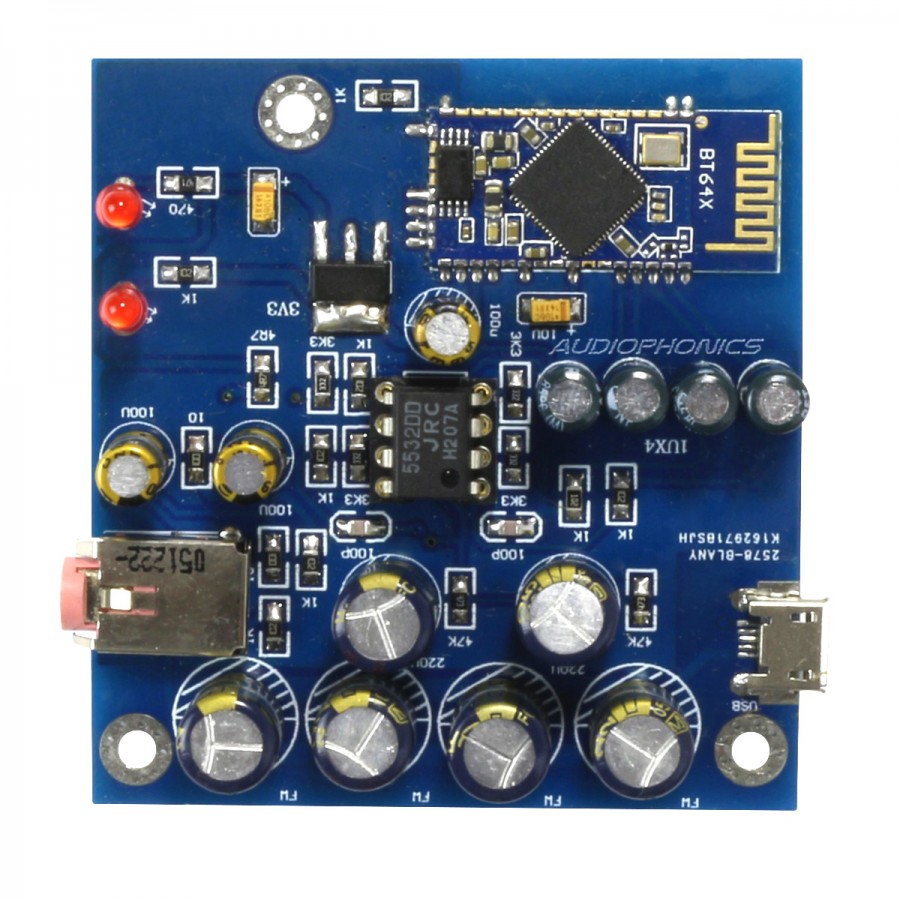

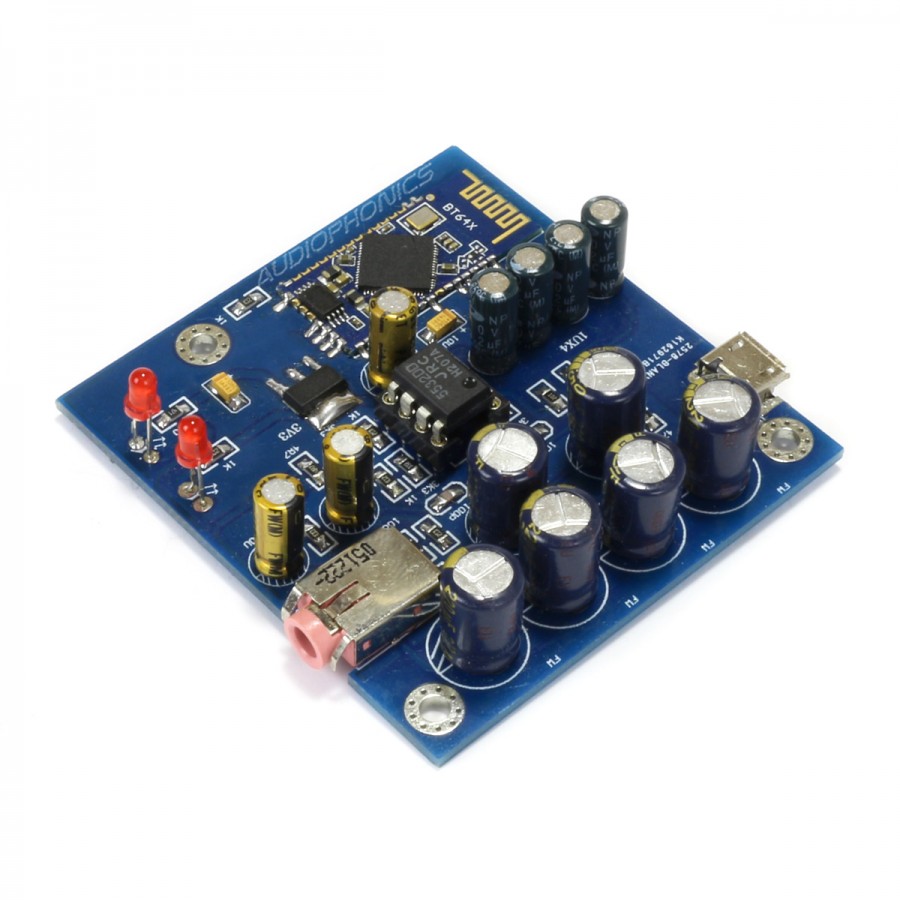

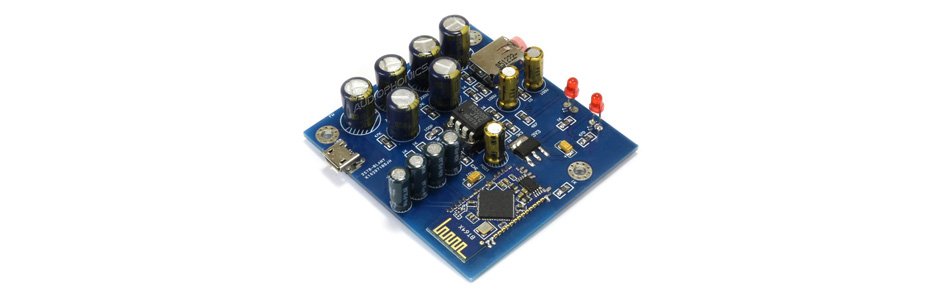

This Bluetooth 4.2 receiver module is equipped with a CSR64215 chip supporting the aptX protocol. This technology increases the transmission rate and improves the stability of the signal for clean playback. The module also incorporates a low noise AOP JRC 5532DDD mounted on DIP8 and therefore interchangeable.
On the connector side, the module is simple and efficient with power supply via Micro USB and output on a 3.5mm jack connector. For entry, simply stream your music from your smartphone and enjoy.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Bluetooth receiver |
| Bluetooth version | 4.2 |
| Transmission protocol | aptX |
| Input | Bluetooth 4.2 |
| Output | 1x Jack 3.5mm |
| Power supply | 5VDC 500mA via Micro USB (power supply not included) |

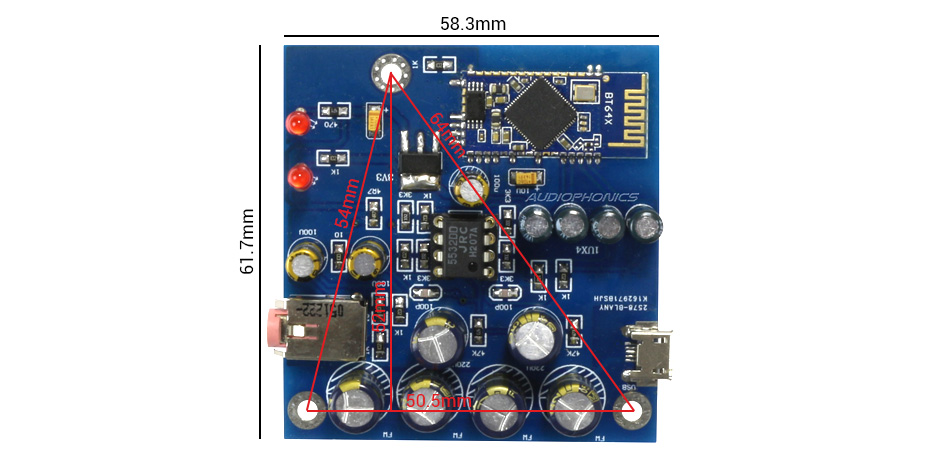

| Dimensions | 61.7 x 62.3 x 15.3mm |
