LQSC Bluetooth 4.2 Stereo Receiver Module 2x Jack 3.5mm
By buying this product you get 1 loyalty point
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

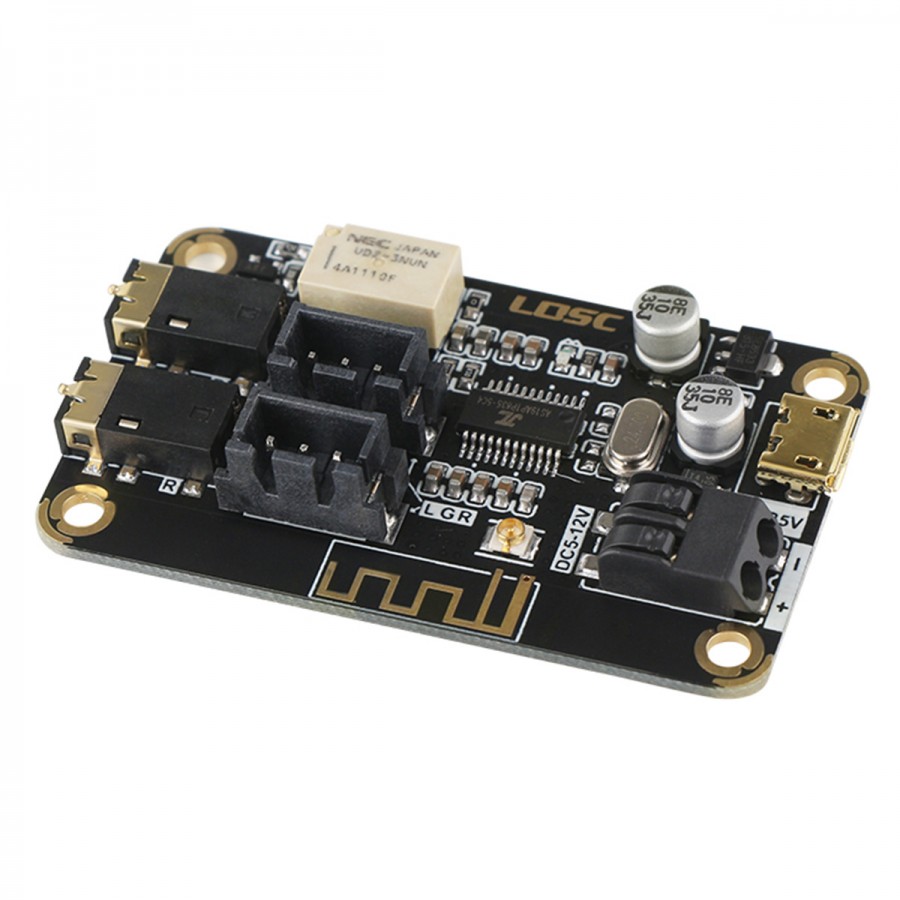

LQSC Bluetooth Receiver Module
This small Bluetooth 4.2 receiver module will allow you, within the framework of a DIY project, to take advantage of a wireless connectivity simple and fast of use. It becomes possible to broadcast your music remotely, directly from a smartphone or a tablet for example. In addition to this connectivity, the module embeds in input and output Jack 3.5mm as well as two XH2.54mm 3 pins connectors.
| 1 | Analog audio output |
| 2 | Jack 3.5mm output |
| 3 | Jack 3.5mm input |
| 4 | Micro USB 5VDC power input |
| 5 | 5-12VDC power input |
| 6 | Analog audio input |
| 7 | Bluetooth antenna |
| 8 | U.FL connector for external Bluetooth antenna |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Bluetooth receiver module |
| Inputs | Bluetooth 1* Jack 3.5mm 1* Analog input on XH 2.54mm 3 pins connector |
| Sorties | 1* Jack 3.5mm 1* Analog output on XH 2.54mm 3 pins connector |
| Bluetooth version | 4.2 |
| Bluetooth name | LQSC_BT |
| Operating temperature range | -40°C to 85°C |
| External antenna connector | U.FL format (antenna sold separately) |
| General | |
|---|---|
| Supply voltage | 5-12VDC on PCB connector OR 5VDC via Micro SD (power supply sold separately) |
| Dimensions | 55*32*9mm |
| Weight | 20g |
| Package | 1* Bluetooth receiver module 2* XH2.54mm 3 pins cable |
