WONDOM AA-AA11435 Cables Pack

This Wondom AA-AA11435 functional cable pack is specially designed for use with the Wondom AA-AB3116 (BRB3) Bluetooth receiver module.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 18563
New product

4,50 €tax incl.

3,75 € tax excl.

- +


Shipping date: 26-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

WONDOM AA-AA11435 Package Functional cables for BRB3 module

WONDOM AA-AA11435 pack photo

This Wondom AA-AA11435 functional cable pack is specially designed for use with the Wondom AA-AB3116 (BRB3) Bluetooth receiver module. It includes one Bluetooth antenna, one Bluetooth pairing cancellation cable, one Jack 3.5mm line out cable, one PH-4pins power cable, one speaker output cable and one Bluetooth LED indicator cable. All this wiring will enable you to make full use of Wondom's AA-AB3116 (BRB3) module.

Wiring diagram for Wondom module AA-AB41136

WONDOM AA-AA11435 pack connection diagram with AA-AB3116 module (BRB3)
Bluetooth Antenna

1. Bluetooth antenna

External Bluetooth antenna via U.FL connector.

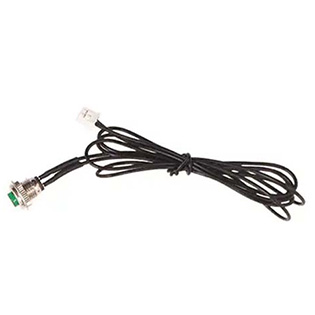

Bluetooth pairing cancellation cable

2. Bluetooth pairing cancellation cable

This Bluetooth pairing cancellation cable has a button and a 2-pin connector. Simply press the button once to cancel pairing.

3.5mm jack line output cable

3. 3.5mm jack line output cable

This cable has a 3.5mm jack connector. It allows connection to an amplifier, for example.

PH-4Pos power cable

4. PH-4Pos power cable

This discharge cable is used to power the Wondom AA-AB3116 (BRB3) module with a Wondom BCPB module.

Speaker output cable

5. Speaker output cable

2x 3W speaker output via bare wires.

Bluetooth LED indicator cable

6. Bluetooth LED indicator cable

Bluetooth status indicator LED for Wondom AA-AB3116 (BRB3) module.


Data sheet
InputNC
OutputNC
