WONDOM AA-AB41163 BEB1 Bluetooth Receiver Module

The Wondom BEB1 Bluetooth receiver module, part number AA-AB41163, is a small Bluetooth receiver module featuring a QCC5171 Bluetooth 5.3 receiver chip, an ES9018K2M DAC chip and a USB-C connector input.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Reference : 19277
New product

39,90 €tax incl.

33,25 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

WONDOM AA-AB41163 BEB1 Bluetooth Receiver Module 5.3 LDAC USB Interface DAC ES9018K2M 24bit 96kHz

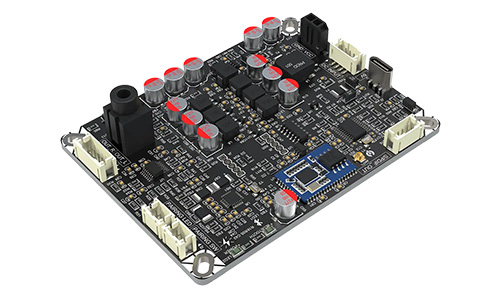

Photo of WONDOM module AA-AB41163 BEB1

The Wondom BEB1 Bluetooth receiver module, part number AA-AB41163, is a small Bluetooth receiver module featuring a QCC5171 Bluetooth 5.3 receiver chip, an ES9018K2M DAC chip and a USB-C connector input. The signal can be output on a variety of available connectors: 3.5mm jack, analog output PCB connector and Toslink optical or coaxial SPDIF PCB connector, thanks to a WM8804 processing chip. The Womdom BEB1 is therefore able to support sampling rates up to 24bit/96kHz, as well as high-definition Bluetooth codecs: aptX, aptX HD and LDAC. When it comes to powering the Wondom BEB1 module, there are several possibilities: via the USB-C 5V DC port, via a Molex Micro-fit 9-24V DC connector or via a PH 9-24V connector compatible with Wondom BCPB power modules.

WONDOM BEB1: Bluetooth 5.3 receiver

The BEB1 features Qualcomm's latest-generation QCC5171 Bluetooth receiver chip, enabling it to support high-definition codecs: aptX, aptX HD and LDAC. So you can enjoy wireless transmission at up to 990Kbps. An external Bluetooth antenna connector extends the range to 50m for added convenience.

Bluetooth QCC5171 receiver chip
Photo of ES9018K2M DAC chip

WONDOM BEB1 : DAC ES9018K2M

The ESS Technology ES9018K2M DAC chip enables the Wondom BEB1 module to support PCM streams up to 24bit 96kHz, all with a THD+N of -120dB and a DNR of up to 127dB.

WONDOM BEB1 : port USB-C DATA + ALIMENTATION

In addition to its Bluetooth input, the BEB1 features a DATA-compatible USB-C power port in UAC 2.0 protocol. This means that, in addition to powering the module, you can also transmit a PCM audio stream up to 24bit 96kHz via this USB-C port using your computer, for example.

WONDOM AA-AB41163 BEB1 module USB-C UAC 2.0 port
WM8804 interface

WONDOM BEB1: WM8804 optical / coaxial interface

Thanks to the WM8804 optical / coaxial signal processing interface, the Wondom BEB1 has a PCB connector output for recovering a Toslink optical or SPDIF coaxial signal.

Wondom BEB1: versatile connectivity

The BEB1 module has 3 outputs (2x analog and 1x optical) and 3 power supply options. This makes it easy to implement in any system with other modules, for example.

WONDOM AA-AB41163 BEB1 module connectors
1Bluetooth pairing button
23.5mm jack analog output
3Analog output on PCB connector
4External Bluetooth LED connector
5External Bluetooth pairing button connector
6LED power indication on PCB
7Bluetooth LED on PCB
8Bluetooth receiver module QCC5171
9Connector for Bluetooth antenna
10ES9019K2Mn DAC
11WM8804 Interface
12Optical Toslink / SPDIF coaxial output
13USB-C input/5V DC power supply
14PH 9-24V DC power connector (Wondom BCPB)
15Molex Micro-Fit 9-24V DC power connector

Technical characteristics

Specifications
Product typeBluetooth receiver module
Bluetooth chipQCC5171
DAC chipES9018K2M
SPDIF interfaceWM8804
InputsBluetooth
1x USB-C (Power + DATA)
Outputs1x 3.5mm jack analog output
1x Analog output on PCB connector
1x Toslink optical or SPDIF Coaxial output on PCB connector
Supported sample ratesPCM up to 24bit 96kHz
Supported Bluetooth codec SBC, AAC, aptX, aptX HD, LDAC
Bluetooth version5.3
USB-compatible protocolUAC 2.0
General
Power supplyDC5V via USB-C or 9-24V via PCB connectors (Micro Minifit/PH-4Pos)
Dimensions91.44 x 68.58mm
Gross weight138g
Package1x Bluetooth receiver module WONDOM AA-AB41163 BEB1
Wondom BEB1 module measurements

Data sheet
InputBluetooth
InputUSB
OutputPCB Connector
OutputJack 3.5mm

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :
