The new AOSHIDA BLAD-S5 is now available.
Bluetooth 5.1 Receiver QCC5125 DAC ES9018 aptX HD LDAC

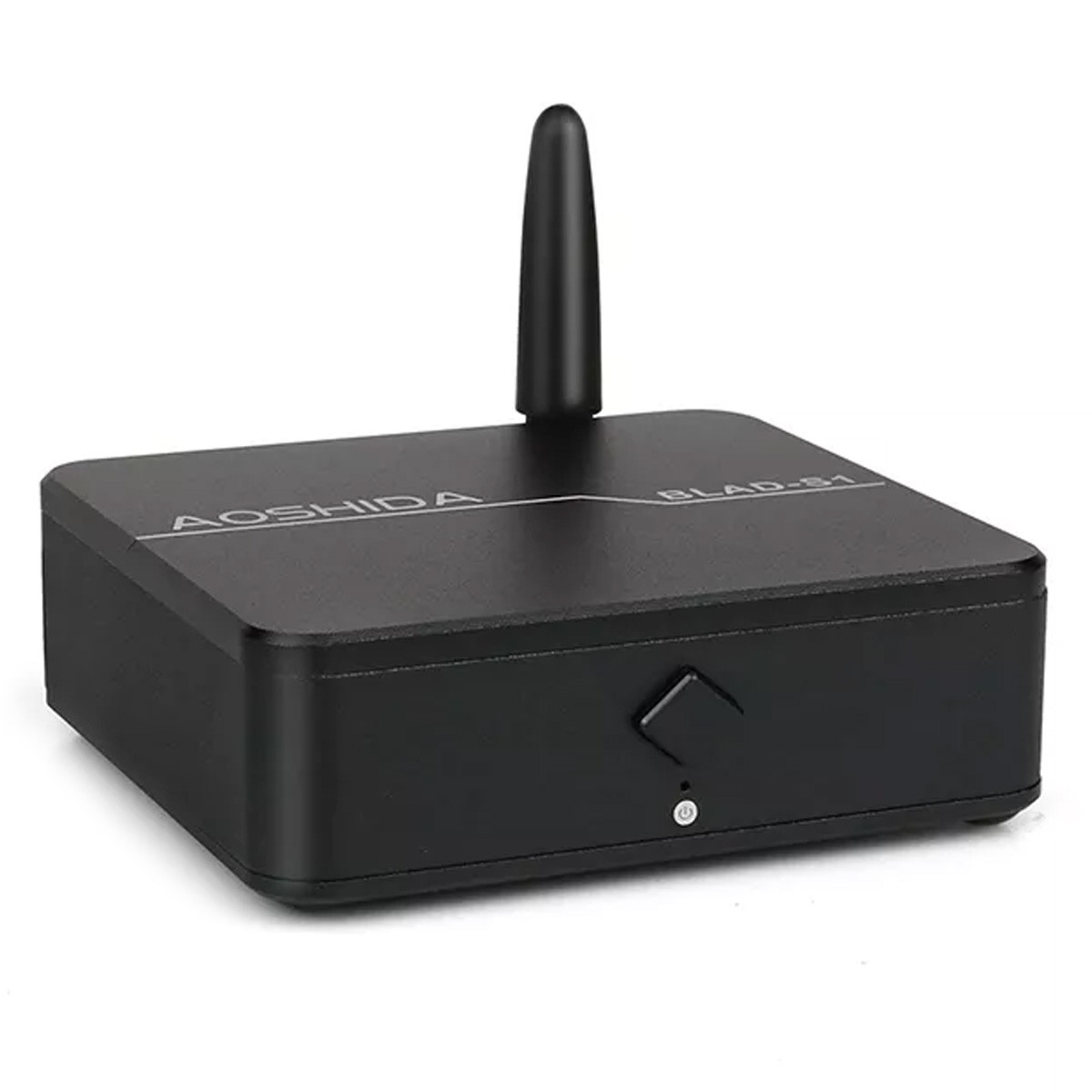

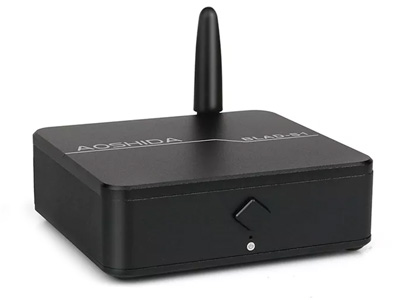

The Aoshida BLAD-S1 is an affordable, convenient and powerful Bluetooth receiver that will provide your audio system with wireless reception capability. It incorporates a Bluetooth 5.1 QCC5125 receiver chip that supports aptX, aptX HD and LDAC codecs, allowing for high-quality wireless sound reproduction. The decoding of the digital audio stream in analog is entrusted to a dedicated DAC chip ESS ES9018. In addition to Bluetooth, the BLAD-S1 provides a USB-C input. The output is made it choice in stereo RCA or via the hybrid output coaxial / optical 3.5mm.

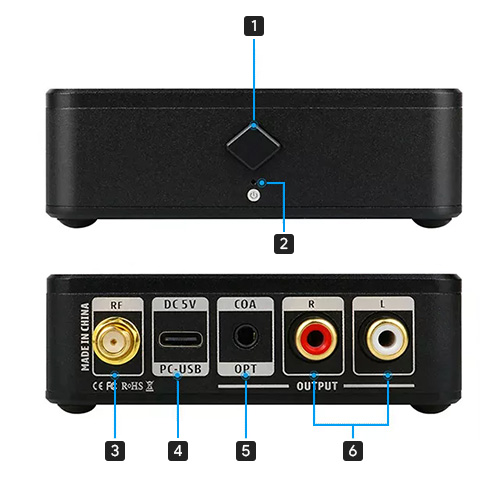

1 | ON/OFF - Play/Pause button |
2 | Status LED |
3 | Bluetooth antenna |
4 | USB-C input |
5 | Coaxial/Optical 3.5mm combined output |
6 | Stereo RCA output |
Specifications | |
---|---|
Product type | Bluetooth receiver |
Bluetooth version | 5.1 |
Inputs | Bluetooth 5.1 1x USB-C |
Output | 1x Stereo RCA 1x Optical/Coaxial |
Frequency response | 20Hz~20kHz (±0.5dB) |
Input sensitivity | 0dBFS |
Distorsion degree | 0.04% |
SNR | ≥114dB |
RCA output amplitude | 1.8Vrms |
Optical/Coaxial output amplitude | 0dBFS |
General | |
---|---|
Dimensions | 85*79*26.5mm |
Color | Black |
Package | 1x Aoshida BLAD-S1 1x Bluetooth antenna 1x Coaxial cable 1x USB cable |
Input | USB |
Input | Bluetooth |
Output | Coaxial SPDIF |
Output | RCA |
Output | Optical Mini-Toslink |
DAC / ADC Chip | ES9018 |
Color | Black |
Transmission / Reception protocol | Bluetooth |
Supported Bluetooth codecs | aptX |
Supported Bluetooth codecs | aptX Adaptive |
Supported Bluetooth codecs | AAC |
Supported Bluetooth codecs | aptX HD |
Supported Bluetooth codecs | SBC |
