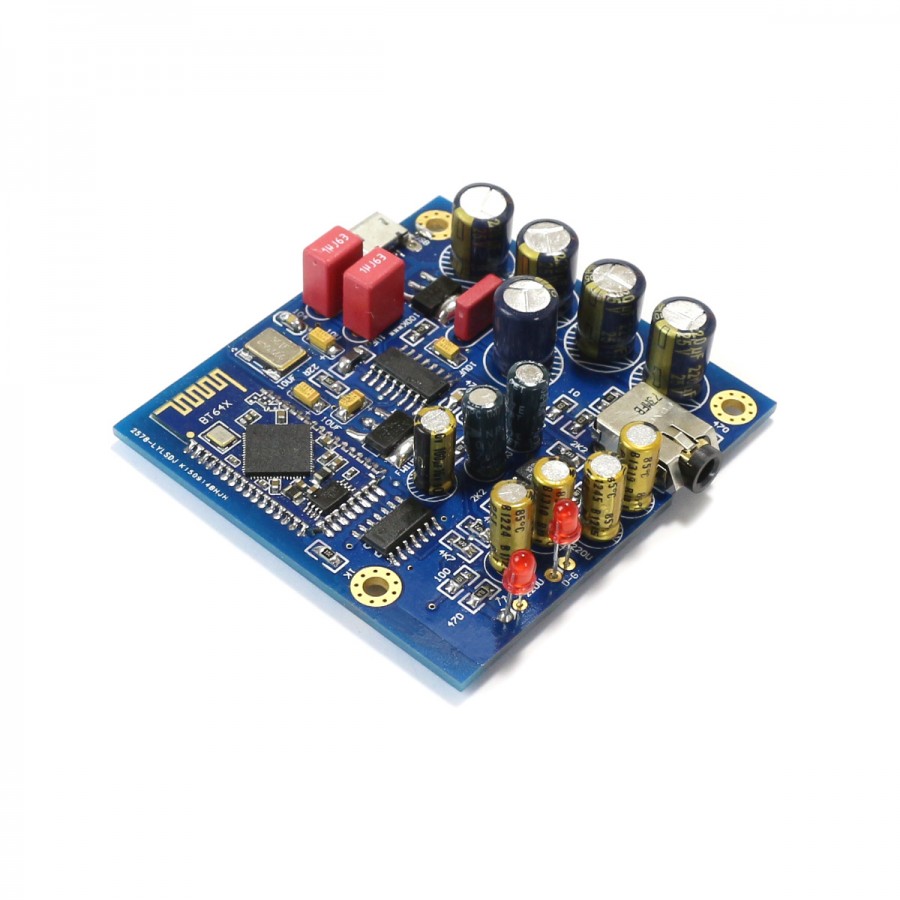

Bluetooth Receiver 4.2 CSR64215 with ES9023 DAC

This device includes both a CSR 64215 Bluetooth receiver and an ES9023 DAC. A solution both practical and powerful for a low pricing.

Average votes for this product
5.0 / 5

By buying this product you get 3 loyalty points


Reference : 12484
New product

34,90 €tax incl.

29,08 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Bluetooth receiver and DAC

CSR64215 & ES9023

récepteur bluetooth csr64215 et dac es9023

Efficient Bluetooth reception...

For its Bluetooth reception section, this device is equipped with a Qualcomm CSR64215 chip. This one offers excellent features, giving it a flawless reception, for a neat audio reproduction. Thus, this one was thought especially for an audio use. In addition, the chip takes advantage of Bluetooth 4.2 and A2DP for higher data transmission speed and stability. The module also supports the aptX and aptX Low-Latency codec, allowing you to achieve audio quality very close to that of the CD.

... Backed by a high quality DAC

The circuit also includes an ES9023 ESS DAC ESS for the Digital/Analog Conversion section. This chip, now recognized, allows you to achieve excellent audio performance at a low cost. This one uses the Hyperstream and Time Domain Jitter Eliminator architecture allowing a drastic reduction of the jitter.

High quality components

Although this device is offered at a very reasonable price, it also includes components of the highest quality. This includes, for example, a JFET operational amplifier to reduce the output impedance, Nichiconn Panasonic or WIMA capacitors, or an oscillator to reduce the jitter.

Technical characteristics

Specifications
Bluetooth ChipQualcomm CSR64215
Bluetooth type4.2
Bluetooth Technologies / Codec / ProtocolsA2DP
aptX Support
aptX Low-Latency Support
DACESS ES9023
DAC Architecture & TechnologieHyperstream
Time Domain Jitter Eliminator
DNR112dB
THD+NAt 0dBFS : 0.002% (Max. 0.006%)
OutputJack 3.5mm
General
Power supplyMicro USB 5V
Dimensions62 x 59 x 15mm

Data sheet
InputBluetooth
OutputJack 3.5mm
ColorBlack
Transmission / Reception protocolBluetooth

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
5 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Petit mais costaud !
Première fois que j'achète ce type de matériel. Branché en direct sur les CMS65 Focal en lecture de mon PC du boulot ou de mon téléphone Sony Xperia (son meilleur avec le PC) le son est excellent. Idem en passant par ma table de mixage Behringer X1204USB. Facilité d'utilisation parfaite. Un petit interrupteur pour l'arrêter aurait été top mais il est sur une multiprise avec un bouton ON/OFF du coup pas de souci. Je crois même pouvoir le brancher via USB sur la table... Au vu de la taille et du poids quand on le sort du carton, on s'attend à être déçu...et bien non ;-)
 (0)
 (0)
This review has been posted for Bluetooth Receiver 4.2 CSR64215 with ES9023 DAC
Note :
 5/5
Date :
Excellent module réception BT
Un excellent module qui enterré définitivement la connexion par câble d'un smartphone au système.
Même sur une installation basique le son est transfiguré (image stéréo, dynamique équilibre et précision).
Sur une installation plus qualitative, ça concurrence directement mon PC DAC et son ESI Juli@.
La portée n'est pas exceptionnelle je dirais 5-7m en champ libre, mais la qualité et le confort compensent largement cette limitation.
J'en suis à me poser la question du FLAC sur serveur Vs Deezer en stream HQ avec ce système ultra compact a bas coût !
 (0)
 (0)
This review has been posted for Bluetooth Receiver 4.2 CSR64215 with ES9023 DAC
Note :
 5/5
Date :
Great Diy module!
Lets see some things before my review!
If your job is electronics (repairing, service, and more) it is a great idea to buy this very nice module as diy unit, ofcourse because the cost is much lower than a complete unit!
You must be familiar with this type of electronics!
The second thing is that, this module is great and with a rich sound, really very close to CD quality.
One thing that i don't like to much (and believe me IT IS NOT UNIT PROBLEM) is that, the bluetooth source (your mobile phone for example) MUST be as close to the unit for better results!
In other words if this unit sold with an external antenna, i believe that be the very first choice...in low price!

Thanks Audiophonics for your great products!!
 (0)
 (0)
This review has been posted for Bluetooth Receiver 4.2 CSR64215 with ES9023 DAC
Note :
 5/5
Date :
Au top !
Fonctionne super bien. Pratique avec son alimentation usb 5v et sa sortie Jack 3.5. A peine démarre qu'il est déjà reconnu par le périphérique. Très content de cet achat. Merci audiophonics
 (1)
 (0)
This review has been posted for Bluetooth Receiver 4.2 CSR64215 with ES9023 DAC
Note :
 5/5
Date :
Excellent !!!
Réellement très surpris par la qualité de traitement du signal, rendu vraiment pertinent, les aigus sont au rendez-vous tout comme les graves, il n'y a pas de découpage des fréquences grossier... Totalement satisfait !! Ultra compact pour une dissimulation absolu, utilisation basique, connexion simplissime.
 (0)
 (0)
This review has been posted for Bluetooth Receiver 4.2 CSR64215 with ES9023 DAC
