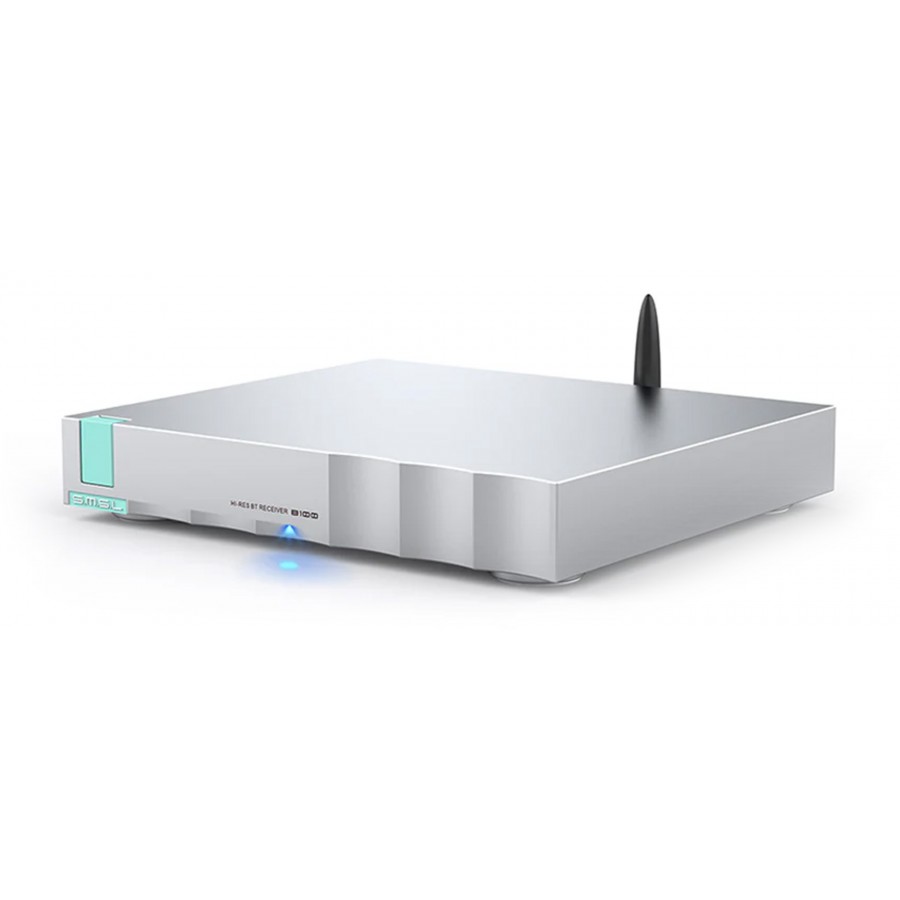

SMSL's B100 is a Bluetooth 5.1 receiver with versatile outputs and a rigorous, high-quality design. It is based on an AK4493S DAC chip to deliver the most faithful and crystal-clear sound reproduction possible, ensuring a signal-to-noise ratio of 128dB and a harmonic distortion rate of 0.0002%. All of this is housed in a magnificent CNC-machined aluminium case to ensure that the aesthetics match the technical performance of the device.
SMSL's B100 is based on a latest-generation AK4493S DAC chip, offering low harmonic distortion and a dynamic range of 128dB. This is powered by a low-noise switching mode power supply, reducing interference and guaranteeing stable performance for your audio installation.
The B100 uses a 5.1-standard Bluetooth chip, compatible with the LDAC, UAT and AptX HD high-resolution transmission protocols, enabling the signal to be transmitted at up to 24bit 192kHz. On the output side, this device offers excellent versatility with a stereo RCA output, a coaxial output, an optical output and an AES/EBU output.
1 | ON/OFF button |
2 | LED indicator |
3 | RCA line output |
4 | Coaxial output |
5 | Optical Toslink output |
6 | Bluetooth antenna |
7 | AES/EBU output |
8 | Power input |
Technical characteristics
Specifications | |
---|---|
Product type | Bluetooth receiver |
Input | Bluetooth 5.1 |
Outputs | 1x Stereo RCA 1x Coaxial 1x Optical Toslink 1x AES/EBU |
Output level | 2Vrms |
THD+N | 0.0002% (113dB) |
Dynamic range | 128dB |
SNR | 128dB |
Sampling rate | 44.1 ~ 192 kHz |
Bluetooth specifications | UAT: 24bit/192kHz (1200kbps) LDAC: 24bit/96kHz (990kbps/660kbps/330kbps) apt-X HD: 24bit/48 kHz_576kbps aptX: 16bit/48 kHz_352kbps SBC: 16bit/44.1 kHz_328kbps AAC: 16bit/44.1 kHz_320kbps |
General | |
---|---|
Supply voltage | 100-240V AC |
Power consumption | In use: <2W Standby: <0.1W |
Dimensions | 200 x 34 x 175mm |
Weight | 870g |
Package | 1x SMSL B100 1x Power cable 1x Bluetooth antenna |
Input | Bluetooth |
Output | Optical Toslink |
Output | Coaxial SPDIF |
Output | RCA |
Output | AES/EBU |
DAC / ADC Chip | AK4493S |
Color | Silver |
Transmission / Reception protocol | Bluetooth |
Supported Bluetooth codecs | SBC |
Supported Bluetooth codecs | aptX |
Supported Bluetooth codecs | LDAC |
Supported Bluetooth codecs | AAC |
Supported Bluetooth codecs | aptX HD |
Supported Bluetooth codecs | UAT |
