SOMMERCABLE MERIDIAN SP225 FG Speaker Cable OFC Copper FRNC Shielded 2x2.5mm² Ø 8.3mm

Average votes for this product
5.0 / 5

No loyalty points for this product.


Reference : 9922
New product

6,50 €tax incl.

5,42 € tax excl.

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

SOMMER CABLE - SC-MERIDIAN SP225 FG

Where it's going or not ...

the acousticians are at work: they do not spare the cables, because they never have time to take precautions. This sturdy cable is specially designed for the connection of speakers and technically satisfies all the requirements. Its low oxygen copper cores ensure excellent acoustic characteristics and long service life. All versions with PVC sheathnt easily rollable. The variants SP215 and SP225 are now equipped with very flexible cores composed of 0,15 mm copper strands!
New versions: FRNC and E30 (according to IEC228, IEC332- / 1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1 / 2, IEC 60754-2) and the OFFROAD version olive green "MAJOR INVISIBLE" with an actual section of 2 x 2.5 mm².

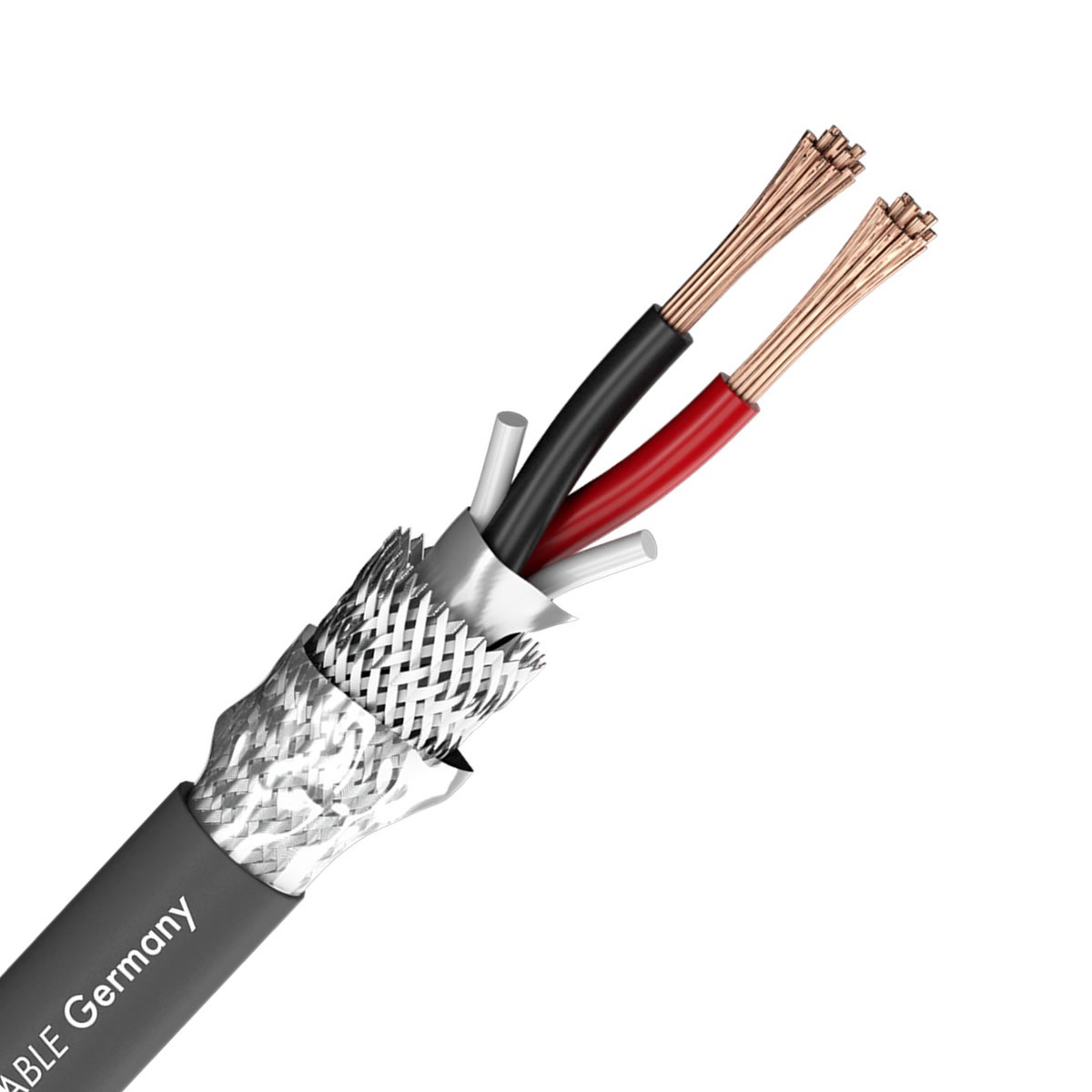

Another new feature is the MERIDIAN FG armored version, for indoor and outdoor installations, with double screen (copper braid and AL sheet) and a halogen-free, flame-retardant outer sheath (classification IEC 332.3). Because of its composition, this version is not suitable for mobile applications.

ADVANTAGES:

  • Flexible (PVC and PUR versions) and easily rollable
  • Low diameter
  • Long service life, due to the special sheath
  • Competitive price
  • Also available in PMB, FRNC and shielded versions


USE:

  • Various acoustic installations
  • Fixed installation, also for E30 and FRNC versions
  • For the ELA technique
  • Wiring of hi-fi systems
  • External mobile employment (PUR version)
Specifications:
Constitution(2LIY2,50mm2) Y
diameter 8.3 mm
AWG13
Number of Conductors2 x 2.5 mm2
Envelope material, insulation FRNC (mode C)
Copper strands per core 50 x 0.25 mm
Conductor insulation, diameter 3.05 mm
Operating temperature min. -30 ° C
Operating temperature max. 70 ° C
Weight per m
Colordark gray

Electrical Specifications:
Capacity metric cond./cond.136 pF
Odometer Resistance, Conductor<7.5 Ohm
Resistance, insulation> 5 MOhm

Data sheet
Diameter (mm)8.3
Length (m)Sold by length
Number of conductors2
Insulation materialPVC
ShieldingYes
Section (mm²)2.5
Conductors material (Cable)Copper
Conductors Plating (Cable)None
Ground / ShieldingYes
