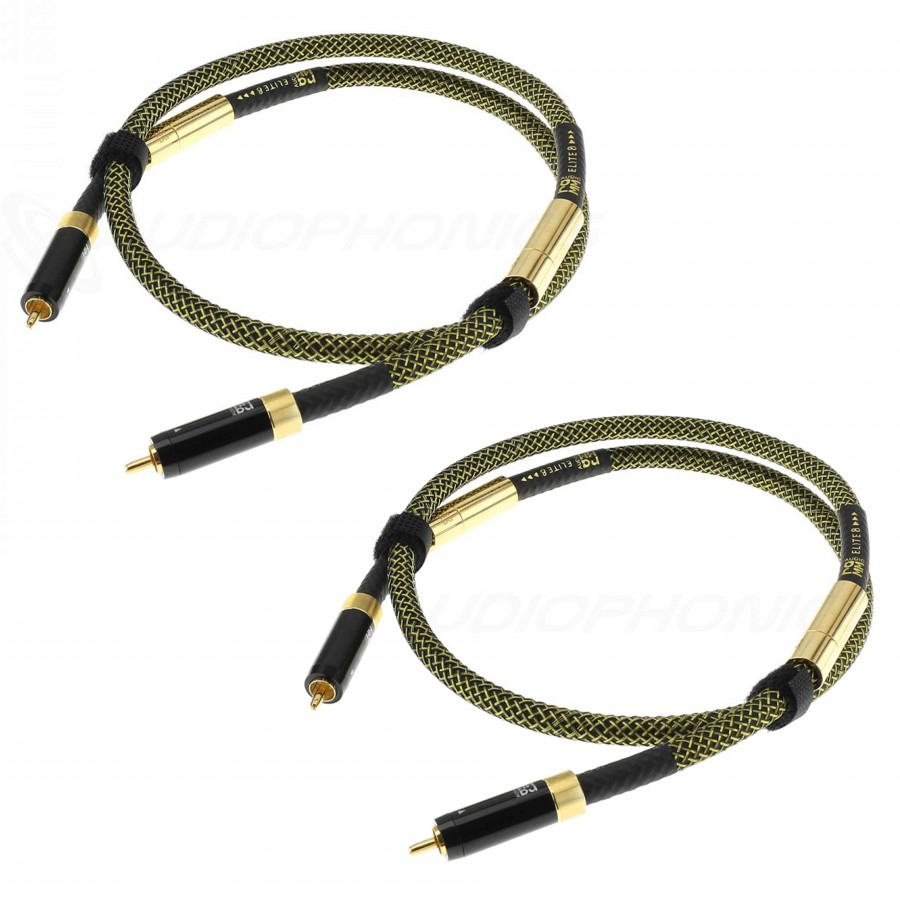

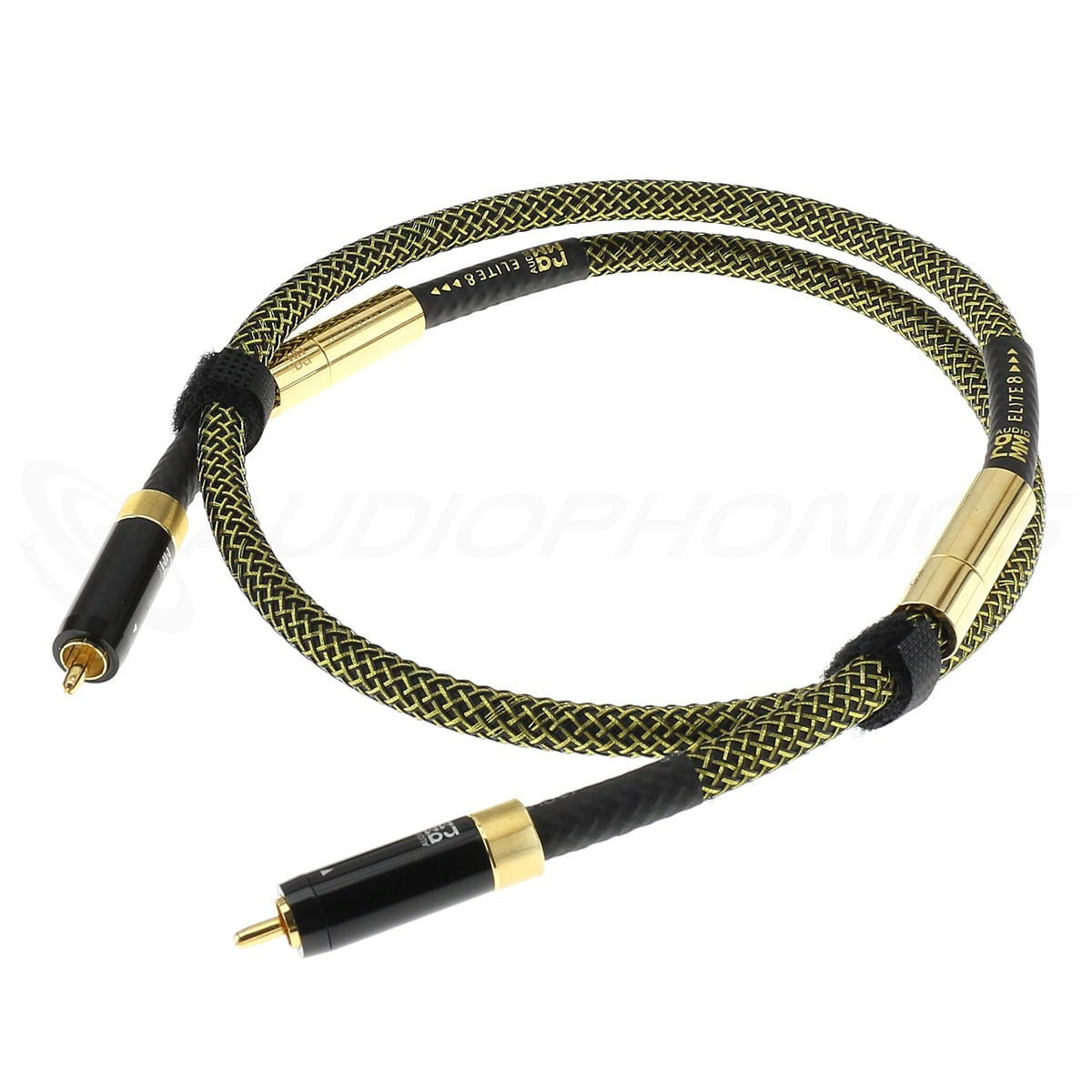

RAMM AUDIO ELITE 8 PREMIUM RCA Cables OCC Copper Cryo NBU Floating Ground Gold Plated 5m (Pair)

These high-end Ramm Audio Elite8 Premium RCA cables benefit from a very high quality design designed to ensure the best audio reproduction: OCC Copper conductors, cryogenic processing and floating mass, everything is done to promote optimal signal transmission.

No customer reviews yet, login to write a review.

By buying this product you get 47 loyalty points


Reference : 16496
New product

479,00 €tax incl.

399,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 13-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Ramm Audio Elite8 Premium

RCA Cables OCC Copper Cryo NBU Floating Ground Gold Plated 5m (Pair)

Ramm Audio Elite8 Premium Câbles RCA Cuivre OCC Cryo NBU Masse Flottante Plaqué Or 1m (La paire)

These RCA Ramm Audio Elite8 Premium high-end cables offer a very high quality design, thinked to ensure the best possible audio reproduction. Their conductors are made of pure OCC Copper, allowing excellent signal conductivity. These conductors also undergo cryogenic processing in order to further improve signal transmission quality.

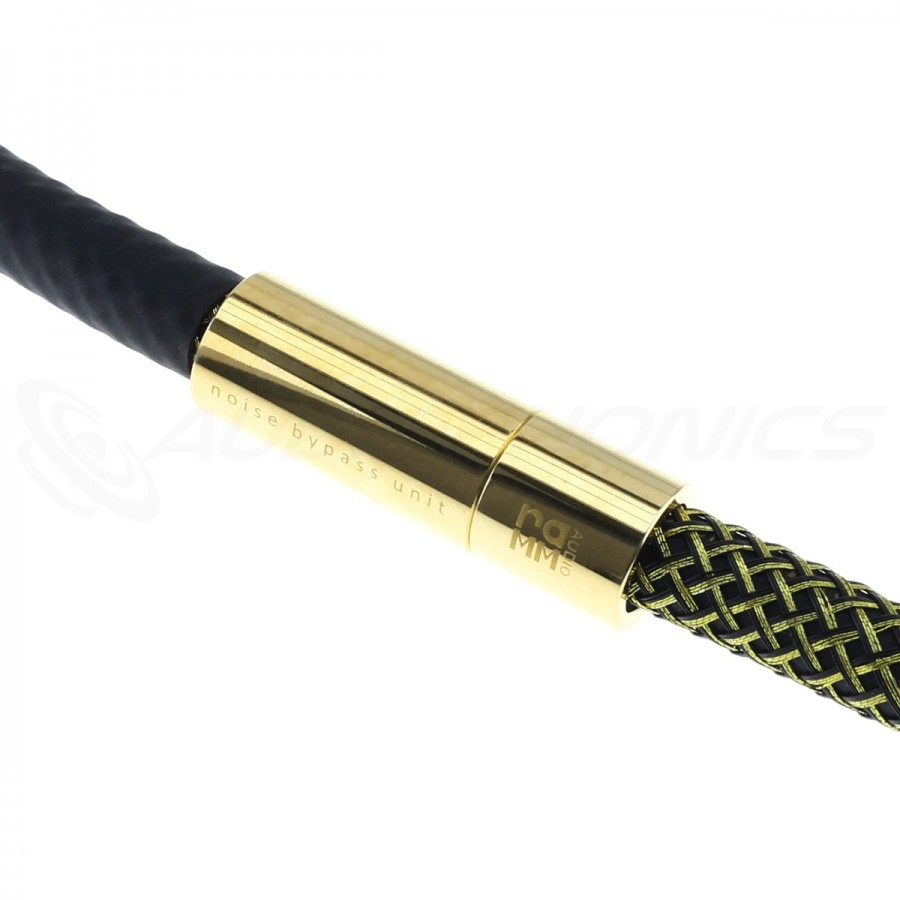

The assembly of the cables is particular since they take advantage of the NBU technology for Noise Bypass Unit. Thus, they integrate a floating ground, consisting in separating the shielding ground from the signal ground, making the Elite8 Premium very quiet cables thanks to a reduced noise at the maximum. The shielding ground, connected on one side only, functions as a Faraday cage, protecting the conductors from the waves and interferences.

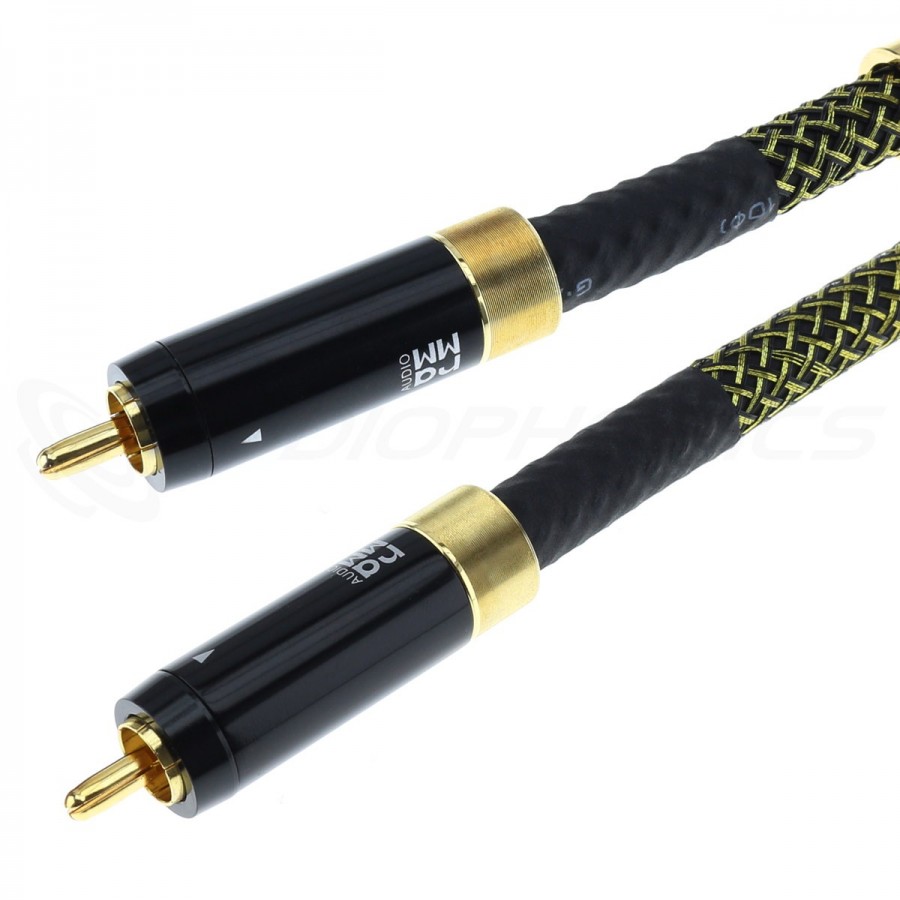

The Elite8 Premium ends with high quality connectors with gold-plated Tellurium Copper contacts, ensuring both excellent conductivity and high oxidation resistance.

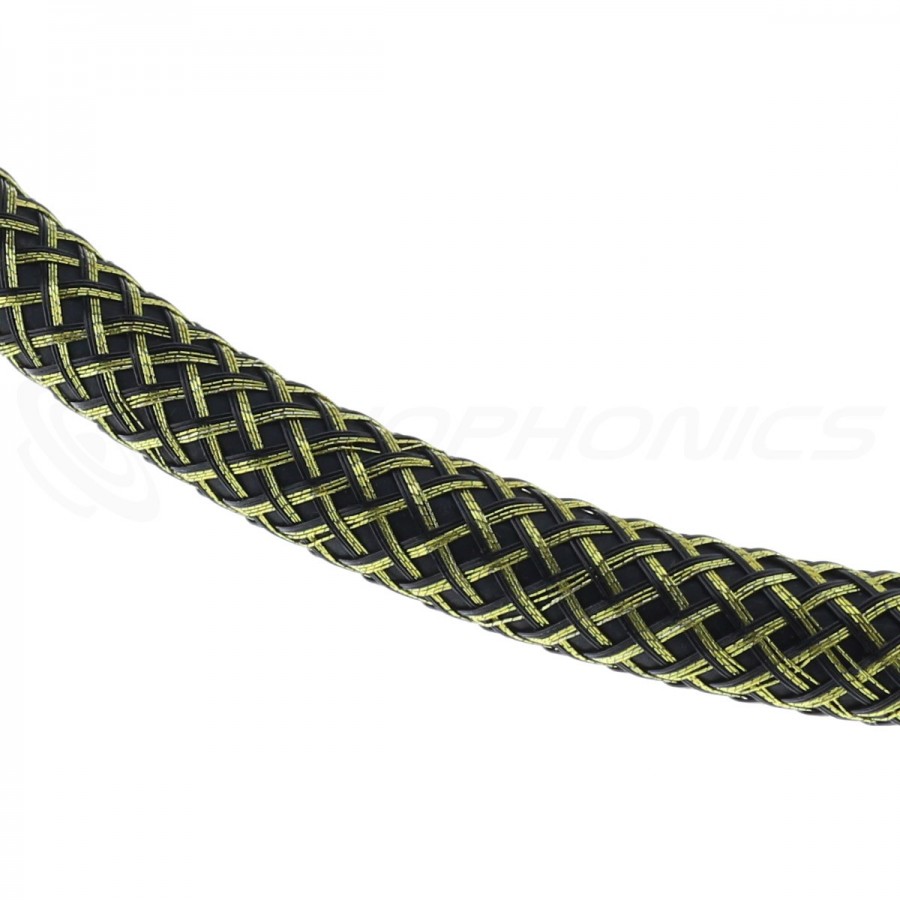

Finally, a magnificent black and gold nylon sheath covers the cable, giving it better resistance to mechanical stresses and a magnificent aesthetic.

Ramm Audio Elite8 Premium Câbles RCA Cuivre OCC Cryo NBU Masse Flottante Plaqué Or 1m (La paire)

Since these cables have a floating ground assembly, they have a connection direction that must be respected in order to take advantage of their benefits and not generate noise. The connection direction is indicated by 3 arrows on the cables.

Ramm Audio Elite 8 : Composition diagram

Ramm Audio cables comparison

Elite 8

Elite-XTRA

Elite 72 (E72)

Mozart2

Cable geometry

Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise

Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise

Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise

Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise

Conductors

Single-core OCC copper

Single-core OCC copper

Single-core OCC copper

Single-core OCC copper

Number of conductors

3 individually shielded conductors

2 individually shielded conductors

2 individually shielded conductors

2 individually shielded conductors

Conductor composition

3 wires of 0.65mm, 0.60mm and 0.55mm individually wrapped in silk thread

2 x 0.5mm PP-insulated wires
3 x 0.5mm bare wires

3 x 0.5mm bare wires

2 x 0.5mm PP-insulated wires
1 x 0.6mm bare wire

Drain wire

3 x 0.6mm OFC monocrystalline copper strands

3 x 0.5mm OFC monocrystalline copper strands

3 x 0.5mm OFC monocrystalline copper strands

1 x 0.65mm OFC monocrystalline copper wire

Dielectric

Cotton filling
PP rods

Cotton filling
PP rods

Cotton filling
PP rods

Cotton filling
Conductors shielded by copper foil

Capacitance (pF/m)

140

203.51

203

155

Resistance (Ω/m)

0.024

0.03274

0.033

0.028

Inductance (µH/m)

1.4

1.31394

1.32

1.25

Characteristics

Natural, pure and transparent sound with smooth musicality and exceptional sound image. Quiet, excellent noise and interference rejection

Clean, natural signal transfer for dynamic performance with better-defined deep bass and smoother highs

Musical, transparent and smooth with excellent sound image

Sound image with highlighted voices. Natural sound with low distortion and noise

Connectors

Balanced connection, usually XLR

Single-ended connectors, usually RCA

Single-ended connectors, usually RCA

Single-ended connectors, usually RCA

Outer diameter

9.2mm

9.2mm

8.2mm

9mm

Technical characteristics

Specifications
Product typeRCA Cable
ConnectorsMale RCA
Length5m
Cable conductors materialOCC Copper
Floating ground
Cryogenic treatment
Connectors contacts materialTellurium Copper
Connectors contacts platingGold
Cable diameterØ9mm
QuantitySold by pair (2 cables)

Data sheet
Length (m)5.0
ShieldingYes
Section (mm²)N/A
ConnectorRCA
Conductors material (Cable)Copper
Conductors Plating (Cable)None
