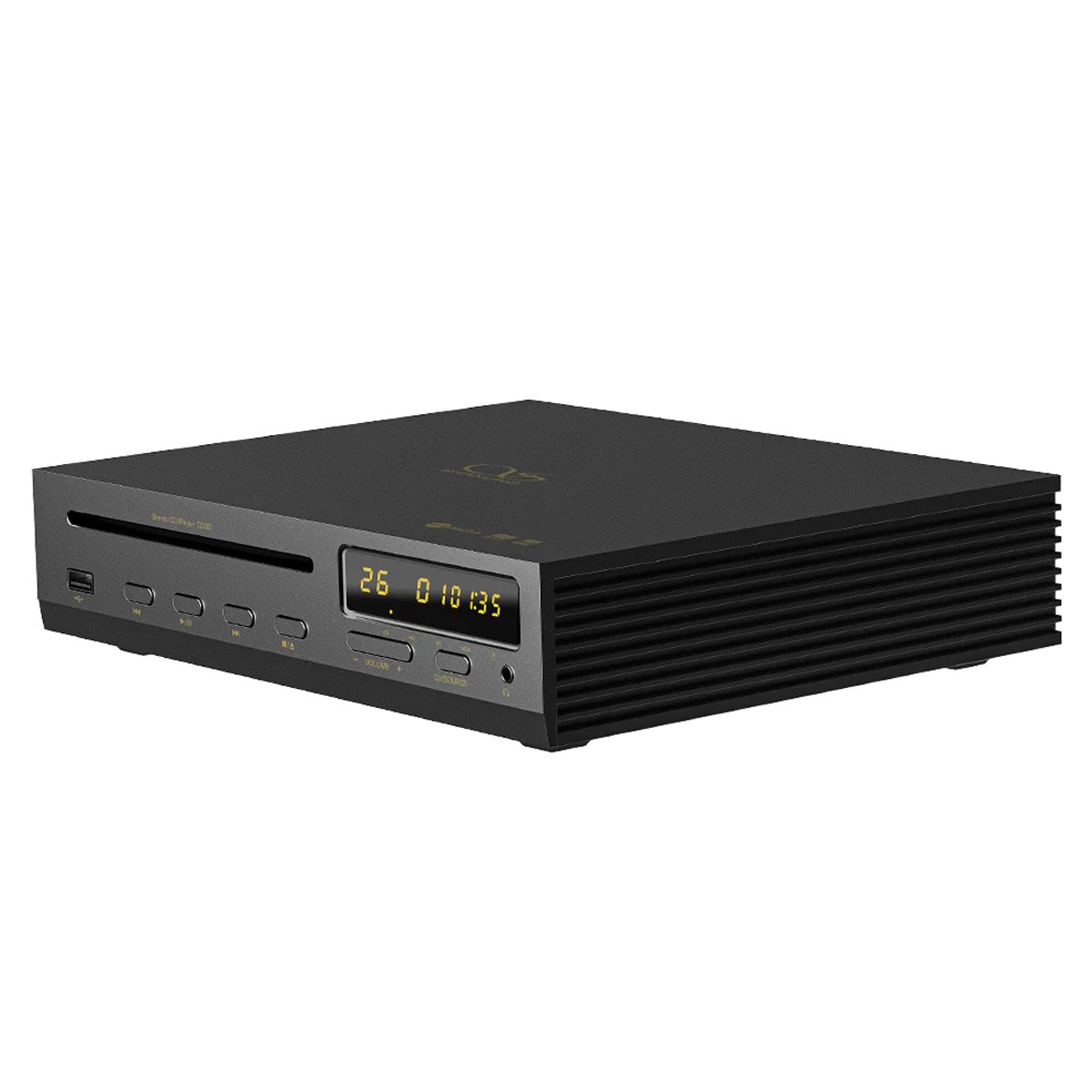

The Shanling CD80 is an efficient CD player with integrated DAC. It performs these functions brilliantly, thanks to its meticulous architecture and high-quality components, enabling it to offer superb playback and decoding quality, so you can enjoy your CDs to the full.
The CD80's front panel features a Philips CD player with Sanyo HD860 laser technology, ensuring optimum playback of your audio CDs. Playback quality is enhanced by the integration of an Ingenic X1000 microprocessor, providing the player with significant data processing power.
The CD80 also features a USB input. This allows playback of high-resolution audio files up to PCM 32bit 384kHz and DSD256.
The CD80's digital-to-analog conversion section uses an ESS Sabre ES9219MQ DAC for first-rate decoding. This configuration offers both clarity and power for an optimal musical experience. This chip also supports high sampling rates, up to PCM 32bit 384kHz and DSD256. What's more, it is capable of decoding MQA streams, guaranteeing sound quality as close as possible to studio recording.
With its Bluetooth 5.0 module, the Shanling CD80 is able to receive audio streams wirelessly, from a smartphone or tablet for example, for practical, intuitive use. It also supports the high-resolution LDAC audio codec, ensuring high-quality wireless transmission and playback.
The Shanling CD80 offers simple connectivity. There's a USB-A input for file playback, and Toslink optical and RCA stereo outputs. The front panel also features an amplified headphone output in 3.5mm jack format.
The CD80 can be controlled remotely via its remote control or the free Eddict Player mobile app, available for both Android and iOS. In addition to managing playback, the latter offers access to the device's various functions.

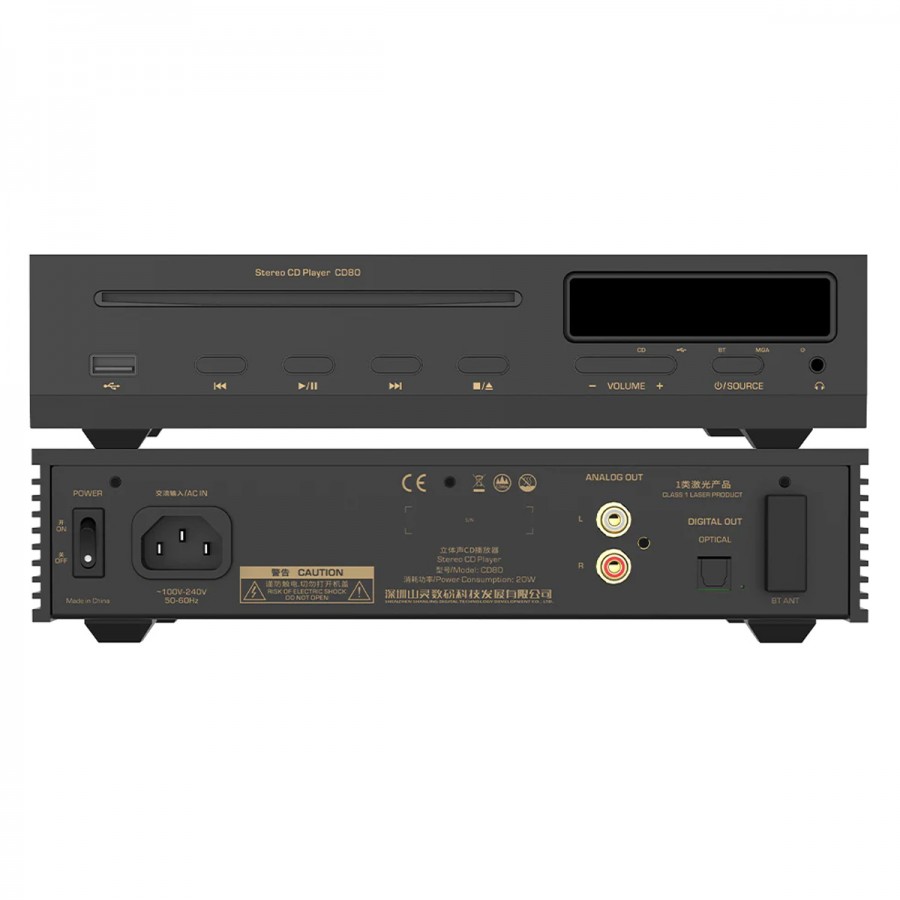

1 | CD Player |
2 | Volume display |
3 | IR receiver |
4 | Display |
5 | USB port |
6 | Previous track |
7 | Play / Pause |
8 | Next track |
9 | Stop / Eject |
10 | Volume |
11 | Power ON/OFF / Input selection button |
12 | Status indicator |
13 | Jack 3.5mm headphone output |

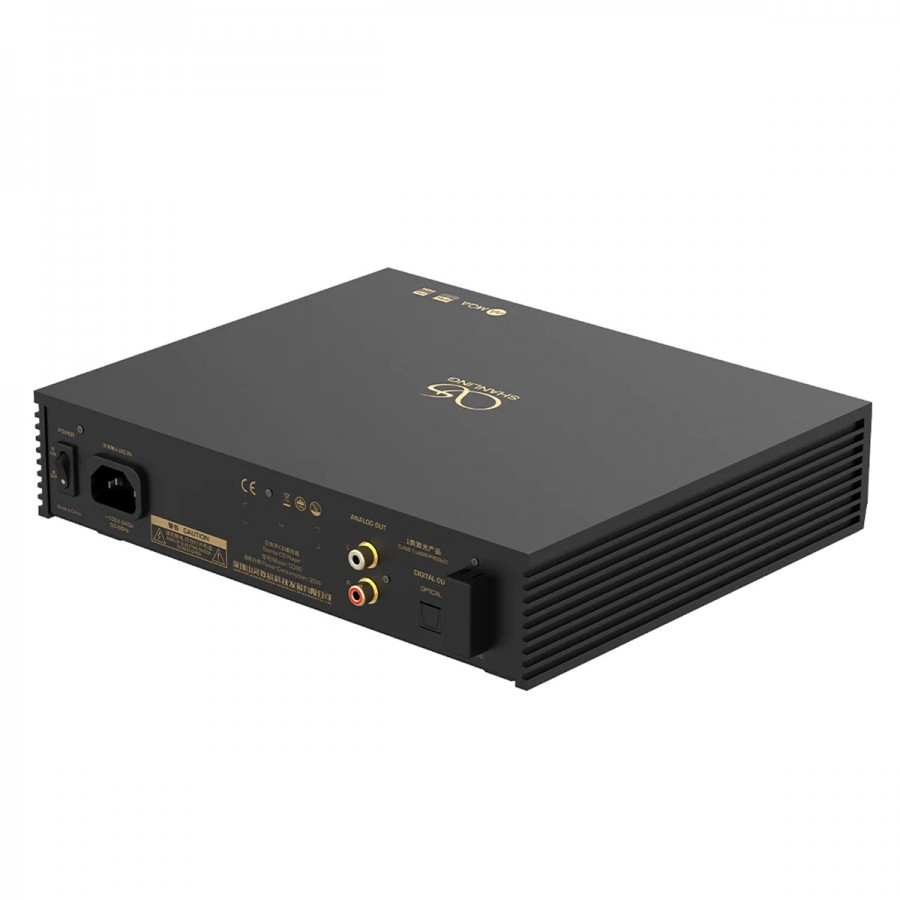

1 | Power button |
2 | Power input |
3 | RCA output |
4 | Optical output |
5 | Bluetooth antenna |
Technical charateristics
Specifications | |
---|---|
Product type | CD player DAC |
DAC chip | ES9219MQ |
Microprocessor | X1000 |
Control app | Eddict Player |
Headphone output power | 130mW @ 32 Ohm |
Frequency response (headphone output) | 20Hz-40kHz (-0.2dB) |
THD+N (headphone output) | 0.0015% |
Channel separation (headphone output) | 75dB @ 32 Ohm |
Dynamic range (headphone output) | 119dB |
SNR (headphone output) | 118dB |
Output impedance (headphone output) | < 1 Ohm |
Output level (line out) | 2Vrms |
Frequency response (line out) | 20Hz-40kHz (-0.2dB) |
THD+N (line out) | 0.008% |
Channel separation (line out) | 110dB |
SNR (line out) | 116dB |
Inputs | CD Bluetooth 1* USB-A |
Outputs | 1* Optical Toslink 1* Jack 3.5mm headphone output 1* RCA |
Supported Bluetooth codecs | SBC, AAC, LDAC |
Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 MQA |
General | |
---|---|
Supply voltage | 100-240VAC |
Consumption | 20W |
Dimensions | 250*205*52mm |
Weight | 2.4kg |
Color | Black |
