SMSL PL100 CD Player CS43131 Silver

New
The SMSL PL100 CD player is the perfect way to enjoy your CD collection. It's essentially based on a CS43131 DAC chip and a PLL (Phase-locked Loop) circuit for sound reproduction as close as possible to the original source.

No customer reviews yet, login to write a review.

By buying this product you get 9 loyalty points


Yes, notify me when available !
Reference : 20392
New product

99,00 €tax incl.

82,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

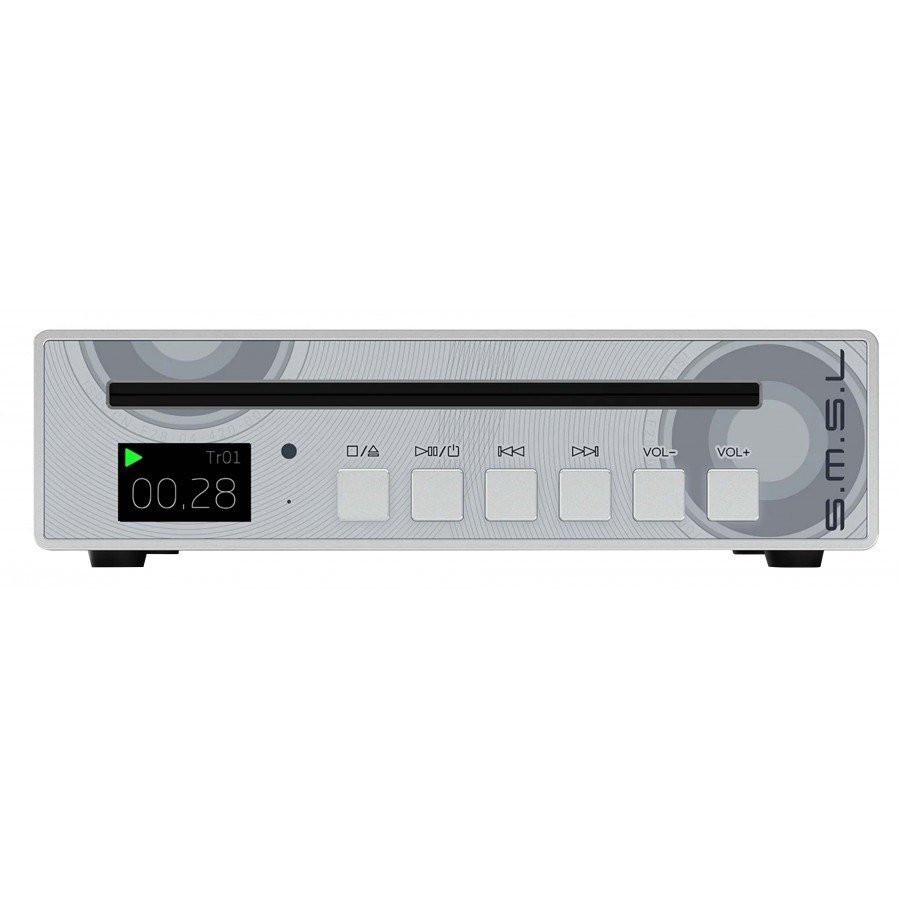

SMSL PL100 CD Player CS43131 Silver

SMSL PL100 picture

The SMSL PL100 CD player is the perfect way to enjoy your CD collection. It's essentially based on a CS43131 DAC chip and a PLL (Phase-Locked Loop) circuit for sound reproduction as close as possible to the original source. Various CD formats are supported: CD / CD-R / CD-RW / MP3 CD. Several outputs are also available, including a coaxial output, a Toslink optical output and an analog RCA output. There's an additional 3.5mm jack headphone output capable of delivering up to 2x60mW under 32 Ohm. The user experience is enhanced by the small display on the PL100's front panel, as well as the various control buttons and remote control.

SMSL PL100: CS43131 DAC chip

The CS43131 DAC chip, coupled with the PLL circuit, offers high-quality CD decoding for high-quality final sound reproduction. The PLL circuit greatly reduces jitter during playback.

DAC chip CS43131
Raw digital outputs

SMSL PL100: Raw digital outputs

The PL100's SPDIF Coaxial and Toslink optical outputs are capable of outputting the raw signal for direct connection to a DAC, so you can enjoy the best possible sound.

SMSL PL100: Headphone output

Thanks to its CS43131 DAC chip, the SMSL PL100 CD player is also able to deliver up to 60mw under 32 ohms of power on its 3.5mm jack output to drive a wide range of headphones and IEMs.

3.5mm headphone output
A practical form factor

SMSL PL100: Two installation options

The form factor of the SMSL PL100 CD player allows it to be positioned either horizontally or vertically.

SMSL PL100 overview

SMSL PL100 overview
1Coaxial output
2Toslink optical output
33.5mm jack headphone output
4RCA output
55V 2A USB power input

Technical characteristics

Specifications
Product typeCD player
DAC chipCS43131
InputCD
Outputs1x Coaxial
1x Toslink Optical
1x RCA output
1x 3.5mm jack headphone output
Supported CD formatsCD / CD-R / CR-RW / CD MP3
Headphone output power60mW @ 32 Ohm
THD+N0.001%
SNR110dB
General
Power supply5V 2A via USB
Power consumption4W
Standby: < 0.1W
Dimensions160 x 162 x 42mm
Weight1.2kg
ColorSilver
Package1x SMSL PL100 CD player
1x Remote control
