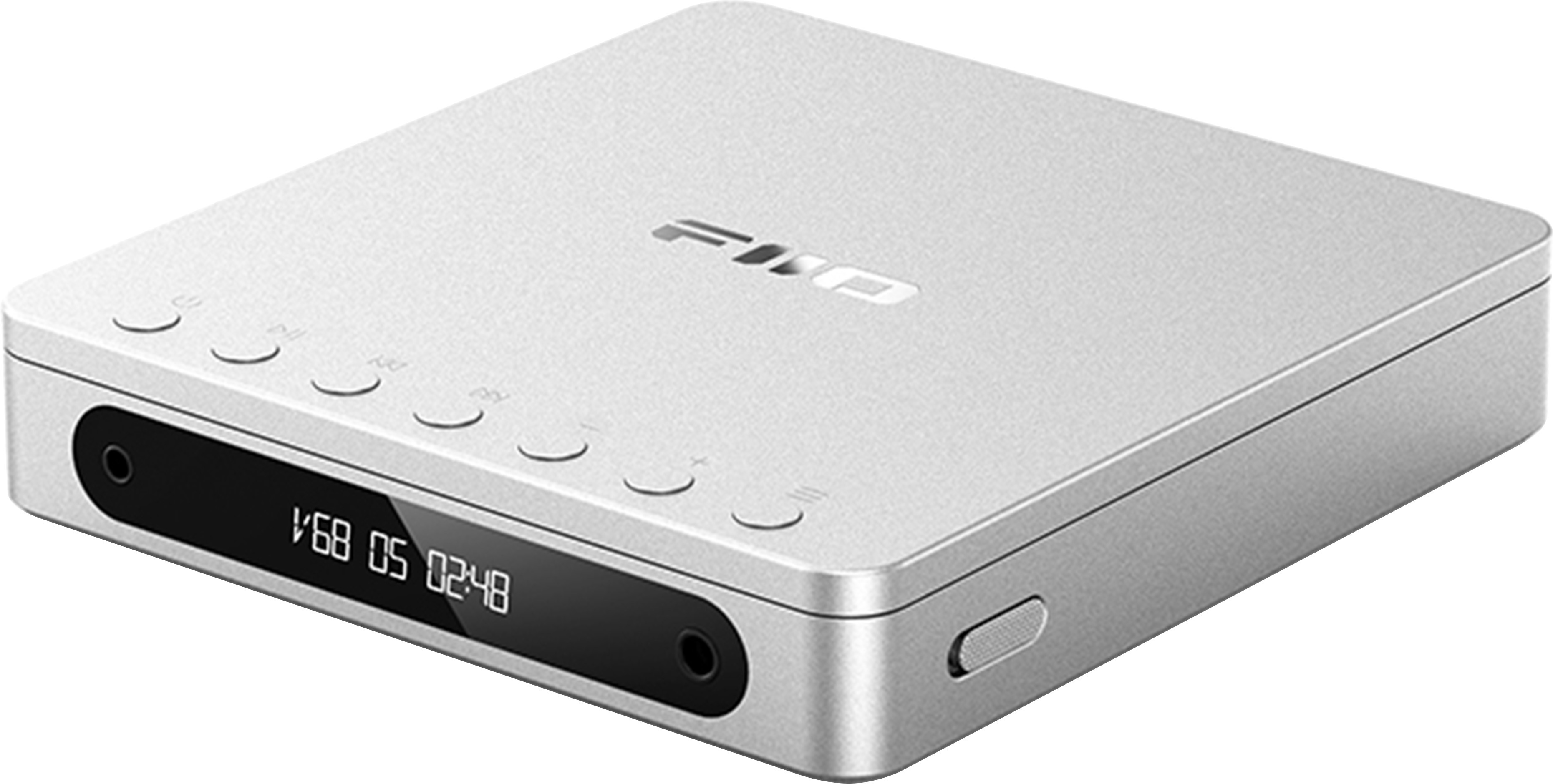

FiiO DM13 CD Ripper Player on Battery 2xCS43198 Silver
FiiO's DM13 is a portable CD player with a sleek design and undeniable internal component quality. Its aluminum body houses two DAC chips from Cirrus Logic to offer a conversion of your favorite CDs as close to the original as possible. The 660mW + 660mW amplification at 32Ω provided by the balanced outputs means you can easily connect any headphones or amplifier, furthermore the digital output means you can integrate it into a complete HiFi system by delegating the conversion of your CD signal to an external DAC.
FiiO DM13: Cirrus Logic CS43198 DAC
For optimized digital/analog conversion, the DM13 deploys two Cirrus Logic CS43198 DAC chips, offering the dual benefits of reduced power consumption and excellent audio quality. This chip also features 99 levels of volume control, for smooth, precise adjustment while maintaining crystal-clear sound reproduction.
FiiO DM13: SGM8262 amplification chip
The DM13's amplification stage is handled by two SGM8262 chips, providing output power of 660mW + 660mW at 32Ω balanced and 180mW + 180mW at 32Ω single-ended. This power allows even the most demanding headphones to be driven efficiently, without any worries.
FiiO DM13: Portable CD player
The DM13 has been designed first and foremost as a portable CD player. Its appearance is the fruit of FiiO's efforts to make it as compact as possible without neglecting its technical capabilities. This CD player can follow you anywhere, and is equipped with a 3750mAh cobalt-lithium battery for up to 10 hours of uninterrupted playback.
FiiO DM13: LCD display
The DM13 boasts a high-contrast LCD display that shows information such as volume, track number and duration, so you always know exactly where you stand.
FiiO DM13: Complete connectivity
The DM13 has two headphone jack outputs, one 4.4mm balanced, the other 3.5mm single-ended, as well as two line outputs for connection to a power amplifier or active speakers. Furthermore, this CD player also benefits from a coaxial/optical output to provide a DAC with a stable signal, thanks to its low-jitter internal clock.
FiiO DM13: Ripper function
The DM13 also lets you rip your CDs in WAV format, so you can easily share your music with friends, or more simply, let your music follow you wherever you go on your phone or computer.
FiiO DM13: Desktop mode
Moreover, as a portable device, the DM13 can also be used powered by its USB-C port rather than by battery, simply by activating the Desktop mode via the switch on the side of the device, thus allowing you to use it without wearing out the battery in the slightest.
FiiO DM13: Advanced functions
When designing its CD player, FiiO gathered extensive feedback from users in order to integrate useful functions. For example, you can now mark as favorite certain tracks on your CDs, as well as activate loop playback or remove silences between two tracks.
Technical characteristics
| Specifications | |
|---|---|
| Product type | CD player Ripper |
| Outputs | 1x Balanced 4.4mm jack headphone output 1x Single-ended 3.5mm jack headphone output 1x Balanced 4.4mm line output jack 1x Single-ended 3.5mm line output jack 1x Coaxial / Optical output |
| Screen | LCD 1.5" |
| DAC chips | 2x CS43198 |
| Amplification chips | 2x SGM8262 |
| Adaptive impedance | Single-ended: 8~150Ω Balanced: 8~350Ω |
| Battery autonomy | 10h |
| Battery charge time | 2.5h |
| Headphone output specifications | |
|---|---|
| Output power 4.4mm jack | 620mW+620mW (16Ω, THD+N＜1%) 660mW+660mW (32Ω, THD+N＜1%) 80mW+80mW (300Ω, THD+N＜1%) |
| Output power 3.5mm jack | 270mW+270mW (16Ω, THD+N＜1%) 180mW+180mW (32Ω, THD+N＜1%) 20mW+20mW (300Ω, THD+N＜1%) |
| Crosstalk | Balanced: 120dB Single-ended: 77dB |
| Frequency response | 20Hz-20kHz (-2.3dB) |
| Output impedance | Balanced: 1.5Ω Single-ended: 1Ω |
| Total harmonic distortion more noise (THD+N) | Balanced: 0.0024% Single-ended: 0.0025% |
| Signal-to-noise ratio (SNR) | Balanced: 124dB Single-ended: 120dB |
| Noise floor | Balanced: 2.8μV Single-ended: 2.4μV |
| Peak output voltage | Balanced: 14 Vp-p Single-ended: 7Vp-p |
| Line output specifications | |
|---|---|
| Crosstalk | Balanced: 106dB Single-ended: 105dB |
| Frequency response | 20Hz-20kHz (-2.3dB) |
| Total harmonic distortion more noise (THD+N) | Balanced: 0.0022% (1kHz/0dB@10kΩ) Single-ended: 0.0026% (1kHz/0dB@10kΩ) |
| Signal-to-noise ratio (SNR) | Balanced: 124dB Single-ended: 113dB |
| Noise floor | Balanced: 3μV Single-ended: 4.3μV |
| Output level | Balanced: 5V Single-ended: 2.5V |
| General | |
|---|---|
| Power supply | 5V DC 2A |
| Color | Silver |
| Weight | 450g |
| Dimensions | 137 x 144 x 28mm |
| Package | 1x FiiO DM13 1x USB-A to USB-C cable Jack 3.5mm to coaxial adapter |
