SMSL PL200T CD Player
By buying this product you get 54 loyalty points
![[GRADE A] HIDIZS MP145 In-Ear Monitor IEM Planar Magnetic 30 Ohm 104dB 20Hz-40Hz Silver](https://www.audiophonics.fr/66686-thumb_default/hidizs-mp145-silver.jpg)
![[GRADE B] THINKYA JA-310 CD and Audio Files Player USB Optical Jack 3.5mm Bluetooth 5.1](https://www.audiophonics.fr/66681-thumb_default/thinkya-ja-310-cd-and-audio-files-player-usb-optical-jack-35mm-bluetooth-51.jpg)
SMSL PL200T CD Player USB XMOS 32bit 768kHz DSD512 MQA-CD

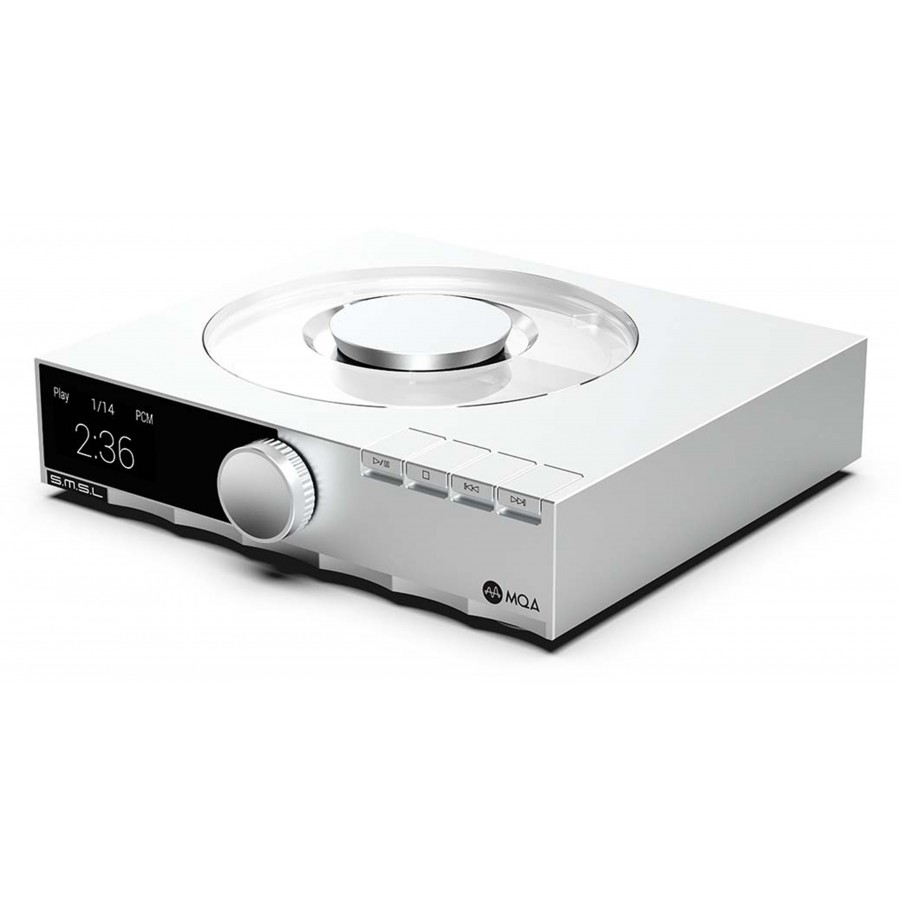

The SMSL PL200T is a high-performance, versatile CD player. It's based primarily on a P.A.S.S. (Precision Access Servo System) playback system developed by SMSL, plus an XMOS USB interface on a USB-C connector. The playback system natively supports MQA CD and USB interface up to PCM 32bit 768kHz, DSD512 and MQA. The design features a large IPS screen and piano keyboard buttons, for a perfect blend of modern and retro looks. Connectivity includes a 10MHz clock input and Toslink optical, SPDIF coaxial and AES/EBU outputs.
SMSL PL200T: P.A.S.S (Precision Access Servo System) playback system
SMSL has developed its own CD playback system providing audiophile levels of dynamic response and playback stability. In addition, an anti-vibration system and shock absorbers give this CD player a high level of reliability.
SMSL PL200T: 10MHz external clock input
The PL200T CD player features a 10MHz external clock input compatible with 50 or 75 ohm impedance. It supports both standard and atomic external clocks.
SMSL PL200T: USB XMOS interface
The SMSL PL200T's USB-C input supports high-resolution sampling rates up to PCM 32bit 768kHz, DSD512 and MQA via an XMOS interface.
SMSL PL200T: between modernity and retro look
The PL200 features piano keyboard keys for a retro look, and a large tempered-glass IPS screen with a simplistic, modern interface. On the top of the PL200, an innovative cover covers the CD playback system.
SMSL PL200T: 3 power supply options
The SMSL PL200T CD player can be powered via USB-C, DC jack or a mains power cord for added flexibility.
Please note that if you use the USB or DC jack power supply, it must be 5V (+/-0.3V), otherwise the device may be damaged. Also, be careful not to use the DC jack power supply and the mains power supply at the same time.
SMSL PL200T overview
| 1 | CD player cover |
| 2 | CD holder |
| 3 | Disk slot |
| 4 | Next |
| 5 | Previous |
| 6 | Stop |
| 7 | Play/Pause |
| 8 | Multifunction button |
| 9 | IR receiver |
| 10 | LED indicator |
| 11 | Display |
| 12 | I2S output via HDMI |
| 13 | AES/EBU output |
| 14 | Coaxial output |
| 15 | Toslink optical output |
| 16 | External clock input |
| 17 | Power supply via DC 5V 1A jack |
| 18 | USB-C input/Power supply 5V 1A |
| 19 | Mains supply 100-240V AC |
Technical characteristics
| Specifications | |
|---|---|
| Product type | CD player |
| Inputs | CD 1x USB-C |
| Outputs | 1x I2S via HDMI 1x Coaxial 1x Optical Toslink 1x AES/EBU |
| USB transmission | Asynchronous |
| USB compatibility | Windows 7 / 8 / 8.1 / 10 / 11 (with driver) MAC OSX 10.6 et + Linux Android, IOS |
| Supported output sample rates | I2S: PCM up to 32bit 768kHz, Native DSD up to DSD512 Optical Toslink, Coaxial, AES/EBU: PCM up to 24bit 192kHz, MQA (8X, 384kHz converts to 192kHz) |
| External clock | Frequency: 44.1kHz ou 10Mhz Impedance: 50 ohm ou 75 ohm Waveform: square (TTL level) or sine (level >1Vrms) |
| General | |
|---|---|
| Power supply | Mains 100-240V AC DC jack 5V 1A USB-C 5V 1A |
| Power consumption | 15W Standby: 0.5W |
| Dimensions | 200 x 42 x 175mm |
| Weight | 1.62kg |
| Color | Silver |
| Package | 1x SMSL PL200T 1x Remote control 1x Power supply cable |
