ACCUSILICON AS318-B-451584 Ultra Low Jitter Clock 45MHz

ACCUSILICON AS318-B-100 Ultra Low Jitter Clock 100.000M
This extremely low phase noise crystal oscillator (< 100dBc @ 10Hz) is intended for professional recording equipment as well as audiophile electronics precision devices.

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 14033
New product

29,90 €tax incl.

24,92 € tax excl.
Including 0,01 € for green tax

- +


Shipping date: 16-07-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info
Accusilicon precision crystal oscillator clock

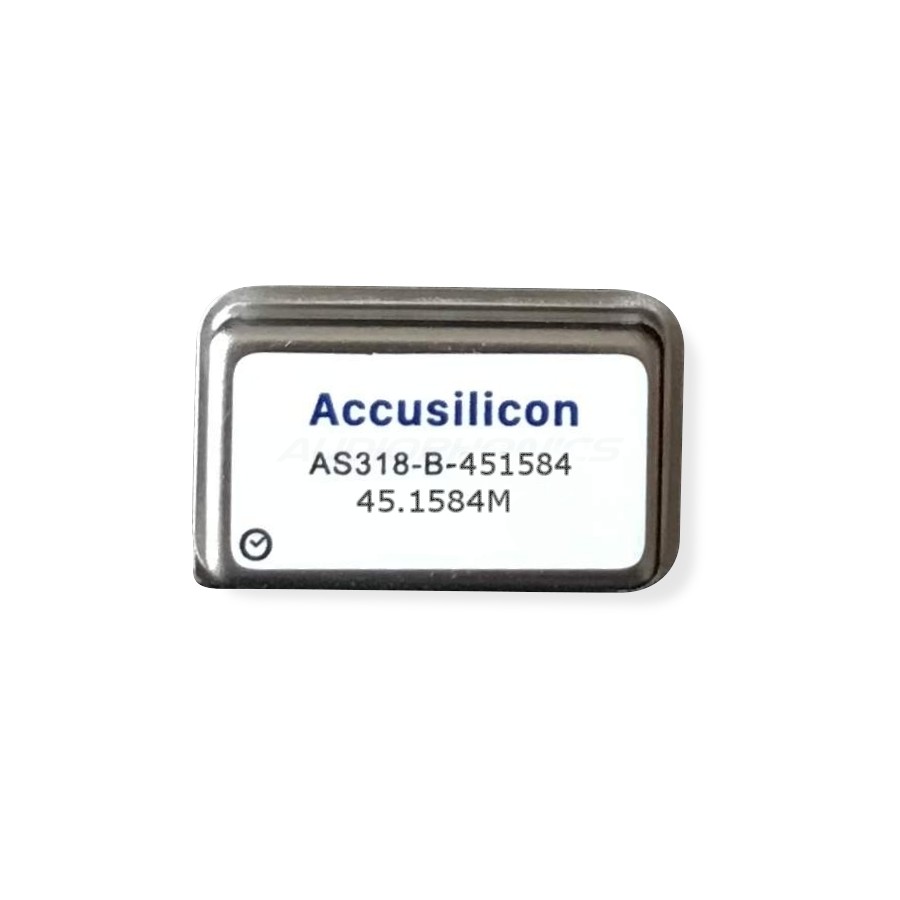

Accusilicon Crystal Oscillator AS318-B-451584


This extremely low phase noise crystal oscillator (< 100dBc @ 10Hz) is intended for professional recording equipment as well as audiophile electronics precision devices.

 The AS318-B-451584 provides a very low jitter - measured 0.088
pS on the 10Hz-1MHz band and 0167 pS on the 12-80MHz band.

Valued for their low power consumption (< 25mA @ 15pF) the Accusilicon clocks also have a high resistance to thermal stresses (operational from -20 to 85 ° C).

This component integration is nice and easy. It is powered by 3.3V (within +/- 0.3V) and give excellent results with a 0.1uF capacitor filtered power supply.

These electronic clocks are used is advanced High-Fidelity devices and offer more precision than regular TCXO clocks. This item works with Ian Canada FIFOPI

DIP-crystal clock 14 accusilicon
Specifications
TypeCrystal Oscillator
Frequency45.1584MHz
WaveformCMOS
Output LevelState "0": 10% Vdd
State "1": 90% Vdd
Rise / Fall4ns @ 20-80% Vdd
Jitter88fS(0.088pS) @ 10Hz - 1MHz
167fS(0.167pS) @ 12kHz - 80MHz
Frequency tolerance-20 / 20 ppm
Max Load15pF
Duty Cycle45-55%
Supply (VDD)3.3V (+/- 0.3V)
DimensionsWidth: 20.83mm
Length: 13.21mm
Height: 5.08mm + 6.35mm (legs)
pinout
PIN 1oE
PIN 7GND
PIN 8OUT
PIN 14Vcc

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Frequency accuracy
I bought two of them.
The nominal frequency was 45.1584 MHz.
The measured frequency of one of them was 45.158230 MHz,
the other measured frequency swam slowly to the desired value : 45.1584000 MHz
Obviously, after a while it slowly drifted away from here, but how much was the error of the measurement or the oscillator could only be told by a frequency meter with an atomic clock .
Excellent oscillator with very little jitter.
 (1)
 (0)
This review has been posted for ACCUSILICON AS318-B-451584 Ultra Low Jitter Clock 45MHz
Note :
 5/5
Date :
beautiful clocks for relatively little money.
I've had the clocks in for two days now (ian Canada FIFO MA 1.5) and I must say the sound has gotten better. do you still have the standard clocks in it, these are a nice upgrade.
 (0)
 (0)
This review has been posted for ACCUSILICON AS318-B-451584 Ultra Low Jitter Clock 45MHz
Note :
 5/5
Date :
Excellente horloge
Après avoir installé un le Recloker FIFO PPI Q3 de Ian Canada sur mon Streamer à base de Raspberry PI4, j'ai décidé de changer les horloges d'origine de cet excellent recloker. Que dire si ce n'est que je redécouvre mon installation tout est mieux à tous les niveaux. En premier lieu ce qui frappe, c'est un gain dans les micros détails les fins de notes avec un silence profond. J'ai des enceintes haut rendement DIY à base de Altec 414 et de Moteur TAD - TD 2001+ pavillon rendement mesuré + de 100 db et j'ai un silence de fous dans mes pavillons. Attention cependant les premières écoutes sont un peu dur il faut attendre plusieurs heures avant que les horloges se rodent un peu, ensuite ce n'est que du bonheur !! A acheter les yeux fermé, surtout au vu du prix, merci à audiophonics pour leurs précieux conseils.
 (1)
 (0)
This review has been posted for ACCUSILICON AS318-B-451584 Ultra Low Jitter Clock 45MHz
