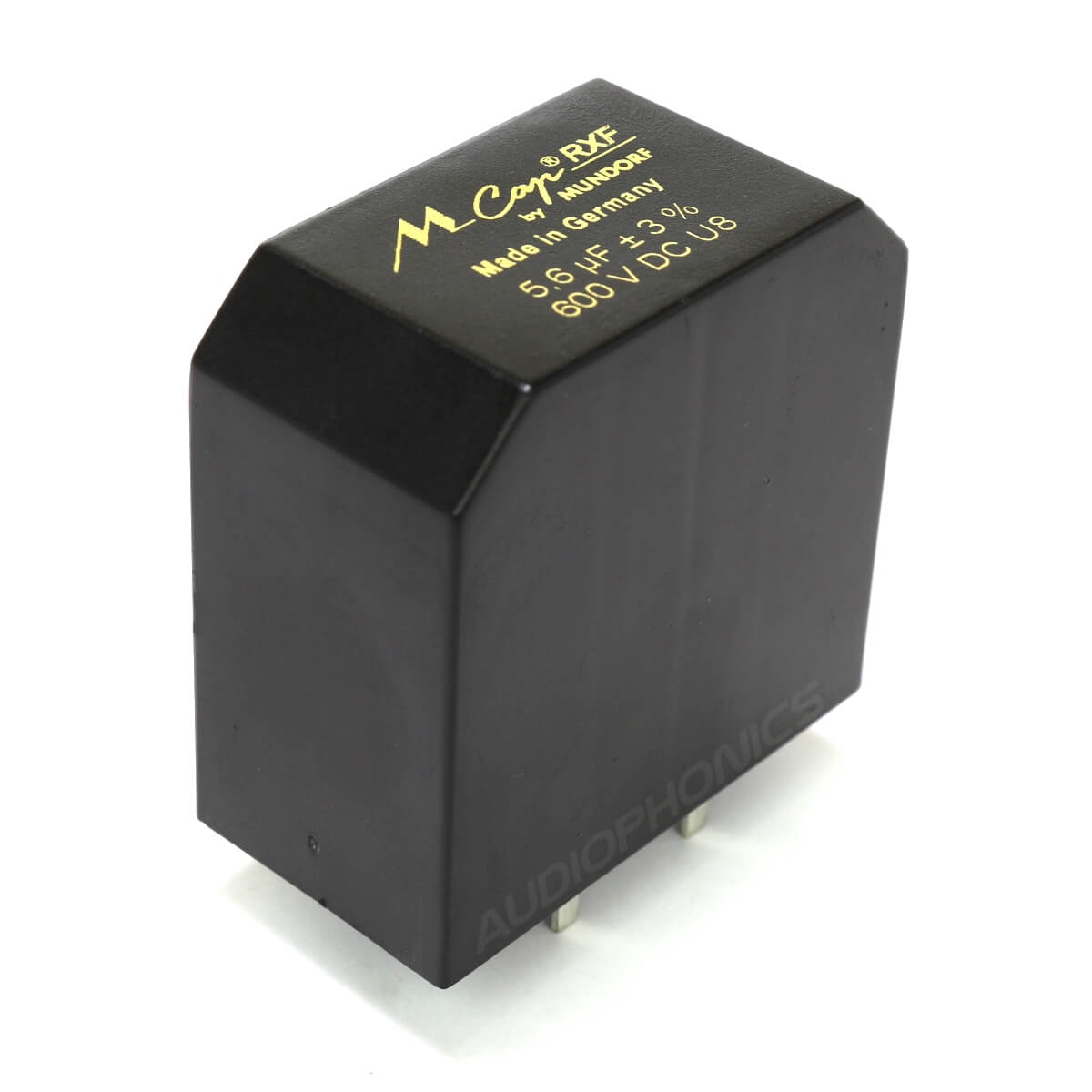

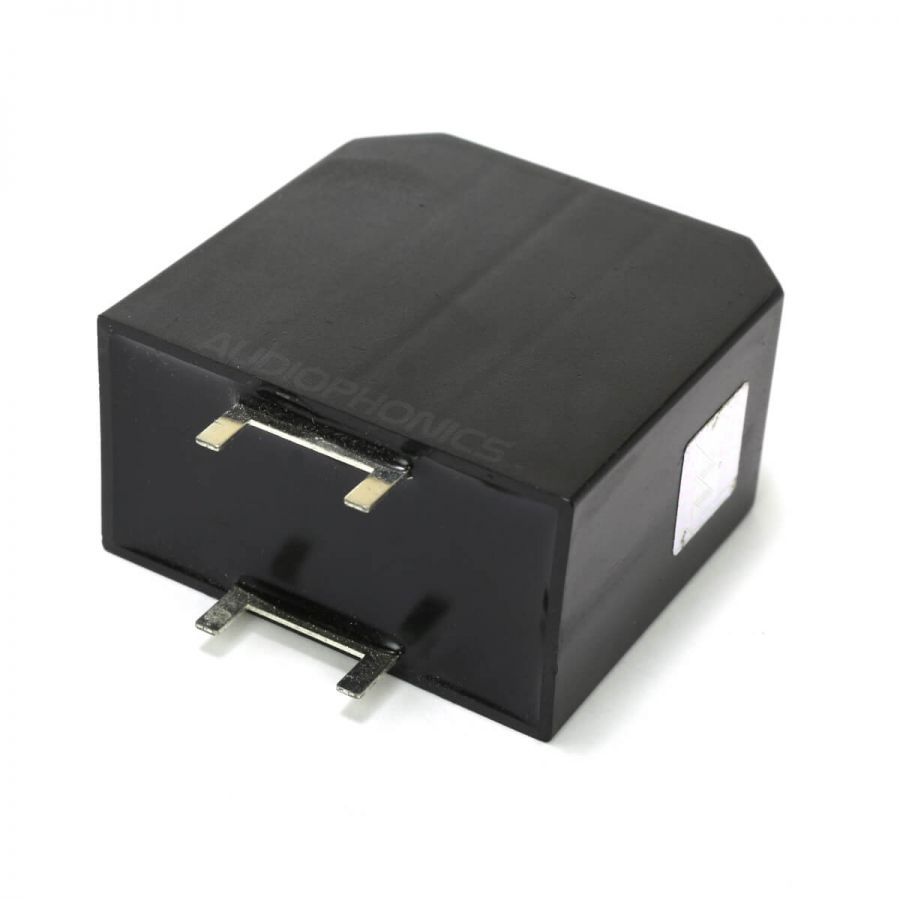

MUNDORF MCAP RXE Capacitor 600V 5.6μF
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] DAYTON AUDIO EX32VBDS-4 IMS Speaker Driver Exciter 40W 4 Ohm Ø32mm](https://www.audiophonics.fr/65646-thumb_default/dayton-audio-ex32vbds-4.jpg)
![[GRADE A] DAYTON AUDIO SPA500DSP Amp module Class-D Subwoofer 500W with DSP](https://www.audiophonics.fr/65595-thumb_default/dayton-audio-spa500dsp-amp-module-class-d-subwoofer-500w-with-dsp.jpg)

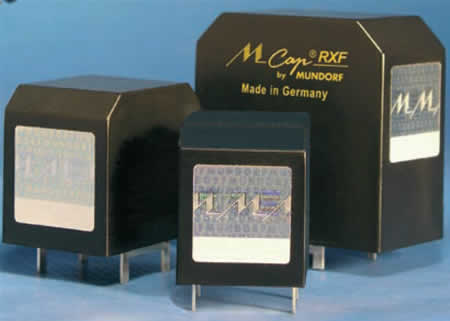

MCAP RXF
The MCAP RXF (Radial Xtra Flat) are a type of capacitor featuring an optimized geometry with compact housing. They cater to builders ambitious HiFi.
The internal winding diameter and the internal and external contact surfaces have been increased to the maximum to reduce electric losses. This gives a very low internal resistance and residual inductance.
The MCap RXF is ideal for detailed and dynamic music reproduction.

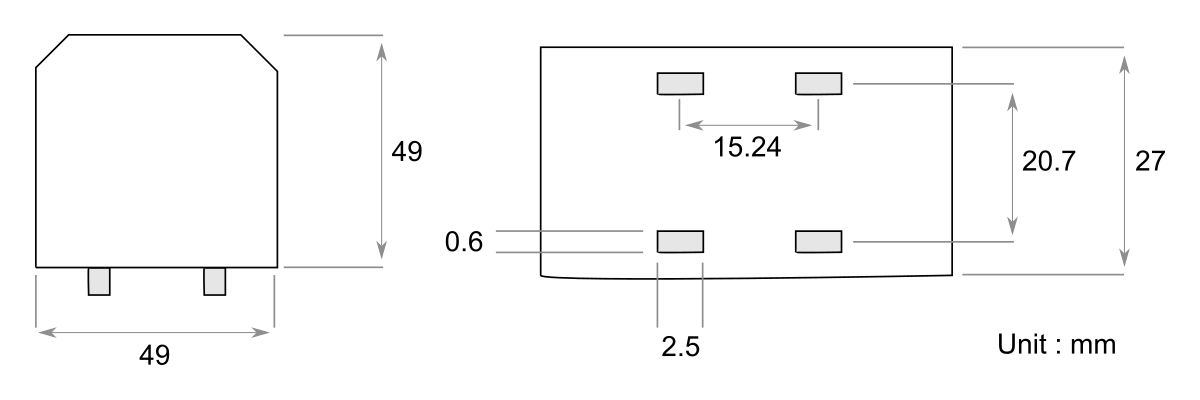

Dimensions
| Specifications | |
|---|---|
| Type | Polypropylene Aluminum Capacitor |
| Capacitance | 5.6µf |
| Max voltage | 600VDC |
| Maximum tolerance | 3% / 1.5% Typical |
| Loss factor | tan = 0.0002@1kHz@1µF |
| Dimensions | 35 x 33 x 27mm |
| Spacing | 15.24 x 20.7mm |
| Tolerance (%) | 1.5 |
| Capacitor capacitance (µF) | 5.6 |
| Rated voltage (V) | 600.0 |
| Capacitor type | Film capacitor |
| Capacitor format | Radial |
