Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

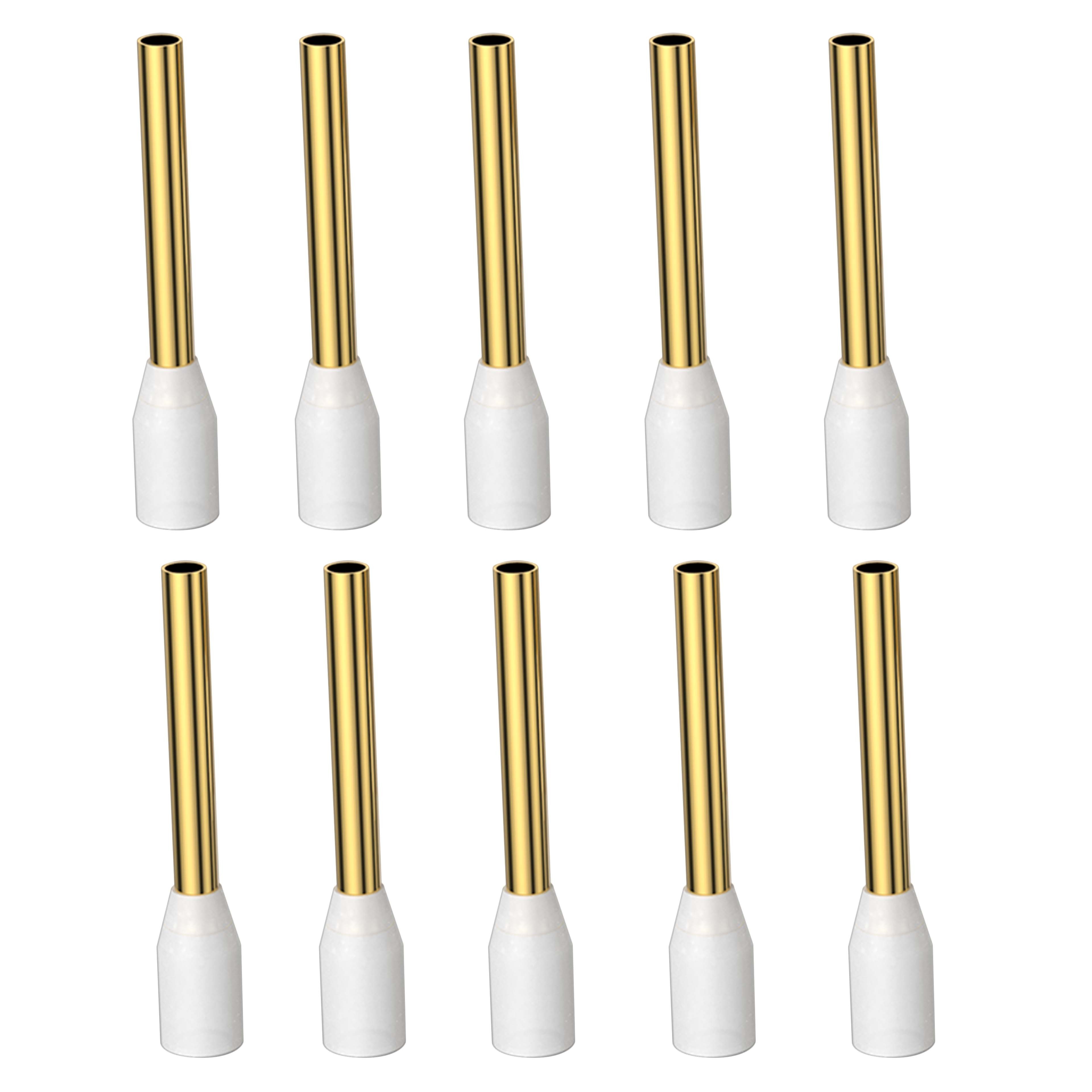

These Viborg VB4018G crimping tips for cable are very useful when connecting cables to connectors, for example. They enable the pressure of the mounting screw to be exerted on the crimp, rather than directly on the stranded conductors. They can also be used to assemble two sets of cables. High-quality, they are made of 24K gold-plated copper for optimum resistance to oxidation and corrosion. They are available in several sizes for different cable cross-sections. Assembly is carried out using suitable crimping tool.
Technical characteristics
Specifications | |
---|---|
Product type | Crimping tips for cable |
Body material | Pure copper |
Plating | 24k Gold |
Insulation | PTFE |
Compatible cable cross-section | 4mm² (AWG12) |
General | |
---|---|
Total length | 24mm |
Internal diameter | Ø2.8mm |
Package | x10 |
Max cable diameter (mm) | 2.8 |
Section (mm²) | 4.00 |
Contacts Material (Connector) | Copper |
Contacts Plating (Connector) | Gold |
