AUDIOPHONICS EVO-SABRE Balanced DAC 2x ES9038Q2M USB GPIO Raspberry Pi SPDIF Bluetooth XLR RCA

Direct successor to our famous DAC I-Sabre ES9038Q2M module, the EVO-SABRE 2x9038Q2M is a balanced version of the converter with a full range of connectors and input interfaces (SPDIF Coaxial and optical, USB, Bluetooth and I2S through GPIO). This version is more precise, more efficient and more versatile. It includes its own microcontroller, a digital OLED display with encodder and can work in total autonomy.

Average votes for this product
4.4 / 5
  Based on 10 customers reviews.

By buying this product you get 20 loyalty points


Reference : 14562
New product

209,00 €tax incl.

174,17 € tax excl.

- +


Shipping date: 21-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

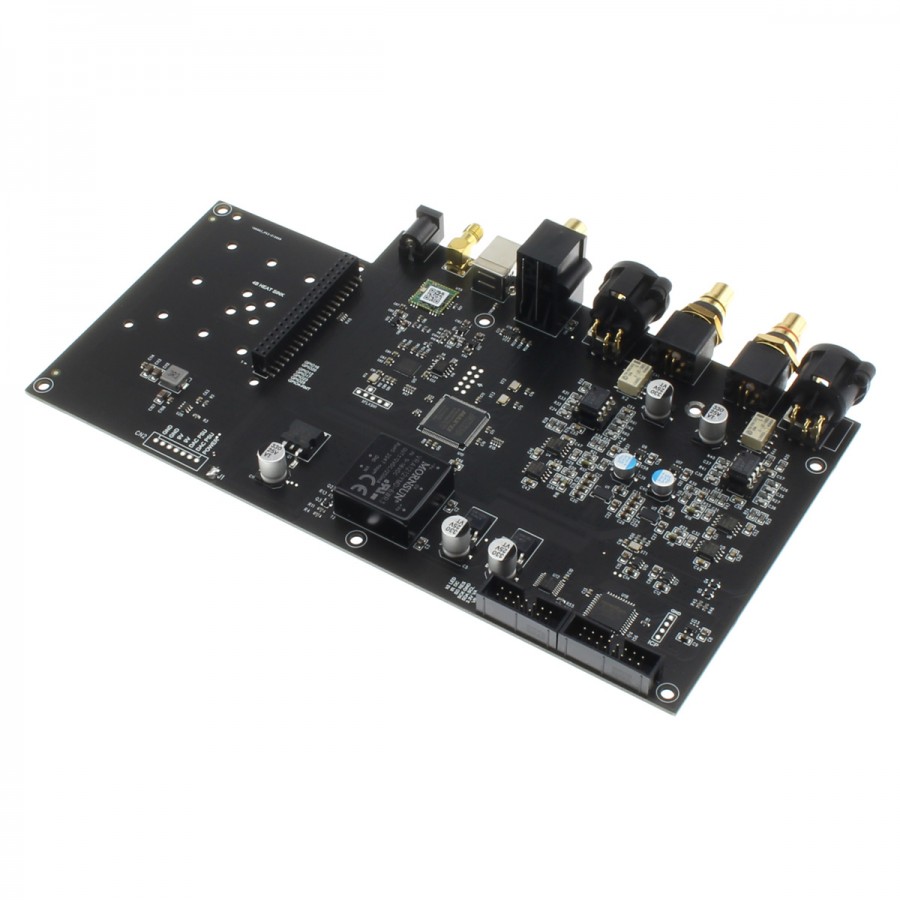

Audiophonics EVO-SABRE

Module DAC Double SABRE ES9038Q2M Balanced SPDIF / USB / RPI 4/5 & Stand-alone



Audiophonics EVO-Sabre DAC Symétrique 2x ES9038Q2M USB GPIO Raspberry Pi SPDIF Bluetooth XLR RCA


Direct successor to our famous DAC I-Sabre ES9038Q2M module, the EVO-SABRE 2x9038Q2M is a balanced version of the converter with a full range of connectors and input interfaces (SPDIF Coaxial and optical, USB, Bluetooth and I2S through GPIO).  This version is more precise, more efficient and more versatile. It includes its own microcontroller, a digital OLED display with encodder and can work in total autonomy.

Of course there is still a GPIO connector with I2S input allowing the mounting of a Raspberry Pi (or some other SBC) to obtain a complete solution including both a digital audio source and a very high definition digital to analog decoding - with tremendous audio quality for its price range. Just pick and install one of the many free streaming software solution and connect the board to an amplifier or active speaker to enjoy a complete, ready-to-use high-fidelity package loaded with audio features.

The case kit associated with this DAC EVO-SABRE is available here : AUDIOPHONICS EVO DAC Aluminum case and accessories kit Black.

Here you may find a kit including all required parts to assemble a complete EVO SABRE DAC Streamer using 100% of its capacities : DAC module, Remote control, Housing, Power supply and Raspberry Pi.


ASR Review

I am happy to recommend the Audiophonics EVO Sabre given the unique functionality, form factor, and performance.

test by the measurement forum Audio Science Review

Balanced ES9038 DAC


The EVO-Sabre is a high-precision DAC using two 32-bit ES9038Q2M Sabre chips integrated in dual Mono mode: each of these chips see its computing power 100% dedicated to a single channel of the stereophonic signal. This achieves a sound restitution of exceptional clarity with tremendously low crosstalk.

This component belongs to ESS flagship series and is among the best current hardware solutions for high-fidelity audio decoding. It uses HyperStream 32 BIT 768kHz architecture with native DSD support. Each one of this chips is also equipped with advanced reconstruction filters and uses some of the finest dithering techniques available on the audio market.

ESS ES9038Q2M SABRE DACs are also very popular thanks to their ability to operate volume with almost no consequences on the audio bitrate.

The board works in balanced and single-ended mode and offers both a balanced stereo output on 3-pole XLR connector and an single-ended stereo output on RCA connector. The module can thus be ideally suited to most integration scenarios and will easily find its place in minimalist audio projects as well as in very complex Hi-Fi installations.

Basic connections

Ports audio Sabre Evo Audiophonics
AXLR Output (balanced)
BCoaxial Input S/PDIF
CGPIO Connector
DRCA Output (single-ended)
EOptical Input S/PDIF
FUSB-2 type B Input
GBluetooth
HPower-supply 9V Jack DC

Both outputs (RCA & XLR) are active at the same time.

XMOS U208 USB Interface


The USB-B input (USB-2) works with a XMOS U208 USB interface. This is a reference component in the field of high-fidelity music, with digital streams supports up to 32-bit 768kHz as well as (native) DSD512.

Definitely designed for high-resolution, this asynchronous USB interface has a computation capacity of 1000 MIPS all of which is dedicated to the processing of your digital audio signals with minimal jitter and noise.

When the DAC EVO-SABRE is used in conjunction with a Raspberry Pi, this high-definition USB input allows to immediately interface digital audio streams to RPI I2S up to 384kHz / DOP 128.


FGPA Altera Max


Unlike its predecessor, the EVO-SABRE has several inputs driven by an independent interface.

SPDIF signals are handled by a FGPA Altera Max capable of performing clean processing of the digital input streams. These digital signals are interfaced in I2S to each of the two DAC chips, which represents a significant gain in performance compared to previous generations.

The SPDIF inputs support PCM signals up to 24/192 as well as DSD 128 DOP streams.

Microcontroller autoconfiguration


Thanks to an integrated microprocessor, the EVO Sabre automatically detects the format & the sampling rate of the signal source and will automatically adapt its configuration to provide the best listening performance without requiring any user intervention.

This control by CPLD chip maintains great stability while preventing decoding problems as well as the appearance of audio artifacts.

It also enables a continuous decoding of playlists with heterogeneous file types without having to worry about reconfiguring the DAC to benefit from optimal audio quality.

Optimized power stage


Powered by a DC 9V jack connector, the module operates from a particularly well designed power stage which allows to ensure a stable signal while reducing residual noise.
For this purpose, the PCB has a Mornsun DC / DC converter followed by two voltage regulators 79M08 / 78M08 dedicated to the analog part with is powered with +/- 8V.

The card has a separate 5V power stage dedicated to the Raspberry Pi. In this scenario, the RPI is supplied directly via its GPIO port, avoiding the need to add more connections and cables. Every configuration uses the minimum amount of cables for increased ease of use.

The card also has Ultra low noise voltage regulators dedicated to the conversion stage in order to isolate the DACs from the main power supply.

The DVCC voltage is generated from an LP5907 (regulation <6.5µV), which generates the DAC 1.2V Vref which is a critical voltage.

The AVCC voltage is generated from a dedicated ADP150 regulator (regulation <9µV).

OLED screen, controller, I/R receiver, ON/OFF switch


A second PCB is included witrh the module. This secondary board is equipped with an ON / OFF switch, an infrared receiver, an OLED screen and a rotary encoder which are already mounted.

The switch is backlit when the module is in standby to indicate that the circuit is ready for operation.

The 1.3"128X64 OLED screen simultaneously displays the active input, the sampling rate and the volume as defined by the DAC ES9038Q2M chip-specific control. This feature is usefull to check in real time that the playback is going as planned.

The rotary encoder on the far right is directly connected to the volume control of the DAC chips. It allows easy and precise volume adjustment the from the device front panel.

Finally, the infrared receiver communicates both with the microcontroller in charge of driving the DAC chips and with the Raspberry Pi if the EVO-SABRE is used in network drive mode with LIRC configured. The remote control (included) thus centralizes most of the playback functions for great ease of use.

The input selection, volume and standby functions, as well as the filters adjustements are handled by the integrated microcontroller, while the play / pause, previous / next functions are transmitted to the RPI (requires LIRC configuration on GPIO 04)

d

Connector for secondary display


In addition to its display / controller / receiver PCB, the DAC EVO SABRE Audiophonics ES9038Q2M module has an additional connector intended to receive a second 3.12 "256x64 OLED screen connected directly to the Raspberry Pi SPI (CN4).

A pre-configured script to install on your Pi4 is available to directly extract the playback data (Dietpi / LMS). Users versed in Python / UNIX programming can easily adapt or recreate a script to modify its behavior to their liking.

It is then possible to achieve very clever integration for your DAC/Streamer with on the one hand a compact screen / controller dedicated to audio parameters and on the other hand an auxiliary screen dedicated to the metadata of your tracks as well as general parameters related to your project.

Use with Rasperry Pi

The Raspberry Pi is not supplied with the EVO SABRE module. This optional element considerably widens the functionality of the module. Click here to find the suited version.


Used in conjunction with a Raspberry Pi 3, 4 or 5, the EVO-SABRE ES9038Q2M becomes a complete dematerialized streaming solution.

The pinout is the most common, compatible with the RPI-DAC driver and present in all distributions.

It is also possible to use the driver for the I-Sabre 9038, found in the Raspberry PI kernel from version 4.19.34.

This allows you to control the volume of the chip directly from the RPI, but the interest is limited insofar as the EVO-SABRE already offers these functions with its remote control and the front encoder.

FFT Measure

Specifications
TypeDAC Module
DAC chip2x ESS ES9038Q2M
ArchitectureBalanced
Audio InputsS/PDIF Coaxial
S/PDIF Optical
Bluetooth HD (Bluetooth antenna available here)
USB-B (XMOS)
I2S GPIO (pinout RPI-DAC)
Audio OutputsRCA stereo single-ended (2V RMS)
RXL stereo balanced (4V RMS)
Sampling rate

USB : 768kHz / DOP256

RPI I2S : 384kHz / DOP128

SPDIF : 192kHz / DOP64

Power Supply9VDC (2A minimum) on jack DC 5.5 / 2.1mm (Power supply not included)
Idle consumption700ma
USB interfaceXMOS U208
FGPAAltera Max
Raspberry compatibilityRaspberry 3 / 4 / 5
Dimensions

Main PCB : 120 x 225mm (Max height : 32mm)

display PCB : 40 x 134 mm

Weight185g

Data sheet
InputUSB
InputOptical
InputGPIO
InputSPDIF
InputBluetooth
OutputXLR
OutputRCA
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
Max sampling rateDSD256

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
