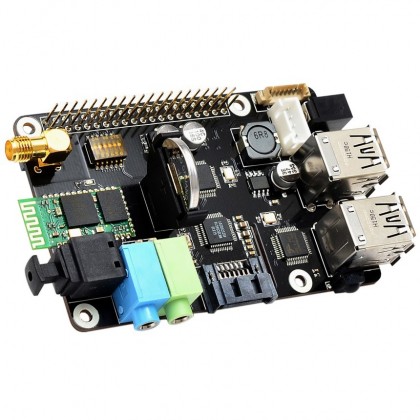

SUPTRONICS X300 HAT Module Board Wifi / Bluetooth / Toslink / Sata for Raspberry Pi

This expansion card for ultra complete PI allows you to have extensive connectivity and transform your PI into a real computer with all the necessary connectivity.

Additional USB ports, WiFi, bluetooth, digital output, SATA connector etc ... In short, your PI will have nothing more to envy to more complete solutions but much more expensive.

Dedicated to Raspbian (picture provided below), it is possible to adapt it to other solutions (we will put on line the forum quickly the necessary instructions).

Characteristics :

• GPIO for direct connection to Raspberry Pi
• ADC / DAC & Interface CM119A
• Input voltage: 6V to 18V DC converts to 5V 4A via step-down DC / DC controller to power the Raspberry Pi
• Recommended Power Supply: 12V 2A (not supplied), DC Jack 5.5 / 2.1mm (+ center)
• SATA connector
• Inputs: MIC via 3.5mm Jack or (ST300 Microphone In and Microphone Output Connector Kit)
• Outputs: S / PDIF Toslink, Stereo Jack 3.5mm (line level), Speaker output (3.3W x2) and volume control via 8 'n (ST300 Microphone In and Microphone Output Connector Kit)
• WiFi wireless transmission (IEEE 802.11b / g / n) via external antenna delivered
• Bluetooth wireless transmission
• IR receiver (38kHz) NEC code for remote control (connected to the GPIO 17)
• USB HUB powered (3 additional USB-A 2.0 ports)
• Dimensions: 85x56mm (same dimensions as PI)
• USB adapter (to connect the two cards), WiFi antenna, 4 spacers (M3x20mm) and 8 nylon screws (M3x6mm) provided
• RASBIAN compatibility (a specially configured image for the proper functioning of the various devices is available here (click to open the page)
