N'est pas reconnu par Picoreplayer avec un Raspberry Pi 4. Est par contre reconnu si on remplace le Raspberry Pi 4 par un Raspberry 3b ou 3b+.
Voir le fil de discussion: https://forums.slimdevices.com/showthread.php?115381-HifiBerry-Digi2-Pro
New Customer?
Create your accountNo products
Prices are tax included
By buying this product you get 5 loyalty points
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
This DIGI2 PRO board is only compatible with the first generation Raspberry Pi 4 (before 2022).
This board is of course still compatible with other Raspberry Pi's with the 40-pin header.
DIGI2 PRO V2.2 is available here.

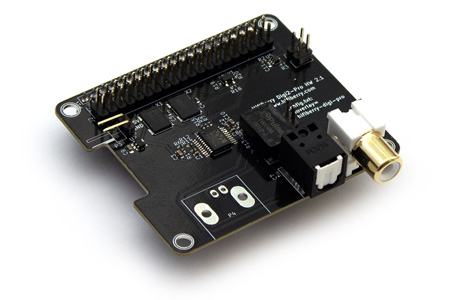

Digital Interface SPDIF for Raspberry Pi 24bit 192kHz
The HiFiBerry Digi2 Pro is a stereo SPDIF interface module designed to work with a Raspberry Pi. The assembly is very simple. In addition, the Digi2 Pro offers very good performance, including the integration of isolation on the output, low noise linear regulators or two low jitter clocks.
The module has an optical Toslink output and a coaxial output. A slot also allows to add a BNC output to solder. An extension connector also offers the possibility to add a DSP module (not supplied) in order to adapt the sound reproduction to your listening, your room and your equipment.
1 | GPIO 40 pins Input |
2 | 5V Supply voltage |
3 | DSP Connector |
4 | Isolation ground jumper |
5 | Optional BNC connector |
6 | Optical Toslink output |
7 | Coaxial output |
Specifications | |
---|---|
Product type | SPDIF Digital interface |
Input | GPIO 40 pins |
Outputs | 1x Coaxial 1x Optical Toslink |
Channel | Stereo (2) (Dolby Digital, DTS support) |
Supported sampling rates | PCM up to 24bit 192kHz |
General | |
---|---|
Dimensions | 5.5 x 6.5 x 1.5cm |
Weight | 25g |
Consumption | < 0.3W |
